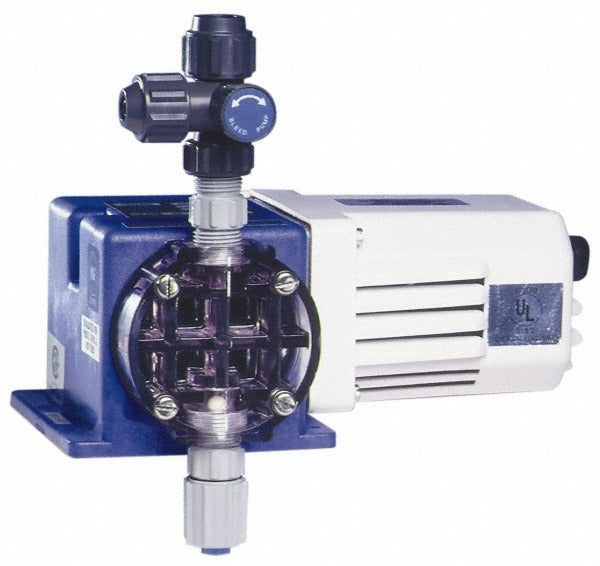

Pulsafeeder X015-XA-AAACXXX Diaphragm Metering Pump

Product Description

The PULSAFEEDER X015-XA-AAACXXX is a diaphragm metering pump designed for precise chemical dosing in water treatment, plumbing, and industrial fluid handling applications. It operates on 115 volts and delivers a maximum flow rate of 0.63 GPH against a maximum discharge pressure of 100 psi. The diaphragm design isolates the pumped fluid from the drive mechanism, reducing seal wear and supporting reliable long-term service with corrosive or reactive chemicals. Plumbing contractors, water treatment technicians, and pool and industrial service professionals are the typical installers of this type of pump.

This metering pump suits residential and light commercial chemical feed systems where accurate, repeatable dosing is required. Common applications include chlorine injection, pH adjustment chemical feed, and scale inhibitor dosing in potable water, wastewater, and pool or spa systems. Its compact footprint makes it suitable for installation in tight mechanical rooms or wall-mounted chemical feed panels. The unit measures 7.3 inches long by 8.8 inches wide by 7.5 inches high.

Key Features

• Diaphragm metering mechanism for accurate, repeatable chemical dosing
• Maximum flow rate of 0.63 GPH for low-volume precision feed applications
• Maximum discharge pressure of 100 psi for compatibility with pressurized systems
• 115-volt operation for standard single-phase electrical service
• Compact enclosure at 7.3 inches x 8.8 inches x 7.5 inches

Compatibility

Designed as an OEM-style replacement or direct-install diaphragm metering pump for chemical feed systems requiring 115-volt single-phase power, up to 0.63 GPH flow, and up to 100 psi discharge pressure.

Installation Notes

Installation should be performed by a licensed plumber or qualified water treatment technician familiar with chemical feed equipment. Shut off supply water and de-energize the circuit before making plumbing or electrical connections. Follow all applicable IPC and NEC requirements for chemical-resistant tubing, fittings, and branch circuit protection. Verify injection point compatibility with the chemical being dosed to prevent material degradation or unsafe reactions.
