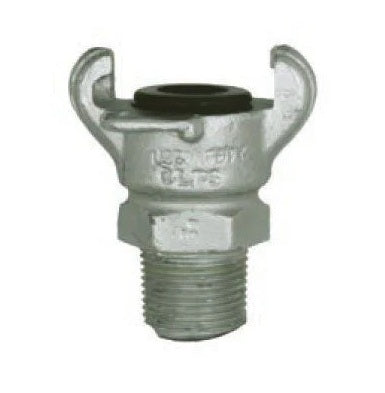

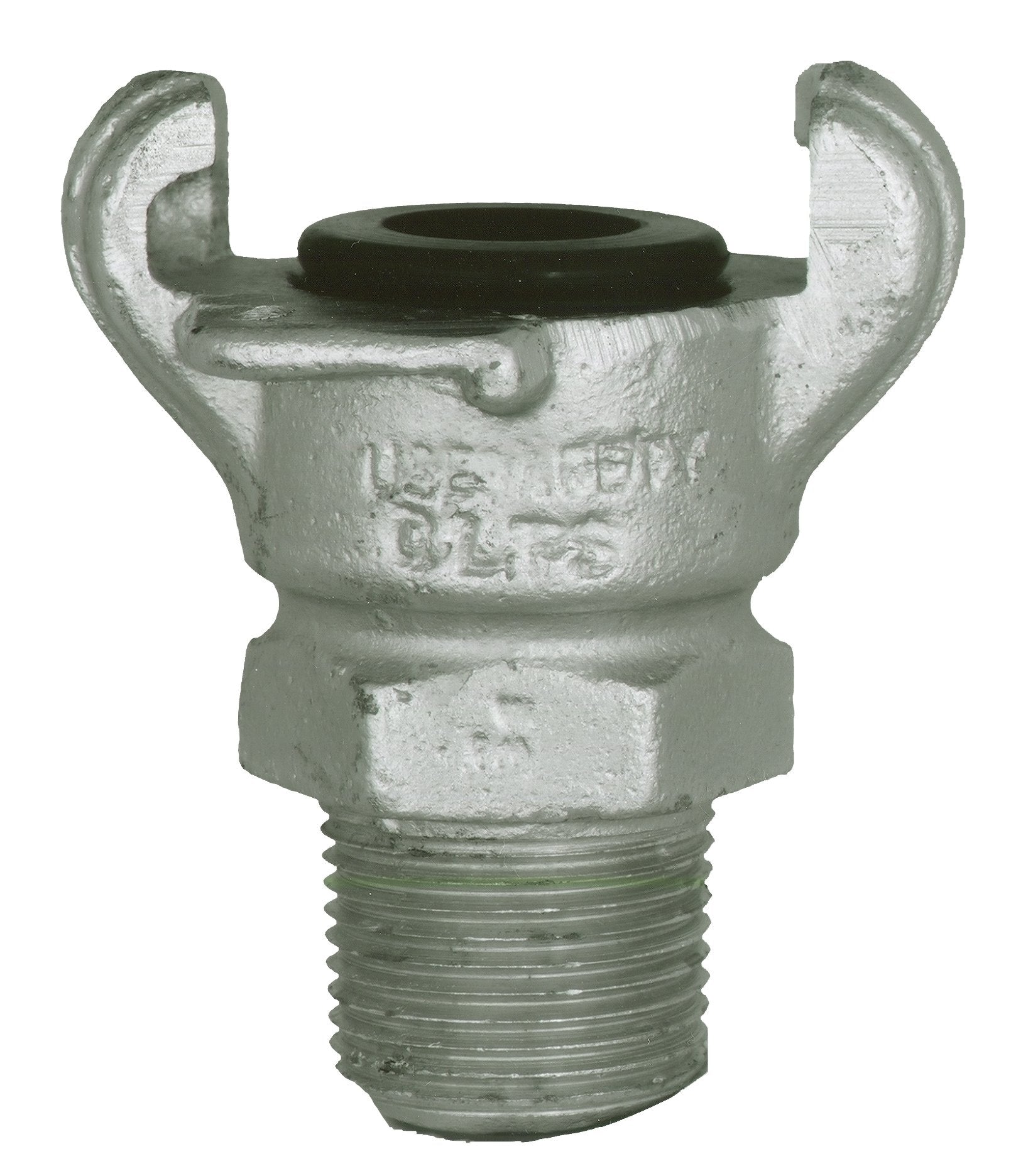

Pt Coupling 90000052 ucme series ductile iron twist-claw hose coupling 3/4 inches claw coupling x npt male

Product Description

The PT COUPLING 90000052 UCME Series Ductile Iron Twist-Claw Hose Coupling is a 3/4" claw coupling x NPT male. It features excellent abrasion and wear resistance, along with good strength and toughness characteristics. Ideal for use with sand, grout, cement, and other abrasives, it has a 150 psi maximum working pressure.

• Excellent abrasion and wear resistance
• Good strength and toughness characteristics
• Ideal for use with sand, grout, cement, and other abrasives

Product Highlights

The PT Coupling claw coupling is a sturdy and versatile pipe fitting with a 3/4-inch claw coupler connection on one end and a 3/4-inch MNPT connection on the other end.

Product Information

Standard Information

• Brand: PT COUPLING
• Manufacturer Part Number: 90000052
• Country of Origin: US

Technical Specifications

• Size: 3/4 Inch
• Brand: PT Coupling Company
• MPN: 90000052
• Product: Male NPT
• Model: UCME75
• PSI: 150 PSI
• Material: Plated Ductile Iron
• Note: Includes Safety Clip
• Nominal Size: 3/4 In
• Shape (Orientation): Straight
• Ends Configuration: 3/4in Male NPT, 2-Lug Chicago
• Connection Size 1: 3/4 Inch
• Connection Size 2: 3/4 Inch
• Connection Type 1: Claw Coupler
• Connection Type 2: MNPT
• Maximum Operating Pressure: 150 psi
• Fitting/Connector Type: Claw Coupling
• End Style: Claw Coupling x Male NPT
• Pressure Rating: 150 psi
