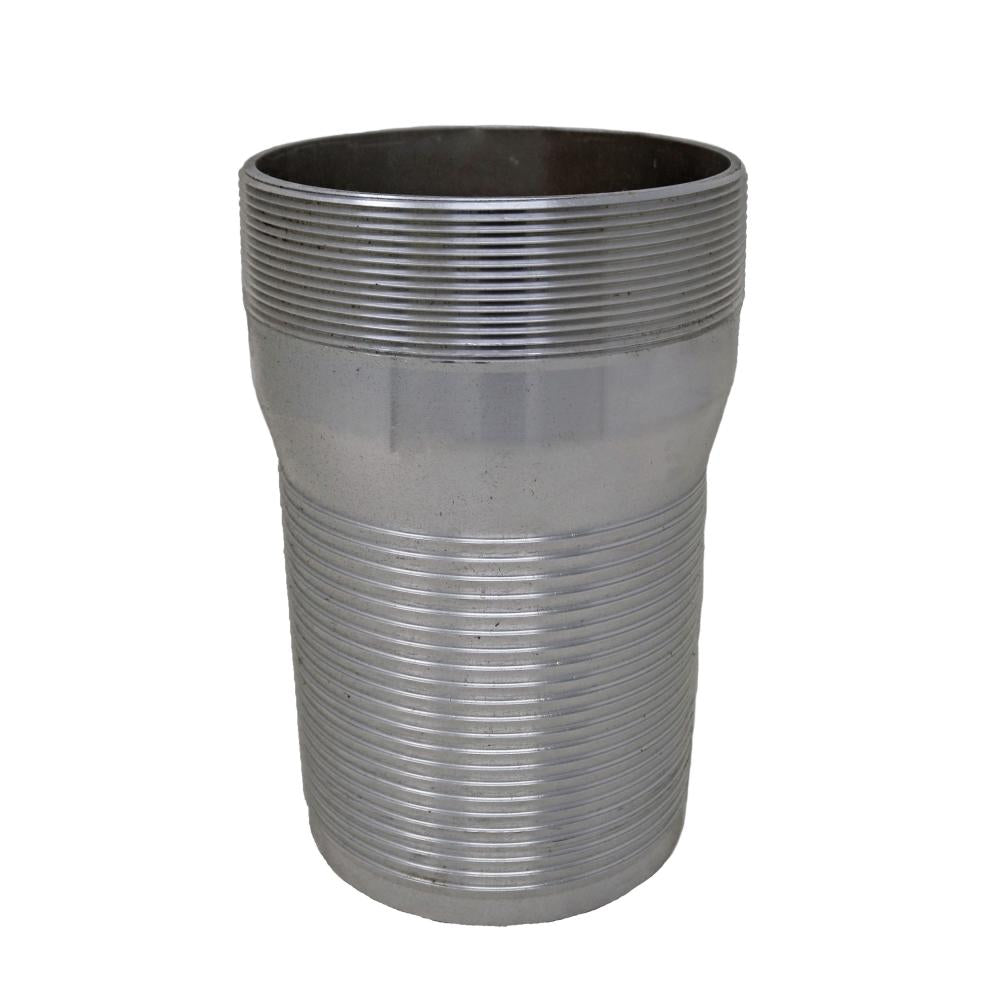

Pt Coupling 84640075 Combination Nipple 3/4 inches Hose Shank x NPT Male

Product Description

The PT COUPLING 84640075 combination nipple hose fitting is made of type 316 stainless steel and connects hose to threaded pipe conforming to the National Pipe Thread (NPT) standard for low-pressure discharge or suction service. The barbed fitting creates a tight seal on flexible or semi-rigid hose. It is suitable for use with water, hydraulic oil, coolants, gasoline, and petroleum products.

• Adapter for connecting pipes or fittings of different types
• Fitting connects to hose on one end and has an NPT male connector on the other
• Type 316 stainless steel for higher strength and greater corrosion resistance than type 304 stainless steel

Product Highlights

The PT Coupling combination nipple is excellent corrosion-resistant material that provides high strength at high temperatures. Ideal for use with salt water, waste water, and many chemicals.

Product Information

Standard Information

• Brand: PT COUPLING
• Manufacturer Part Number: 84640075
• Country of Origin: US

Technical Specifications

• Brand: PT Coupling
• Model / MPN: 84640075
• Size: 0.75 Inch
• Number of Items: 1.0
• Shape (Orientation): Straight
• Ends Configuration: 3/4in Hose Barb, 3/4in Male NPT
• Material(s): Stainless Steel
• MPN: 84640075
• Product: Combination Nipple
• Model: PTCN75
• Material: Stainless Steel
• Construction: Made in the U.S.A.
• Connection Size 1: 3/4 Inch
• Connection Size 2: 3/4 Inch
• Connection Type 1: Hose Shank
• Connection Type 2: MNPT
