Pt Coupling 1400430 Basic Standard Series Name 3 inches Coupler x NPT Female

Product Description

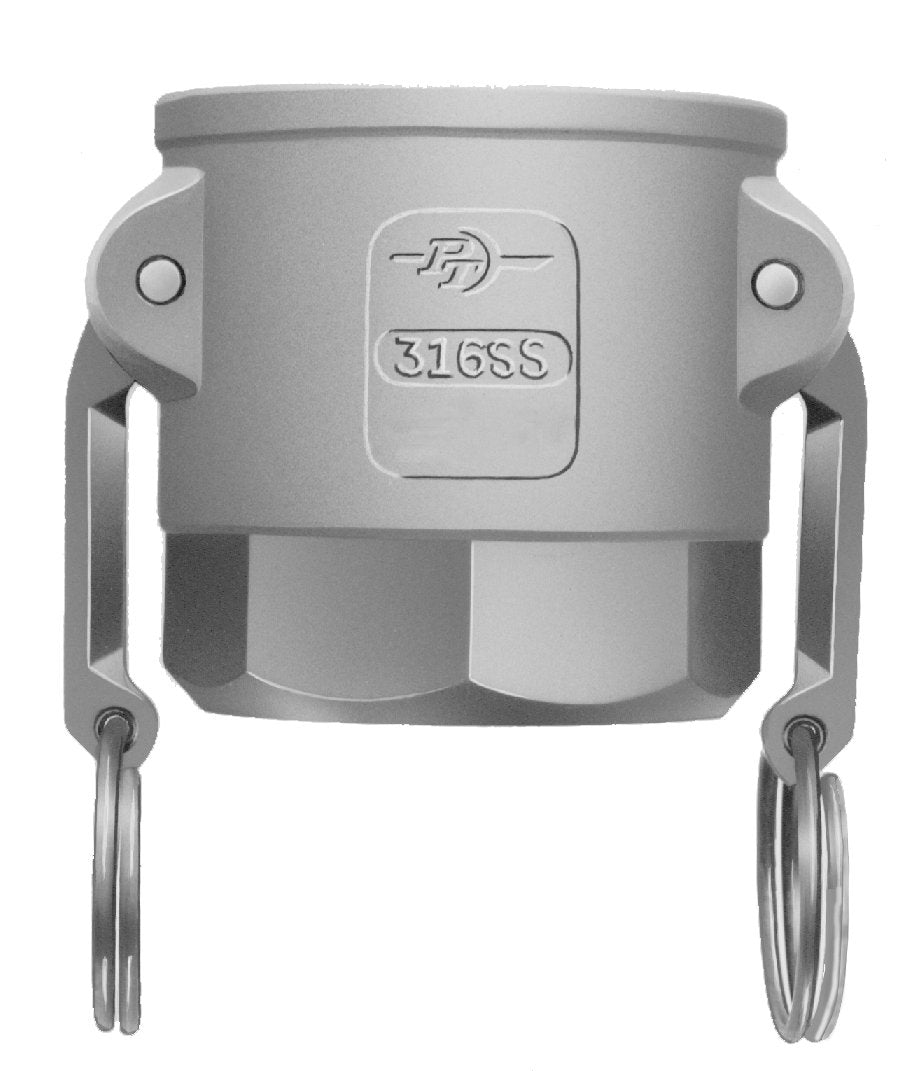

The PT COUPLING 1400430 Type D coupler features a stainless steel body with stainless steel cam arms, a buna-n gasket, and a female National Pipe Taper (NPT) threaded connection. The 316 stainless steel coupler body provides strength and resists corrosion. Complies with Commercial Item Description A-A-59326D for quick disconnect fittings.

• Cam-locking female coupler with gasket provides leak-tight connection to male cam and groove-style fitting
• Female NPT threaded connection
• 316 stainless steel body for strength and resistance to corrosion

Product Highlights

This coupler is suitable for use with salt water, waste water, chemicals, hydraulic oil, and coolants and used in applications such as fuel delivery, wine transfer, and chemical transfer.

Product Information

Standard Information

• Brand: PT COUPLING
• Manufacturer Part Number: 1400430
• Country of Origin: USA

Technical Specifications

• Fitting Type: Straight, Coupler
• Connection: 3" Coupler x NPT Female
• Material: 316 Stainless Steel
• Gasket: Buna-N (Buna Nitrile)
• Compliance: Commercial Item Description A-A-59326D
• Application: Fuel delivery, wine transfer, and chemical transfer
• Part Name: 30D
• Coupler Size: 3 in
• Thread (Female NPT): 3 in
• Manufacturer: PT Coupling
• Size: 3"
• Brand: PT Coupling Company
• MPN: 1400430
• Product: Part D
• Model: 30D
• Series: STA-LOK
• Shape (Orientation): Straight
• Cam Type: Type D
• Ends Configuration: 3in Female Cam & Groove, 3in Female NPT
• Material(s): 316 Stainless Steel
• Seal Material(s): Buna-N/Nitrile
• Vendor Number: 1400430
• Inner Diameter (ID): 2.88 inches
• Outer Diameter (OD): 5.46 inches
• Overall Length (OAL): 3.5 inches
• Extended Cam Arms Diameter: 9.56 inches
• Maximum operating pressure: 200 psi
• End A Diameter: 3 in
• Country of Origin: United States
• Nominal Size: 3 In
• End Connection 1: Cam and Groove
• End Connection 2: FNPT
• End Connections: Cam and Groove x FNPT
• Fitting Size 1: 3
• Fitting Size 2: 3
• Fitting Sizes: 3 in
• Material Type: 316 SS
• Origin: Domestic
• Type: P1400430
