Pt Coupling 1400420 Basic Standard Series Cam and Groove Hose Fitting 2 inches Coupler x NPT Female

Product Description

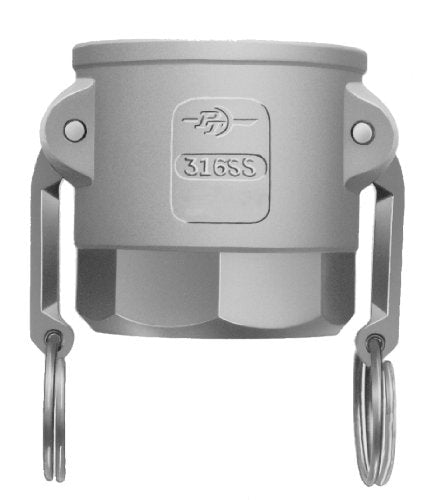

The PT COUPLING 1400420 Type D coupler features a stainless steel body with stainless steel cam arms, a buna-n gasket, and a female National Pipe Taper (NPT) threaded connection. The 316 stainless steel coupler body provides strength and resists corrosion. This cam and groove coupler complies with Commercial Item Description A-A-59326D for quick disconnect fittings.

• Cam-locking female coupler with gasket provides leak-tight connection to male cam and groove-style fitting
• Female NPT threaded connection
• 316 stainless steel body for strength and resistance to corrosion

Product Highlights

This coupler is suitable for use with salt water, waste water, chemicals, hydraulic oil, and coolants. It allows for quick connecting and disconnecting by means of the camming action.

Product Information

Standard Information

• Brand: PT COUPLING
• Manufacturer Part Number: 1400420
• Country of Origin: USA

Technical Specifications

• Brand: PT Coupling
• Size: 2 Inch
• Number of Items: 1.0
• Part Name: 20D
• Material: Stainless Steel
• Coupler Size: 2 in
• Thread (Female NPT): 2 in
• Manufacturer: PT Coupling
• Shape (Orientation): Straight
• Cam Type: Type D
• Ends Configuration: 2in Female Cam & Groove, 2in Female NPT
• Seal Material(s): Buna-N/Nitrile
• MODEL: 1400420
• Type: Part D
• Vendor Number: 1400420
• Inner Diameter (ID): 1.88 inches
• Outer Diameter (OD): 3.94 inches
• Overall Length (OAL): 3.1 inches
• Extended Cam Arms Diameter: 7.54 inches
• Maximum operating pressure: 250 psi
• Fitting Shape: Type D
• Connection Size 1: 2 in
• Connection Size 2: 2 in
• Pressure Rating: 250 psi
• Fitting Type: Coupler
• Connection 1: 2 in Fitting
• Connection 2: 2 in NPT
• Connection Type 1: Fitting
• Connection Type 2: NPT
• Gender 1: Female
• Gender 2: Female
• Nominal Size: 2 In
