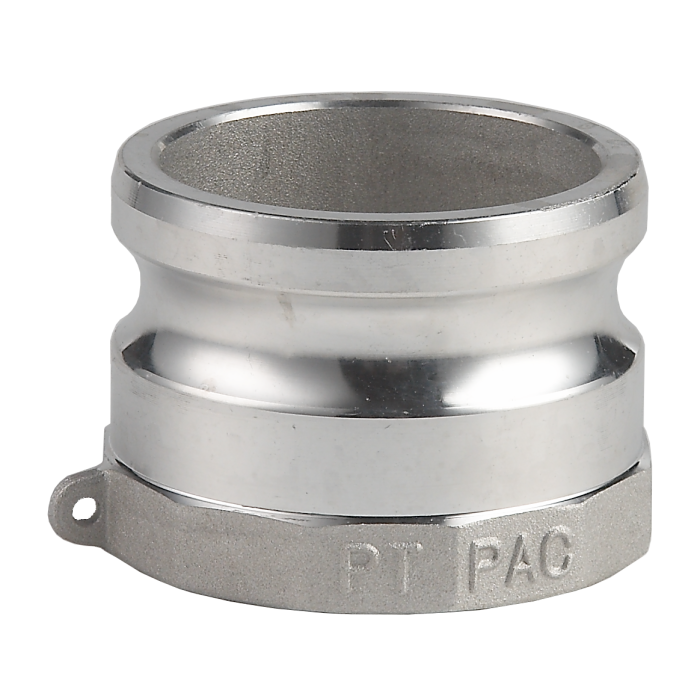

Pt Coupling 1000107 Basic Standard Series 07A Aluminum Cam and Groove Hose Fitting 3/4 inches Adapter x NPT Female

Product Description

The PT COUPLING 1000107 Basic Standard Series 07A is an aluminum cam and groove hose fitting with a 3/4" adapter x NPT female connection. These quick connect/disconnect couplings utilize a camming action, allowing for pipe and hose connections without hand tools. It is suitable for use with water, hydraulic oil, coolants, gasoline, and petroleum products.

• Quick connecting and disconnecting
• Camming action allows pipe and hose connections without hand tools
• Meets Commercial Item Description A-A-59326C

Product Highlights

This aluminum cam and groove hose fitting ensures efficient fluid transfer with reliable connections for various applications.

Product Information

Standard Information

• Brand: PT COUPLING
• Manufacturer Part Number: 1000107
• Country of Origin: USA

Technical Specifications

• Brand: PT Coupling
• Material: Aluminum
• Size: 3/4 Inch
• Product Type: HOSE_PIPE_FITTING
• Part Name: 07A ALUM
• Adapter Size: 3/4 in
• Thread (Female NPT): 3/4 in
• Manufacturer: PT Coupling
• Shape (Orientation): Straight
• Cam Type: Type A
• Ends Configuration: 3/4in Male Cam & Groove, 3/4in Female NPT
• Nominal Size: 3/4 in
• Type: Part A
• Vendor Number: CF1000107
• Inner Diameter (ID): 0.75 inches
• Overall Length (OAL): 1.62 inches
• Maximum operating pressure: 250 psi
• Fitting Shape: Type A
• Connection Size 1: 3/4 in
• Connection Size 2: 3/4 in
• Pressure Rating: 250 psi
• Fitting Type: Adapter
• Temperature Rating: -150 deg F
• Connection 1: 3/4 in Fitting
• Connection 2: 3/4 in NPT
• Connection Type 1: Fitting
• Connection Type 2: NPT
• Gender 2: Female
• Fitting/Connector Type: Adapter
• End Style: Male Adapter x Female Thread
• MPN: A-75
• Metal: Aluminum
