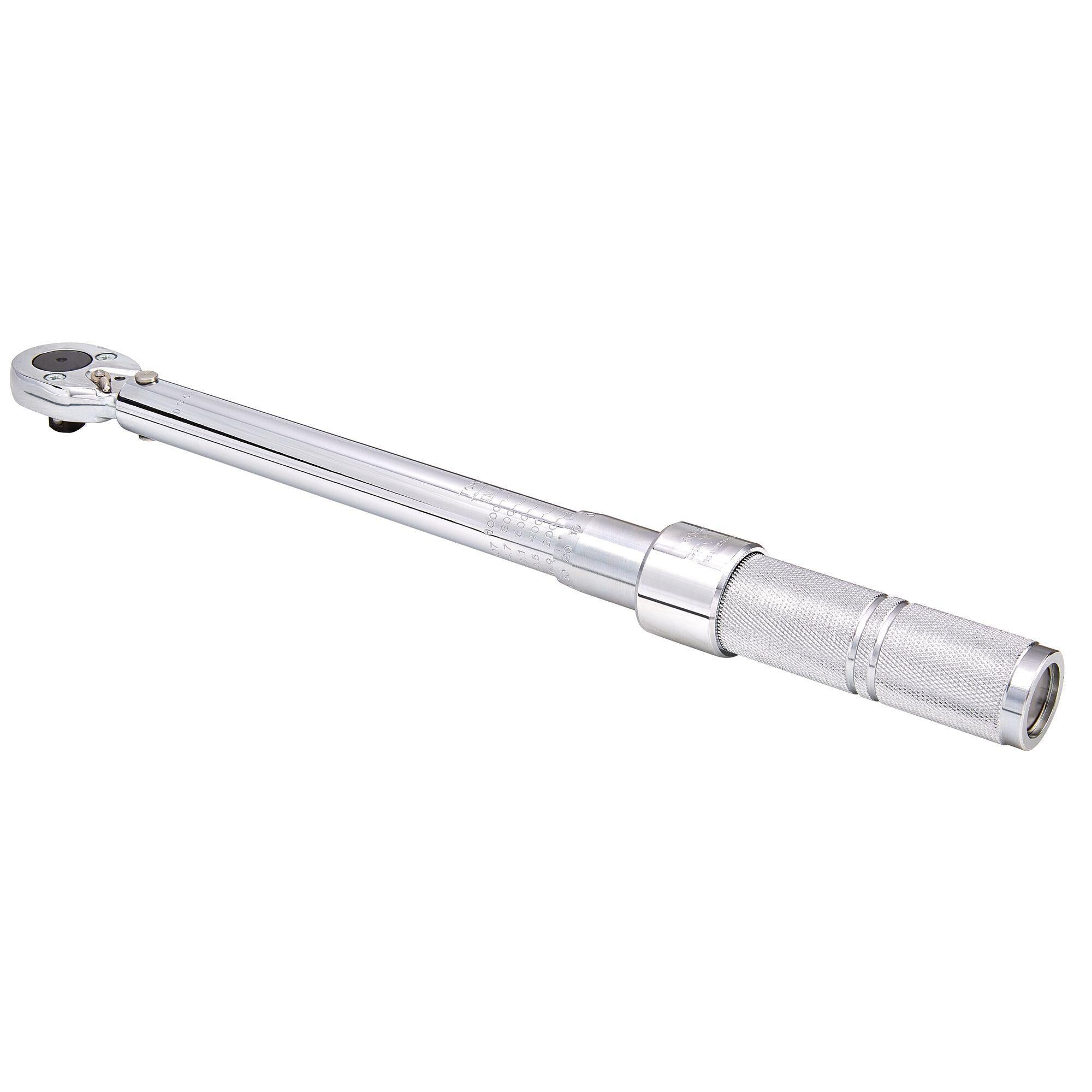

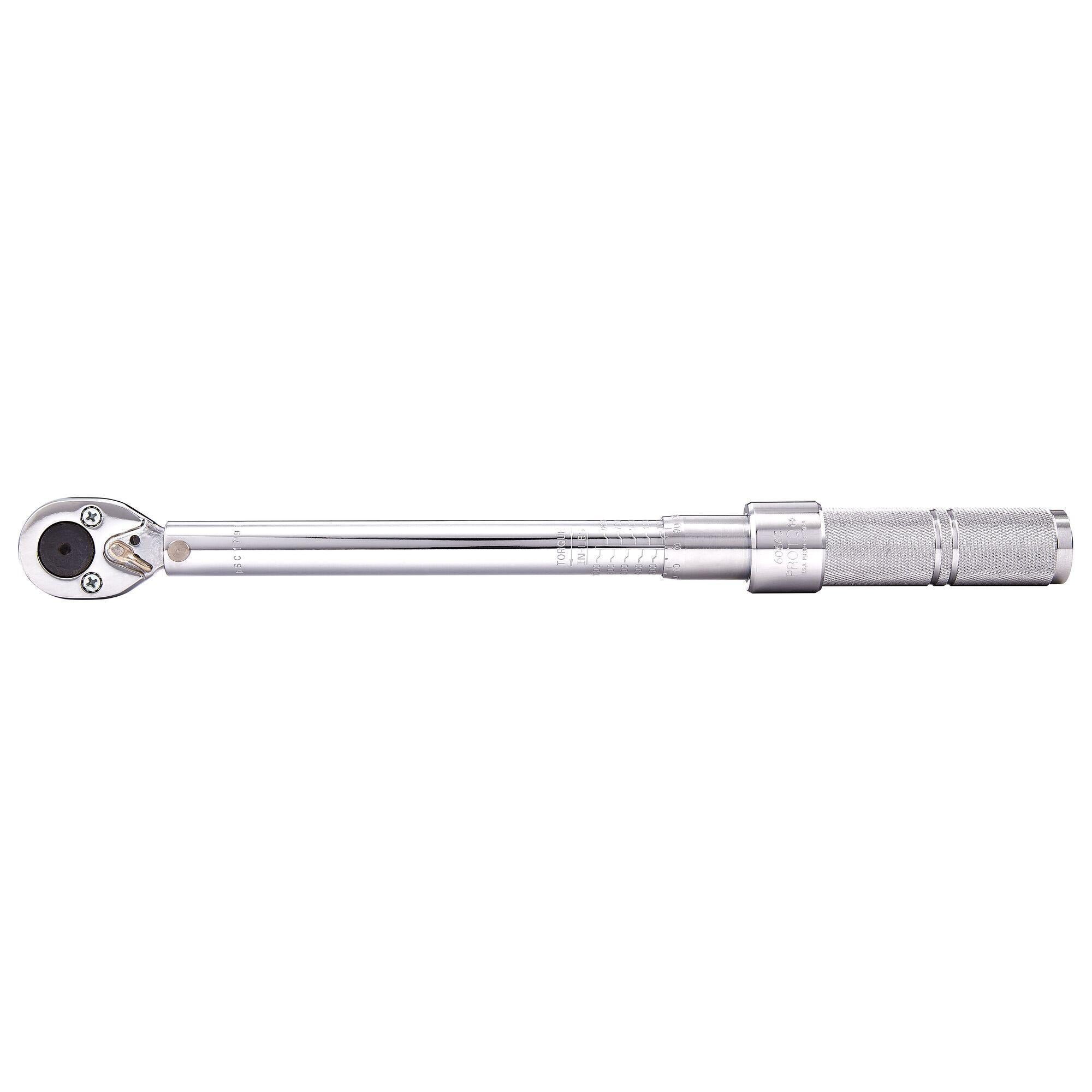

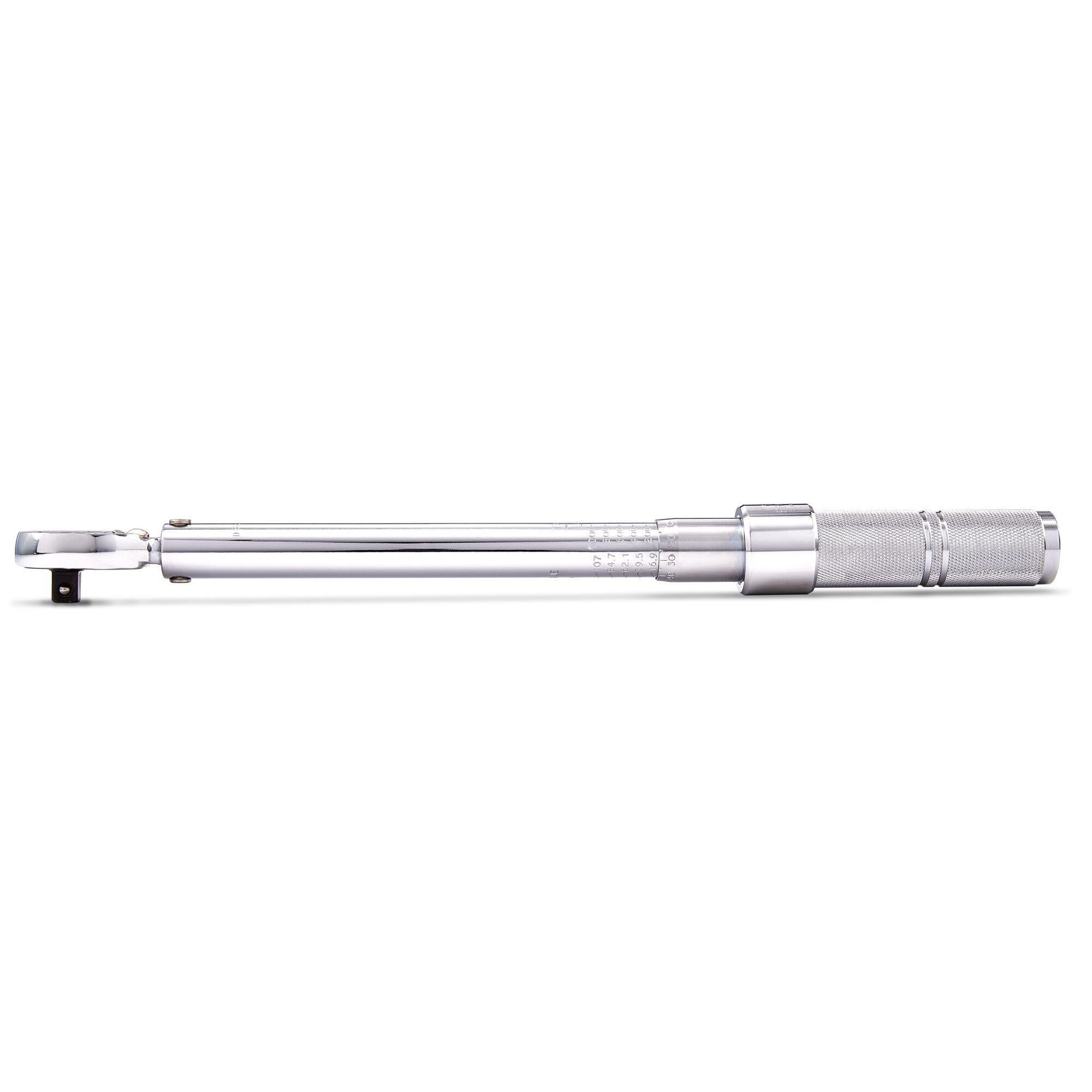

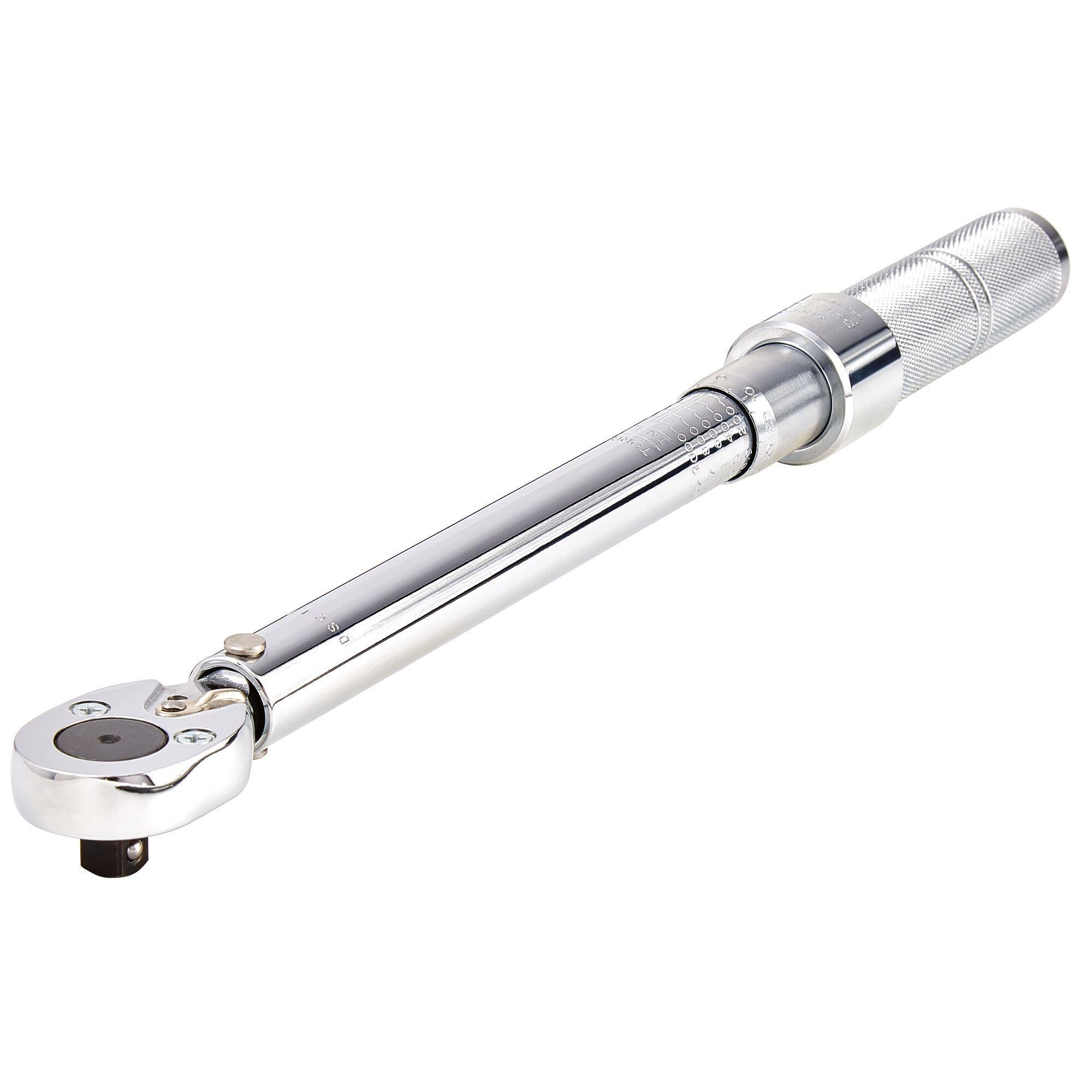

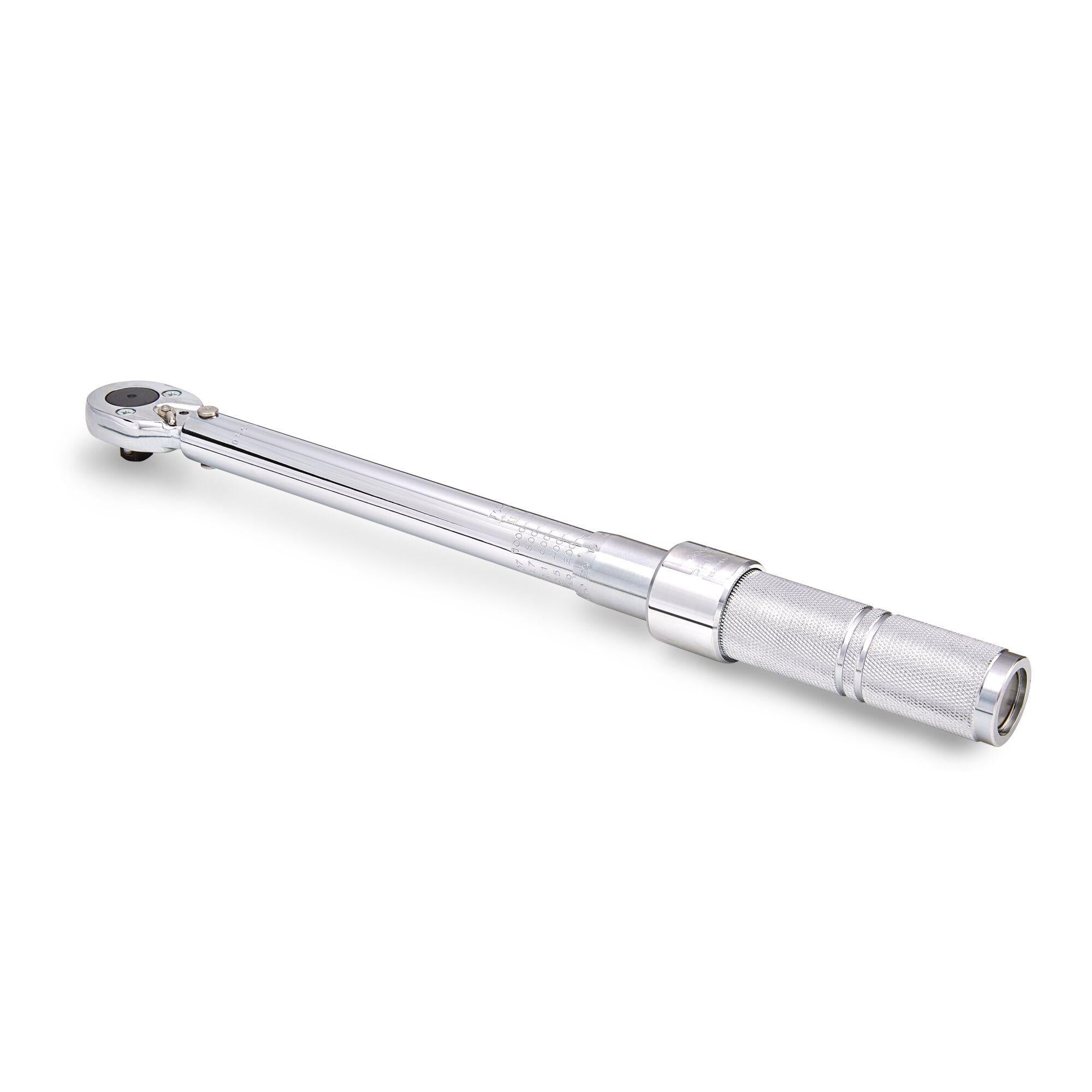

Proto STAPR-J6066C C Series Micrometer Torque Wrench 3/8 in Drive 200 to 1000 in-lb

Product Description

The Proto STAPR-J6066C C Series Micrometer Torque Wrench features a drive size of three-eighths inches. It is capable of measuring a torque range from two hundred to one thousand inch-pounds. This tool includes a ratcheting head and offers graduations of five inch-pounds.

• Torque Range: 200 to 1000 in-lb
• Ratchet Head Design
• Automatic Reset Feature

Product Highlights

This tool is designed for precision in both clockwise and counterclockwise directions. The audible click indicator provides a clear signal when the set torque is reached.

Product Information

Standard Information

• Brand: Proto
• MPN: STAPR-J6066C

Technical Specifications

• Accuracy: +/-3% CW, +/-6% CCW
• Finish: Full Polished
• Material: Steel
• Handle Type: Knurled/Screw-On End Cap
• Indicator Type: Audible Click
• Overall Length: 15-1/2 in
• Graduations: 5 in-lb
• Minimum Number of Cycles: 50000
• Drive Size: 3/8 in
• Rotation Type: CW/CCW
• Head Type: Ratcheting
• Series: C Series
• Setting: Automatic Reset
• Specifications Met: ASME B107.300-2010, TO33K6-4-2193-1
• Torque Range: 200 to 1000 in-lb
