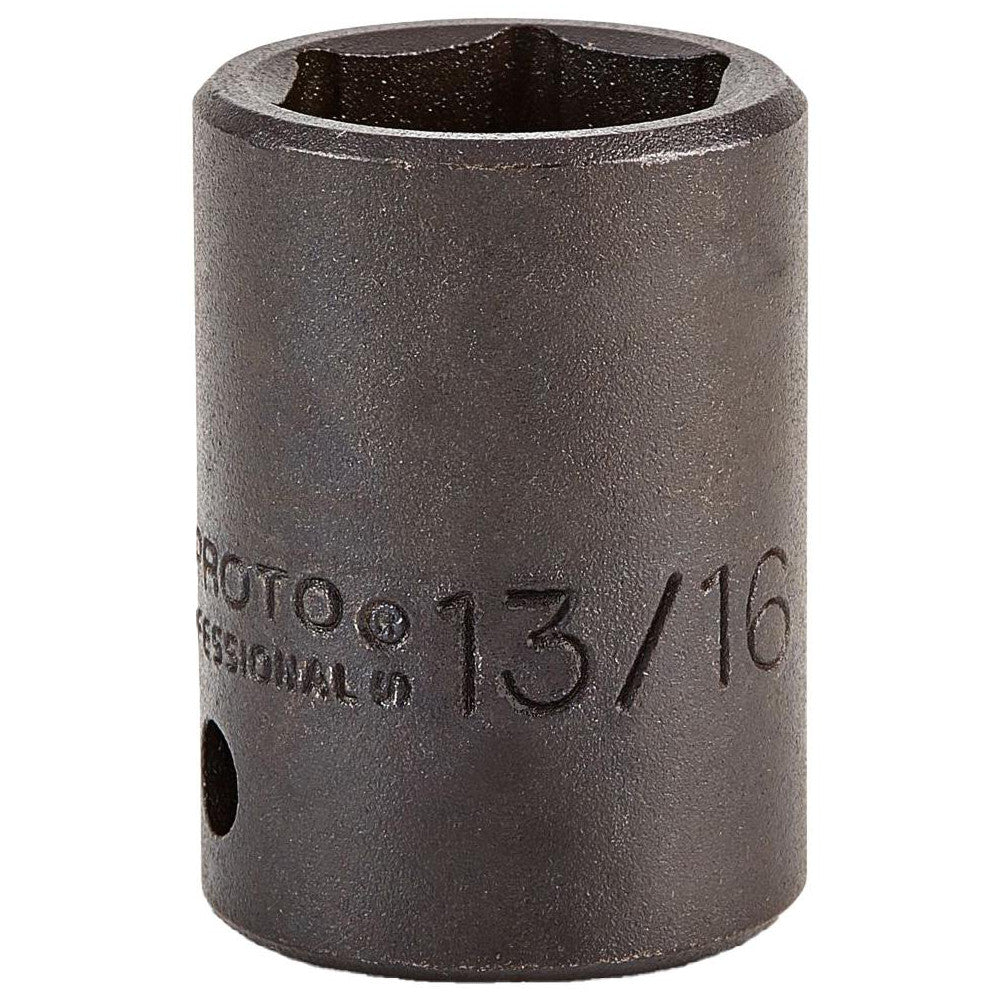

Proto J7426H 1/2 Inch Drive Impact Socket 13/16 Inch 6 Point

Product Description

The PROTO J7426H is a 1/2 inch drive impact socket with a 13/16 inch, 6-point opening. Its TorquePlus internal design minimizes fastener rounding and extends fastener life, making it ideal for stubborn, damaged, or rusted fasteners. This high-performance drive configuration ensures quick and easy socket engagement to the fastener flats, not the corners, enhancing efficiency and preventing slippage. Constructed from forged alloy steel with a black oxide finish, it is impact rated for industrial use.

• TorquePlus internal design minimizes fastener rounding and extends fastener life.
• Ideal for use on stubborn, damaged, or rusted fasteners and those made from soft materials.
• High-performance drive configuration allows quick and easy socket engagement to fastener flats.

Product Highlights

Features a TorquePlus design for enhanced fastener engagement and durability, suitable for industrial applications.

Product Information

Standard Information

• Brand: PROTO
• Manufacturer Part Number: J7426H
• Country of Origin: US

Technical Specifications

• MPN: J7426H
• Manufacturer: Stanley Proto
• Material: Forged Alloy Steel
• Drive Size: 1/2 in
• Drive Type: Square
• Number of Points: 6
• Socket Size: 13/16 in
• Overall Length: 1 5/8 in
• Finish: Black Oxide
• Type: Impact Socket
• Applications: Industrial
• Measuring System: SAE
• Locking Type: Pin
• Head Width: 1 13/64 in (drive side); 1 13/64 in (opening side)
• Tip Type: Box
• UNSPSC: 27111704
• Country of Origin: US
• Socket Depth: Standard
• Impact Rated: Yes
• Standards: ASME B107.110-2012; SAE AS4984A
• Compatible Fastener Range: 0.5 inches
• Compatible Fastener Type: Bolts, Screws, Studs
• Opening Depth: 11/16 in
• Drive End Width: 1-13/64 in
• Socket End Width: 1-13/64 in
• Bolt Clearance Depth: 31/32 in
• Tether Capable: No
• Non-magnetic: No
• Non-sparking: No
