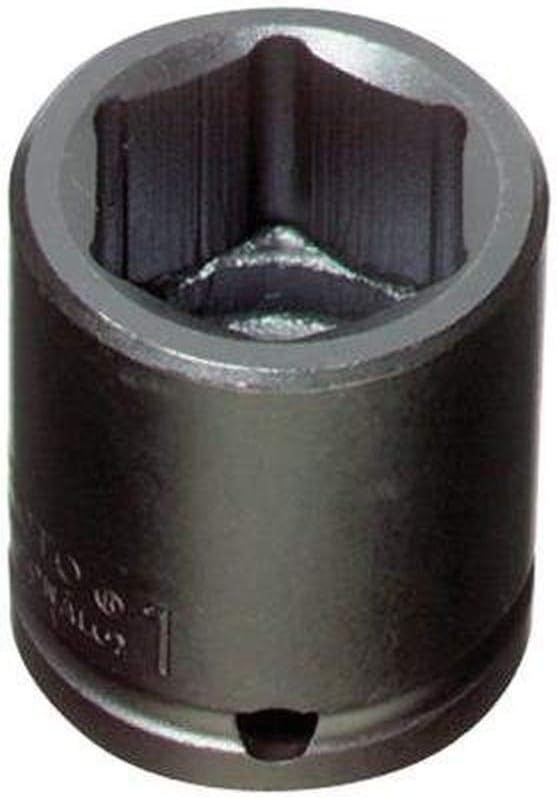

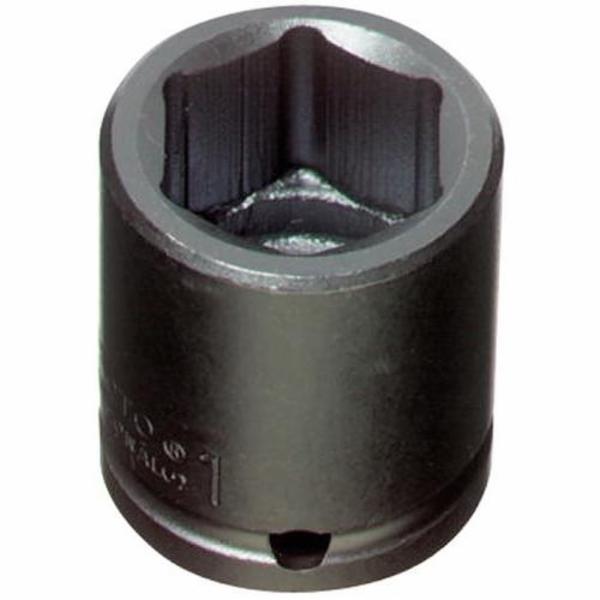

Proto J7422H 1/2 inches Drive Impact Socket 11/16 inches - 6 Point

Product Description

The PROTO J7422H impact socket is easy to use and has a 1/2" drive. It features a 6 Point 11/16" configuration. The TorquePlus internal design minimizes fastener rounding and extends fastener life. Ideal for use on stubborn or damaged fasteners and also on fasteners made from soft materials.

• Radius-corner socket design engages flats for better grip
• Improves the ability to turn worn or rounded fasteners
• Made from high alloy steel for greater strength and durability

Product Highlights

This impact socket is designed for use on stubborn or damaged fasteners and those made from soft materials.

Product Information

Standard Information

• Brand: PROTO
• Manufacturer Part Number: J7422H
• Country of Origin: US

Technical Specifications

• Material: Forged Alloy Steel
• Included Components: 1/2" Drive Impact Socket 11/16" - 6 Point
• Applications: Industrial
• Drive Size [Nom]: 1/2 in
• Drive Type: Square
• Finish: Black Oxide
• Head Width [Nom]: 1 1/32 in (drive side); 1 1/32 in (opening side)
• Measuring System: Inch
• No. of Points: 6
• Opening Size [Nom]: 11/16 in
• Overall Length [Nom]: 1 1/2 in
• Socket Length: 1 1/2 in
• Type: Impact Socket
• Brand: Proto
• Opening Size: 11/16 in
• Package Quantity: 1 each
• Opening Configuration: 6 Point
• Drive Size: 1/2 in
• Length: 1-1/2"
• Point Size: 6
• Socket Size: 11/16"
• Units of Measurement: Standard (SAE)
• Bolt Clearance Depth: 27/32 in
• Drive End Width: 1-1/32 in
• Socket End Width: 1-1/32 in
• Number of Points: 6
• Impact Rated: Yes
• Measurement System: Imperial
• Overall Length: 1-1/2 in
• Opening Depth: 1/2 in
