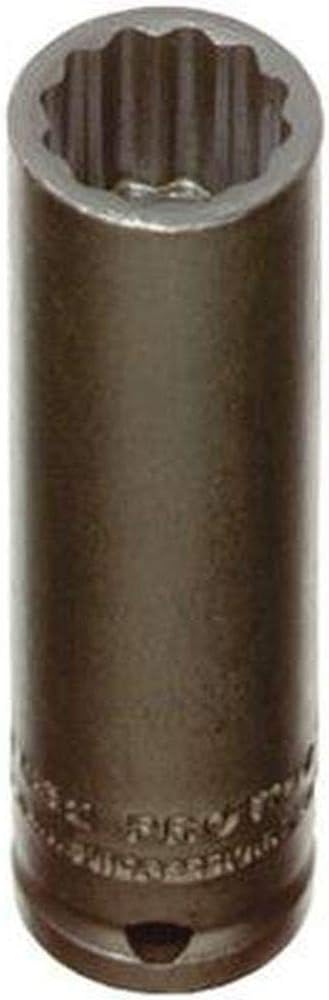

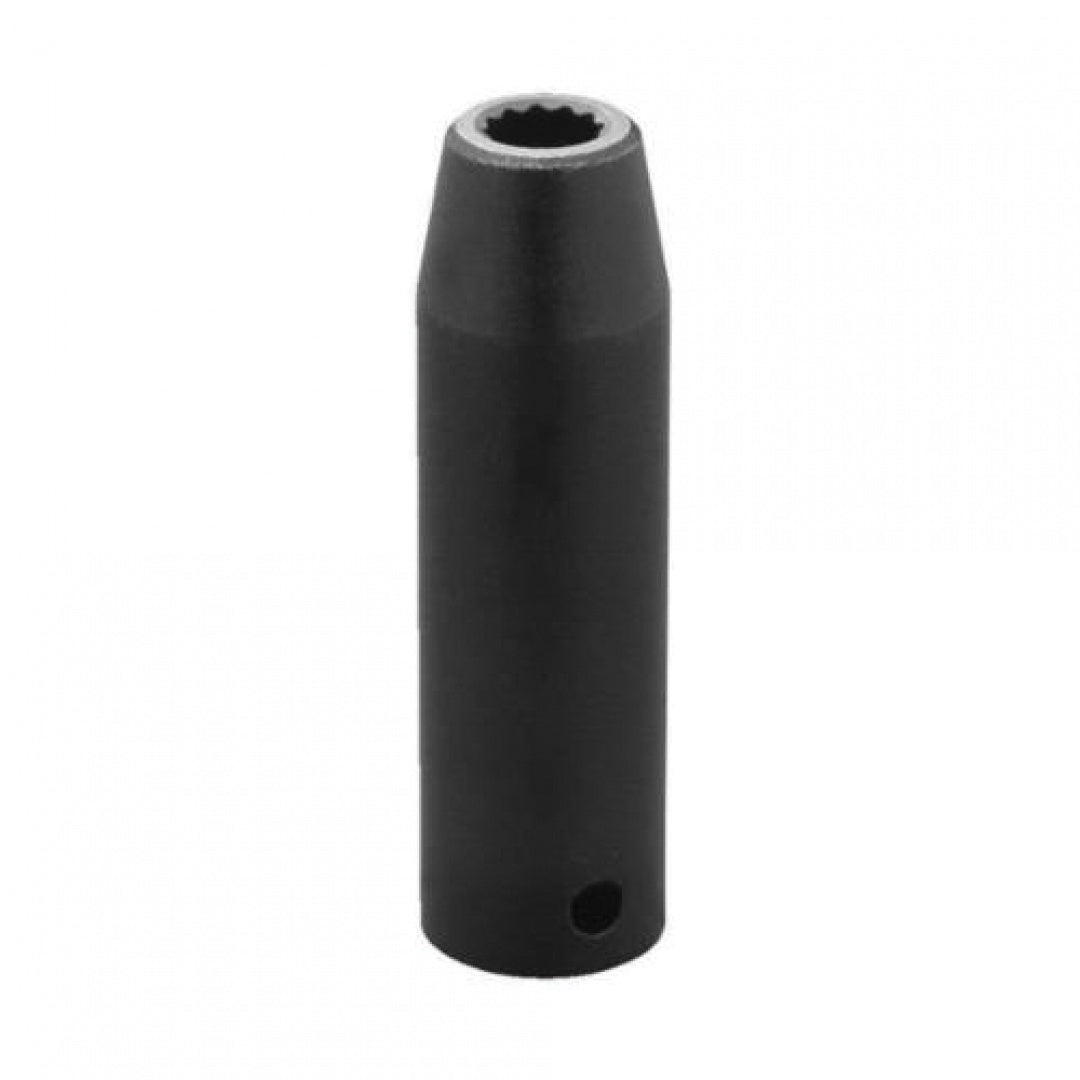

Proto J7320 1/2 inches Drive Deep Impact Socket 5/8 inches - 12 Point

Product Description

The PROTO J7320 deep impact socket has a 1/2" drive and a 5/8" opening. The TorquePlus internal design minimizes fastener rounding and extends fastener life. Proto impact sockets are ideal for use on stubborn or damaged fasteners, and fasteners made from soft materials. Has a 12 point configuration.

• Deep Impact Socket
• 12 Point design
• TorquePlus design allows for quick and easy socket engagement

Product Highlights

The Proto J7320 impact socket is designed for use with impact tools with a 1/2" drive. It is suitable for use on stubborn or damaged fasteners.

Product Information

Standard Information

• Brand: PROTO
• Manufacturer Part Number: J7320
• Country of Origin: US

Technical Specifications

• Item Model Number: J7320
• Part Number: J7320
• Drive Size [Nom]: 1/2 in
• Drive Type: Square
• Finish: Black Oxide
• Head Width [Nom]: 1 in (opening side); 1 in (drive side)
• Locking Type: Pin
• Material: Forged Alloy Steel
• Measuring System: Inch
• No. of Points: 12
• Opening Size [Nom]: 5/8 in
• Overall Length [Nom]: 3 1/4 in
• Measurement Type: SAE
• Socket Shape: 12-Point
• Socket Size: 5/8 in
• Socket Depth: Deep
• Tether Ready: Not Tether Capable
• Impact Rated: Impact Rated
• Standards: ASME B107.110-2012
• Drive Size: 1/2 in
• Opening Size: 5/8 in
• Opening Configuration: 12 Point
• Socket Type: Impact
• System of Measurement: SAE
• Surface Finish: Black Oxide
• Bolt Clearance Depth: 2-5/8 in
• Drive End Width: 1 in
• Opening Depth: 9/16 in
• Overall Length: 3-1/4 in
• Socket End Width: 1 in
• Type: Deep Length
• Number of Points: 12
