Product Description

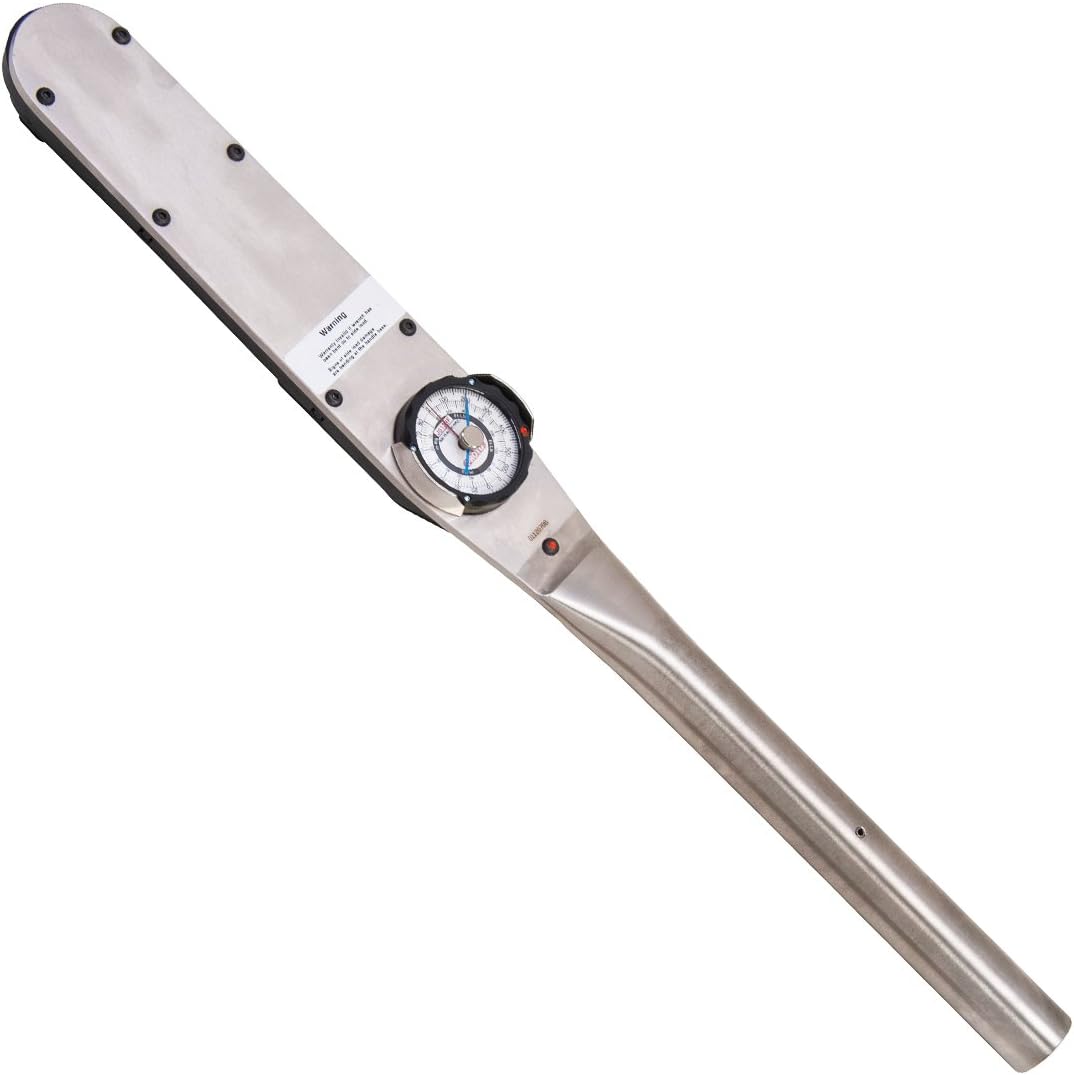

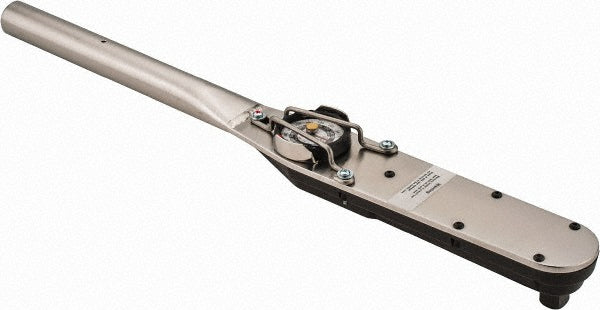

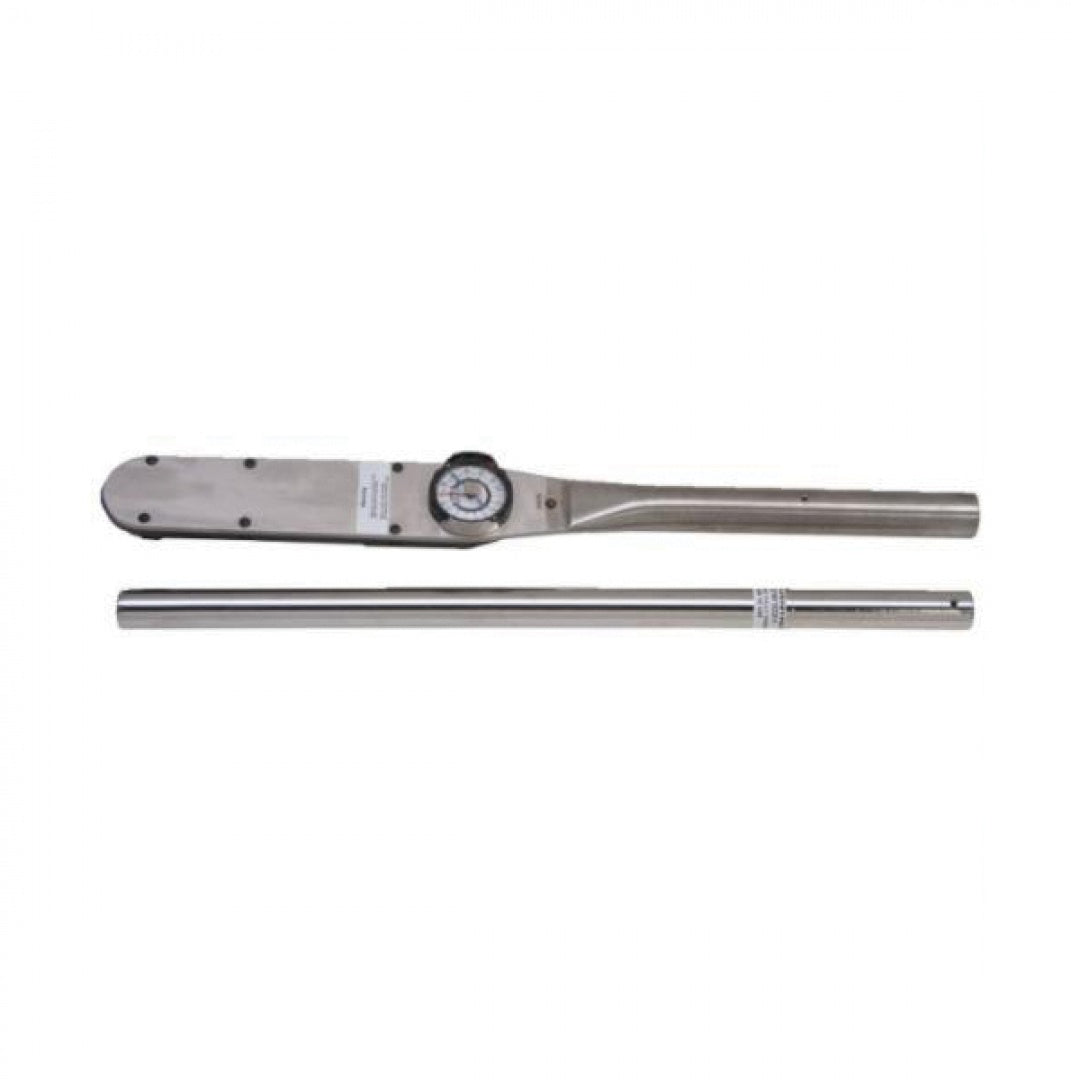

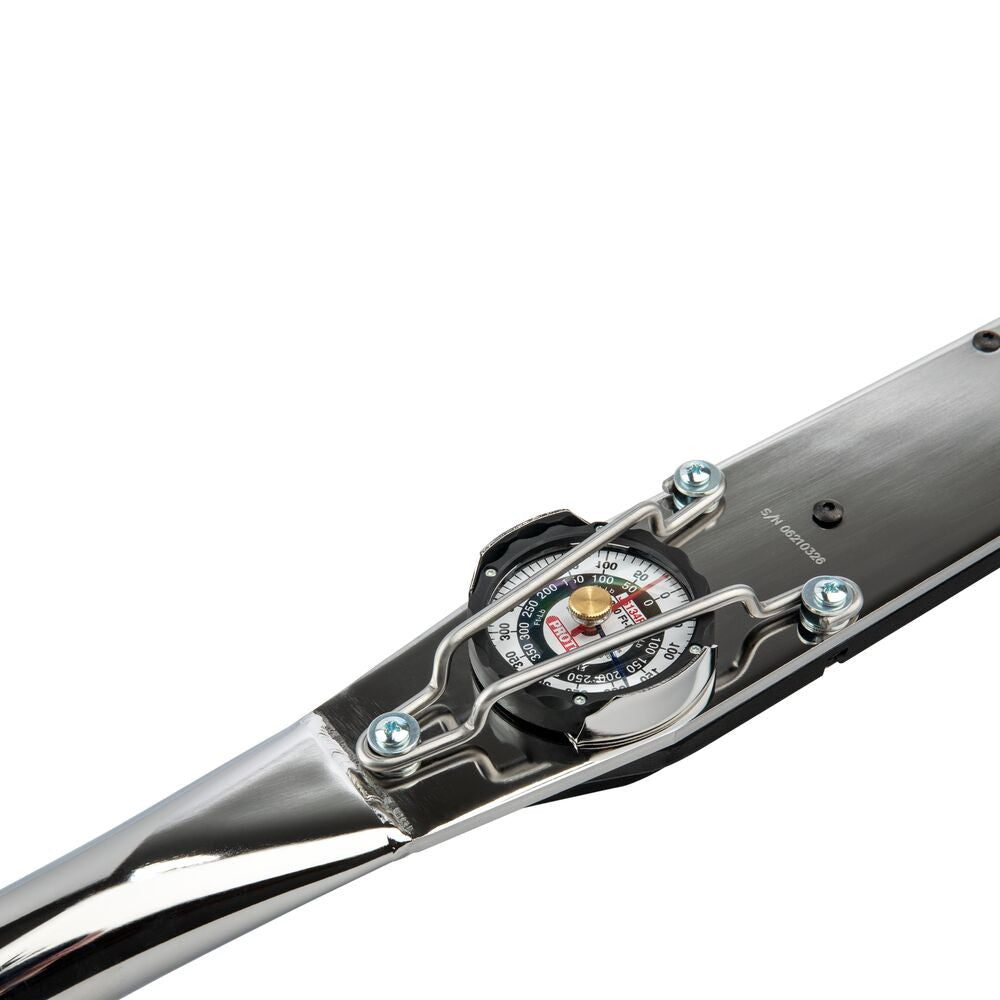

The PROTO J6134F 3/4" Drive Dial Torque Wrench measures torque with an easy-to-read dial. It measures foot-pounds in 10 ft-lb increments. It has a +/-4% CW/CCW accuracy and a memory needle reset. The wrench has a primary scale range of 0 to 350 ft-lb and can be used on both inch and metric fasteners.
- Easy-to-read dial measures foot-pounds in 10 ft-lb increments
- +/-4% CW/CCW accuracy
- Memory needle reset
Product Highlights
This dial torque wrench is perfect for any project that requires torque control. It has a 3/4" drive size and an overall length of 27 7/8 in.
Product Information
Standard Information
-
Brand: PROTO
-
Manufacturer Part Number: J6134F
-
Country of Origin: US
Technical Specifications
-
Color: Multi
-
Finish: Powder Coated
-
Material: Alloy Steel
-
Head Style: Fixed Square
-
Finish Type: Powder Coated
-
Number of Handles: 1
-
Measurement System: metric, inch
-
Batteries Required?: No
-
Included Components: 3/4" Drive Dial Torque Wrench 70-350 ft-lbs
-
Item Model Number: J6134F
-
Part Number: J6134F
-
Size: One Size
-
Drive Size [Nom]: 3/4 in
-
Drive Type: Male Square
-

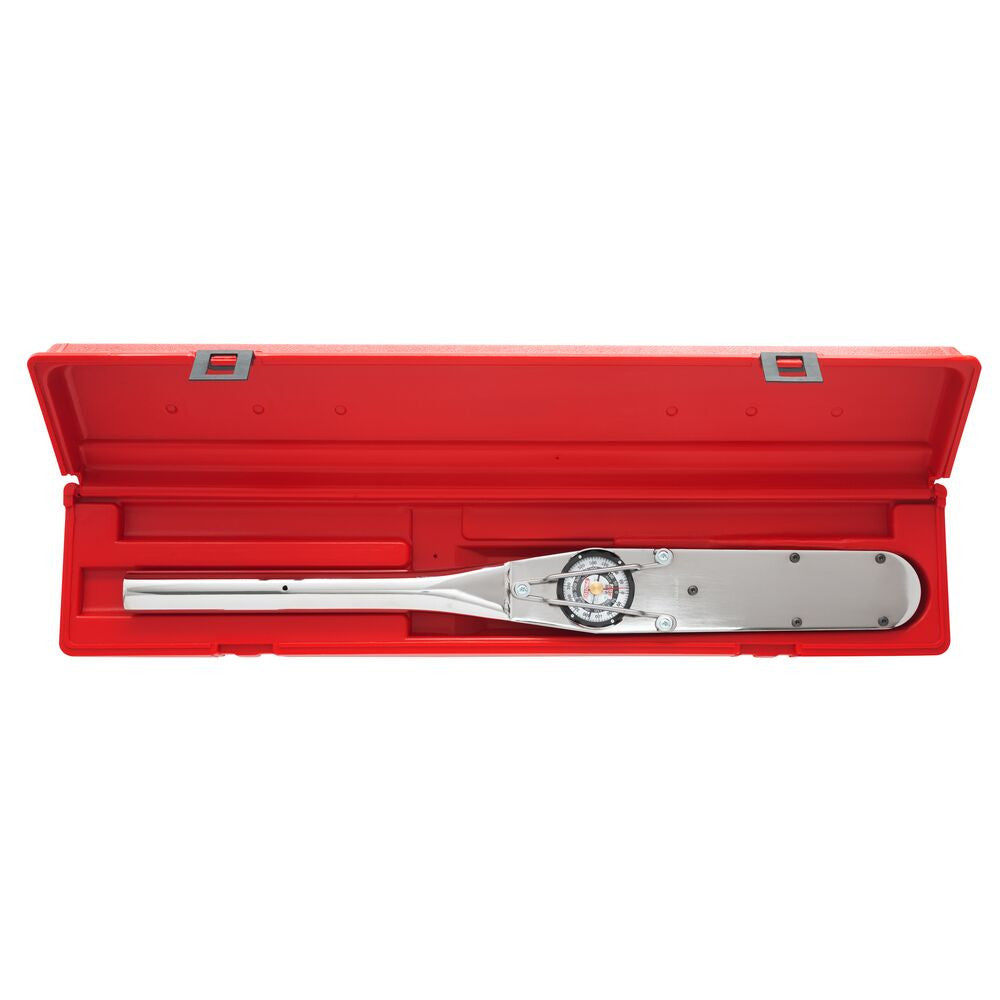

Includes: (1) Blow Molded Box
-
Locking Type: Ball
-
Measuring System: Inch/Metric
-
Overall Length [Nom]: 27 7/8 in
-
Torque [Max]: 350 ft lb
-
Torque [Min]: 0.00 ft lb
-
Torque Setting: Dial
-
Accuracy: +/-4% CW/CCW @ 20 to 100% Of Full Scale
-
Rotation: Clockwise and Counterclockwise
-
Head Type: Standard
-
Insulated: No
-
Standards: ASME B107.14M, ISO 6789, JIS B4650
-
Ratcheting: Yes
-
Reset Type: Memory Needle
-
Handle Type: Cushion Grip
-
Nonsparking: No
-
Handle Color: Silver
-
Tether Style: Tether Capable
-
Torque Range: 0 to 350 ft-lb
-
Head Material: Alloy Steel
-
Memory Needle: Yes
-
Overall Length: 27 7/8 in
-
Tether Capable: Tether Capable
-
Handle Material: Alloy Steel
-
Measurement Type: SAE
-
Extension Handles: No
-
Torque Increments: 10 ft-lb
-
Clockwise Accuracy: +/-4%
-
Corrosion Resistant: Yes
-
Primary Scale Range: 0 to 350 ft-lb
-
Torque Adjustability: Adjustable
-
Extended Data Testing: Yes, NIST
-
Min. Number of Cycles: 5,500
-
Secondary Scale Range: 0 to 475 Nm
-
Torque Measurement Type: Foot-Pound
-
Primary Scale Increments: 10 ft-lb
-
Counterclockwise Accuracy: +/-4%
-
Visual/Audible Indicators: Visual, Audible
-
Secondary Scale Increments: 0.5 m-kg
-
Primary Scale Maximum Torque: 350 ft-lb
-
Primary Scale Minimum Torque: 0 ft-lb
-
Calibration Certificate Included: Yes
-
Country of Origin (subject to change): United States
-
UNSPSC: 27111715
-
Jaw Capacity: 3/4 in
-
Product Type: Dial Torque Wrench
-
Wrench Type: Dial Torque Wrench
-
Drive Size: 3/4"
-
Minimum Torque (Nm): 4.000
-
Maximum Torque (Ft/Lb): 350.0
-
Maximum Torque (Nm): 406.000
-
Overall Length (Inch): 27-7/8
-
Brand: Proto
