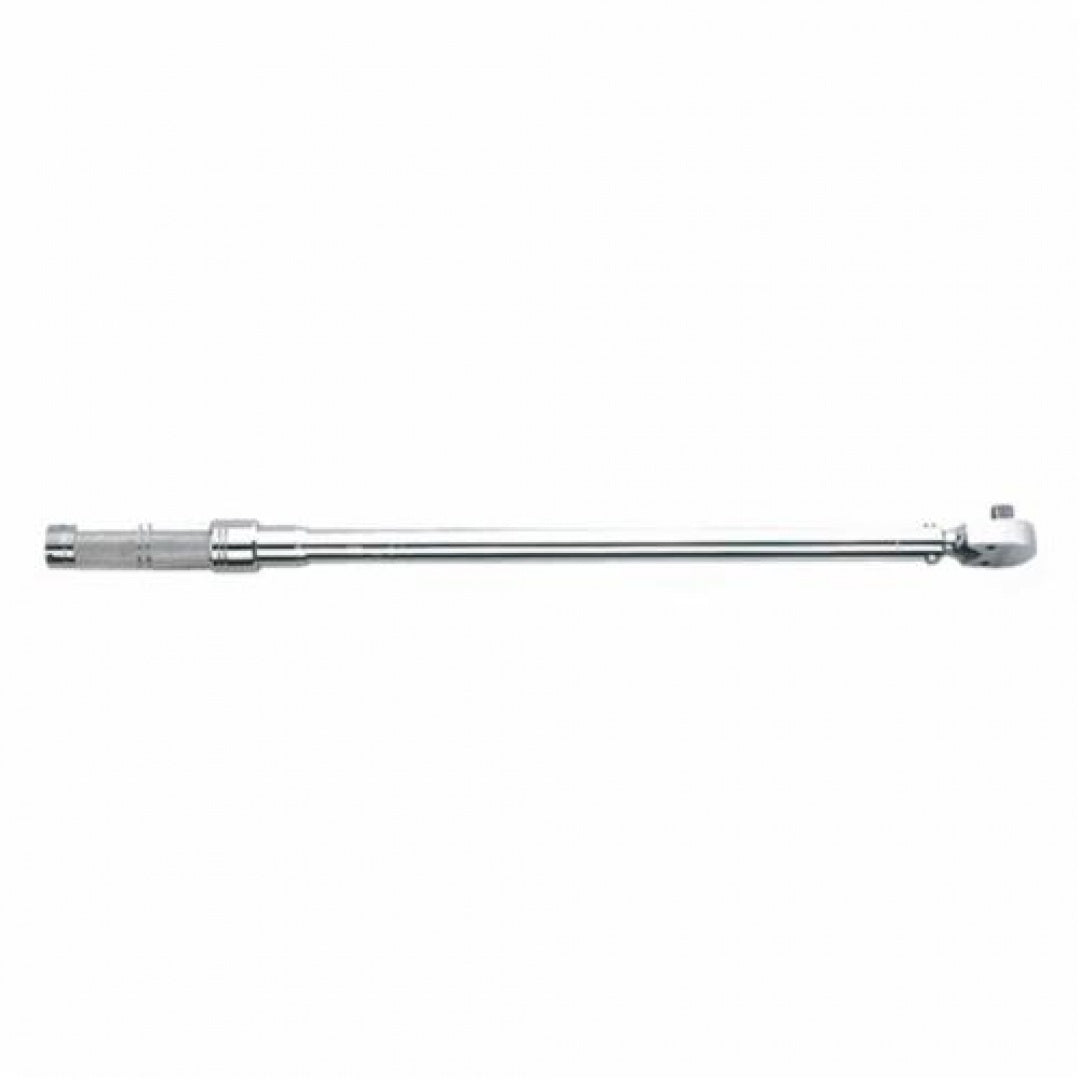

Proto J6014CXCERT Tools TW 1/2DR 50-250 ft-lb CERT

Product Description

The Proto Tools J6014CXCERT TW 1/2DR 50-250 FT-LB CERT is designed for precision. This micrometer torque wrench is calibrated to +/- 3% in clockwise direction and +/- 6% in counter clockwise direction. It is manufactured to meet precision/highly accurate applications such as military and aerospace.

• Calibrated to +/- 3% in clockwise direction and +/- 6% in counter clockwise direction.
• Certification documents traceable to N.I.S.T. (National Institute of Standards and Technology).
• Manufactured to meet precision/highly accurate applications such as military and aerospace.

Product Highlights

The Proto J6014CXCERT micrometer torque wrench ensures you get the job done right. Ideal for automotive and aviation industries, it features a secondary scale range of 73.5 to 345 N-m.

Product Information

Standard Information

• Brand: PROTO
• Manufacturer Part Number: J6014CXCERT
• Country of Origin: United States

Technical Specifications

• Color: Multi
• Style: Military
• Finish: Full Polished
• Material: Steel
• Head Style: Fixed Square
• Operation Mode: Mechanical
• Number of Handles: 1
• Measurement System: Inch
• Batteries Required?: No
• Included Components: Unit^Instruction Guide
• Item Model Number: J6014CXCERT
• Part Number: J6014CXCERT
• Manufacturers Part Number: J6014CXCERT
• Certifications: TO33K6 W/N.I.S.T Traceable Certificate
• Drive Size: 1/2 in
• Accuracy: +/-3% CW, +/-6% CCW
• Rotation: Clockwise and Counterclockwise
• Head Type: Standard
• Insulated: No
• Standards: ASME B107.300-2010
• Dual Scale: Yes
• Ratcheting: Yes
• Handle Type: Knurled
• Nonsparking: No
• Handle Color: Silver
• Tether Style: Tether Capable
• Torque Range: 50 ft-lb to 250 ft-lb
• Head Movement: Ratcheting
• Meets/Exceeds: ASME B107.14M
• Tether Capable: Tether Capable
• Torque Setting: Adjustable
• Handle Material: Alloy Steel
• Torque Increments: 1 ft-lb
• Clockwise Accuracy: +/- 4%
• Corrosion Resistant: Yes
• Primary Scale Range: 50 ft-lb to 250 ft-lb
• Torque Adjustability: Adjustable
• Extended Data Testing: Yes
• Min. Number of Cycles: 5,000
• Secondary Scale Range: 73.5 to 345 N-m
• Number of Geared Teeth: 24
• Torque Measurement Type: Foot-Pound
• Primary Scale Increments: 1 ft-lb
• Counterclockwise Accuracy: +/- 6%
• Torque Limiting Mechanism: Click-Type
• Visual/Audible Indicators: Audible Click
• Secondary Scale Increments: 1.36 N-m
• Primary Scale Maximum Torque: 250 ft-lb
• Primary Scale Minimum Torque: 50 ft-lb
• Calibration Certificate Included: Yes
• Country of Origin (subject to change): United States
• Wrench Type: Mil Spec Micrometer Torque Wrench
• Minimum Torque (Ft/Lb): 50.0
• Maximum Torque (Ft/Lb): 250.0
• Series: CXCERT
• Rotation Type: CW/CCW
• Indicator Type: Audible Click
• Specifications Met: ASME B107.14
• Overall Length (Inch): 27-1/8
