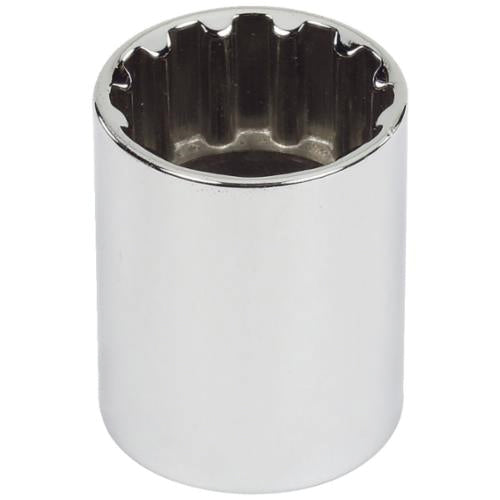

Proto J5416SPL Standard Length Socket 1/2 in Square Drive #16 to 1/2 in Spline Socket

Product Description

The Proto J5416SPL Standard Length Socket is designed for various applications in automotive and industrial sectors. This socket features a square drive and is made from alloy steel, ensuring durability and strength. Measuring 1-7/16 inches overall, it is suitable for use with #16 to 1/2 inch spline fasteners.

• High-tensile strength for military and commercial applications
• 1/2 inch square drive size for versatile use
• Compatible with high torque loads

Product Highlights

The Proto J5416SPL socket is ideal for tightening high strength bolts. Its spline design reduces rounding of fasteners and enhances torque delivery.

Product Information

Standard Information

• Brand: Proto
• MPN: STAPR-J5416SPL

Technical Specifications

• Type: Standard Length
• Finish: Full Polished
• Material: Alloy Steel
• Drive Size: 1/2 in
• Drive Type: Square
• Socket Type: Spline
• Socket Size: #16 to 1/2 in
• Overall Length: 1-7/16 in
• Opening Depth: 31/64 in
• Bolt Clearance Depth: 13/16 in
• Drive End Width: 7/8 in
• Socket End Width: 7/8 in
• Number of Points: 12
• Impact Rated: No
• Measurement System: Imperial
