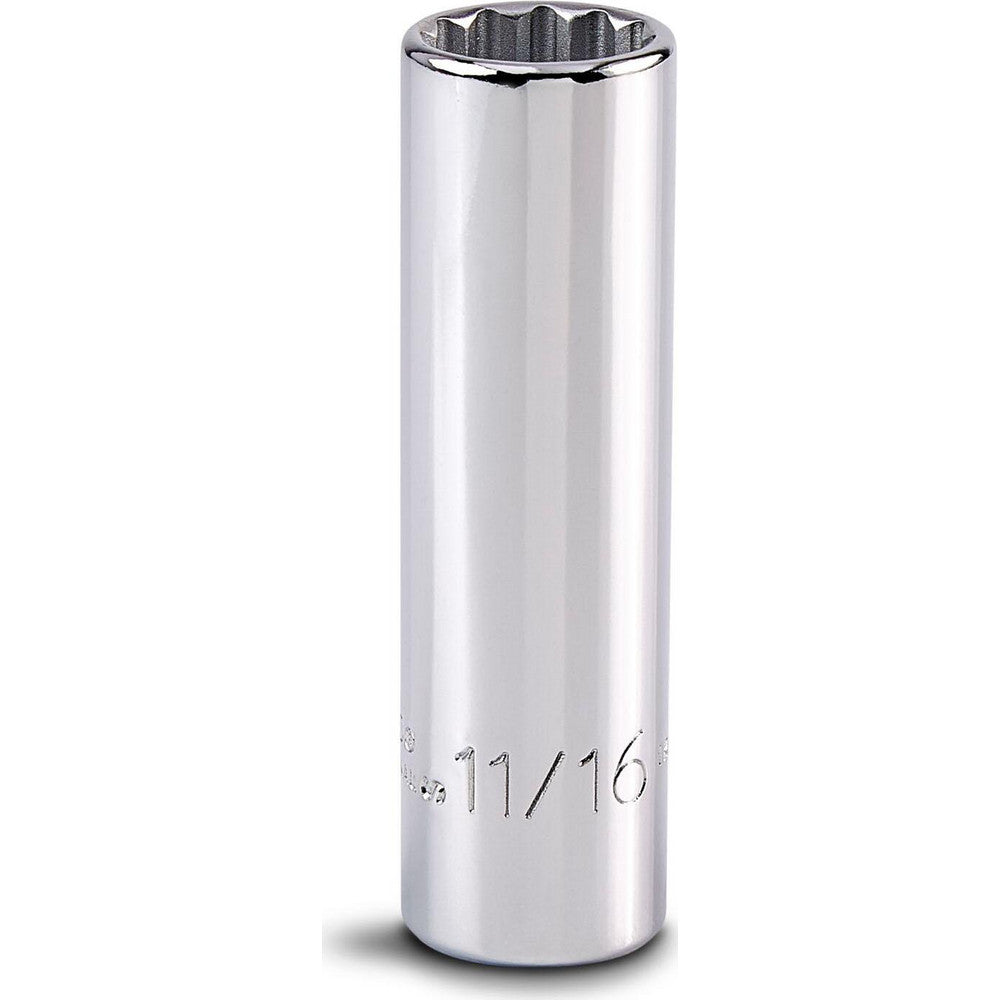

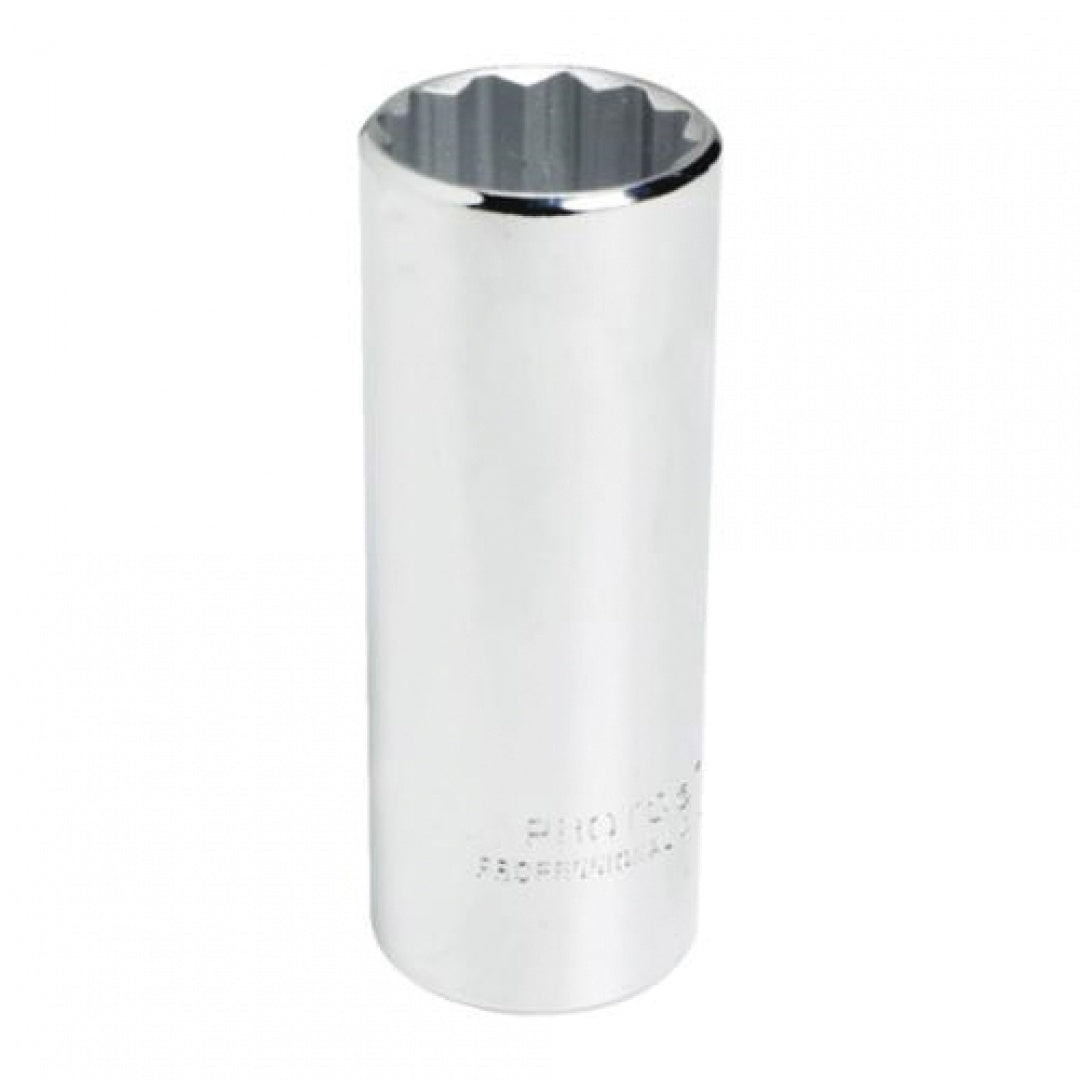

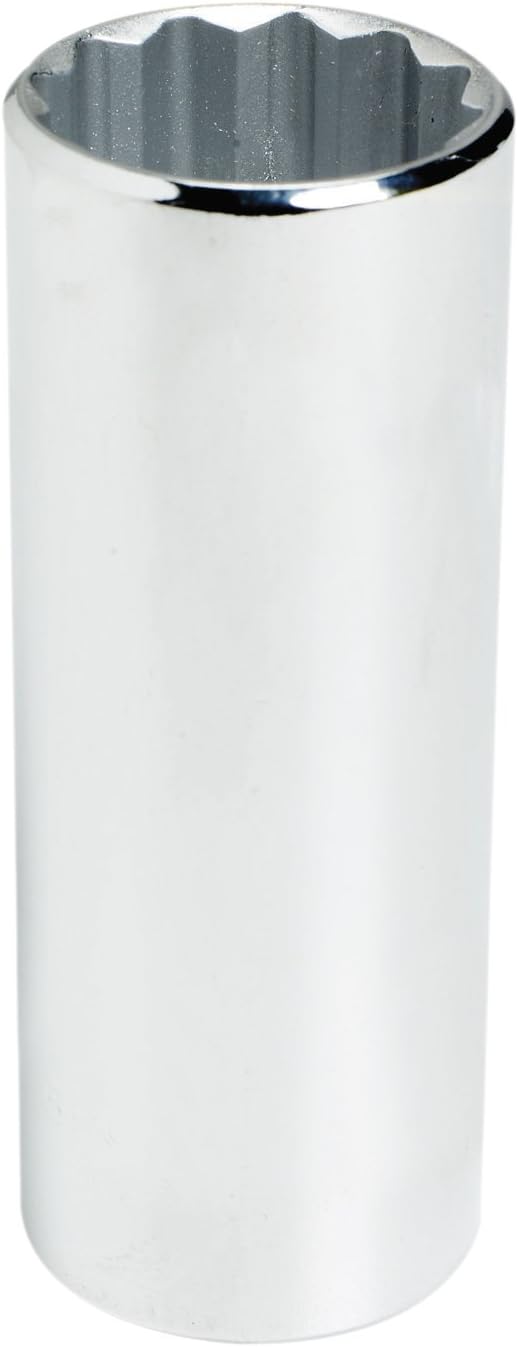

Proto J5322 Deep Socket 1/2 inches Drive 11/16 inches - 12 Point

Product Description

The PROTO J5322 deep socket is ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials. The TorquePlus design allows for quick and easy socket engagement. It has a 1/2" drive, 11/16" socket size, and 12 points. The socket's design minimizes fastener rounding and extends fastener life.

• TorquePlus internal design minimizes fastener rounding
• Ideal for use on stubborn or damaged fasteners
• High performance drive configuration allows for quick and easy socket engagement

Product Highlights

The PROTO deep socket is designed for use with damaged fasteners and made from soft materials. Its TorquePlus design allows for easy socket engagement.

Product Information

Standard Information

• Brand: PROTO
• Manufacturer Part Number: J5322
• Country of Origin: US

Technical Specifications

• Material: Forged Alloy Steel
• Drive Size: 1/2 in
• Opening Size [Nom]: 11/16 in
• Number of Points: 12
• Overall Length [Nom]: 3 1/4 in
• Finish: Nickel Chrome
• Drive Type: Square
• Locking Type: Ball
• Measuring System: Inch
• Head Width [Nom]: 31/32 in (drive side); 31/32 in (opening side)
• Applications: Industrial
• Socket Length: 3 1/4 in
• Tip Type: Box
• Type: Drive Deep Socket
• Socket Type: Deep
• Socket Size (Inch): 11/16
• Overall Length (Inch): 3-1/4
• Length Type: Deep
• Tether Style: Not Tether Capable
• Standards: ASME B107.110-2012, SAE AS954G
• Coating/Finish: Chrome
• Drive End Shape: Square
• Drive End Size: 1/2 Inch
• Socket End Size: 11/16 Inch
• Outside Diameter: 0.956 Inch
• Overall Length: 3.23 Inch
• Process: Heat Treated
• Applicable Standard: ASME B107.1-2002, US Federal Specification GGG-W-641 E
• Socket Designation: Deep
• Body Style: Straight
• Socket Depth: 1.342 Inch
• Point Size: 12
• Units of Measurement: Standard (SAE)
