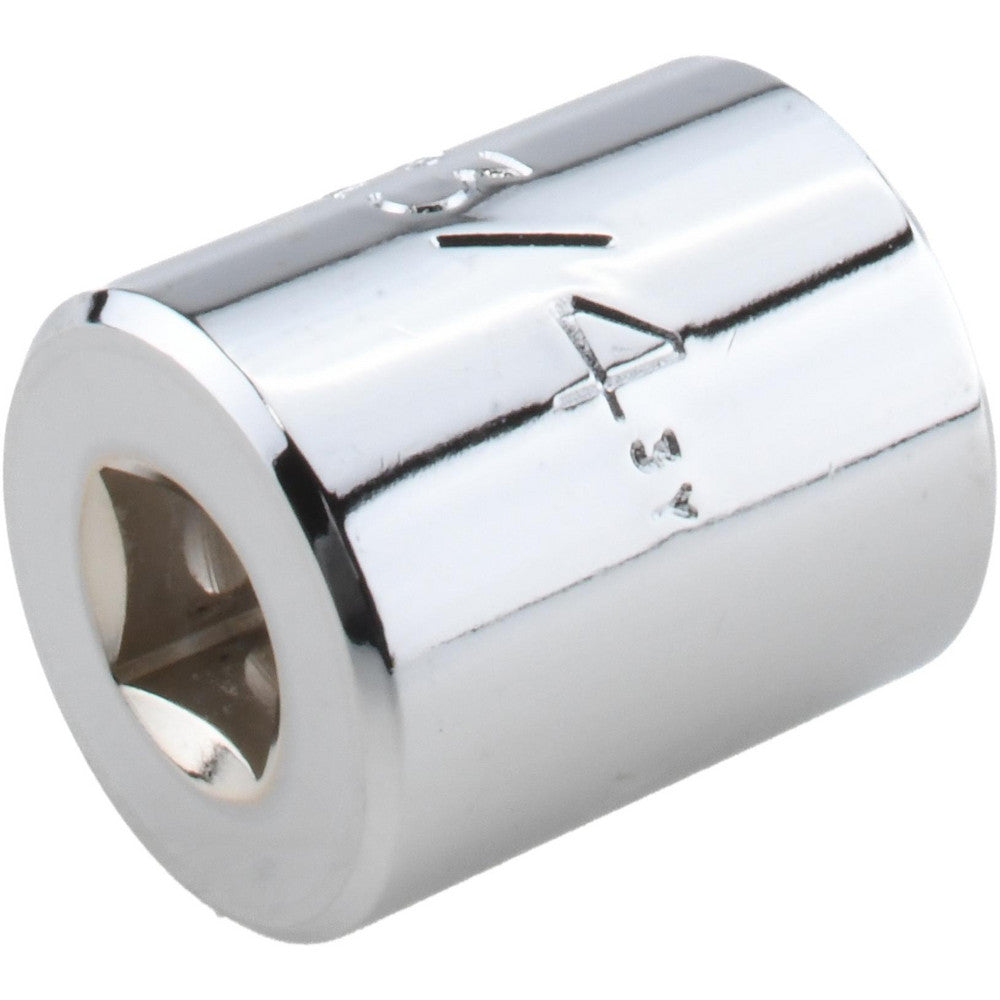

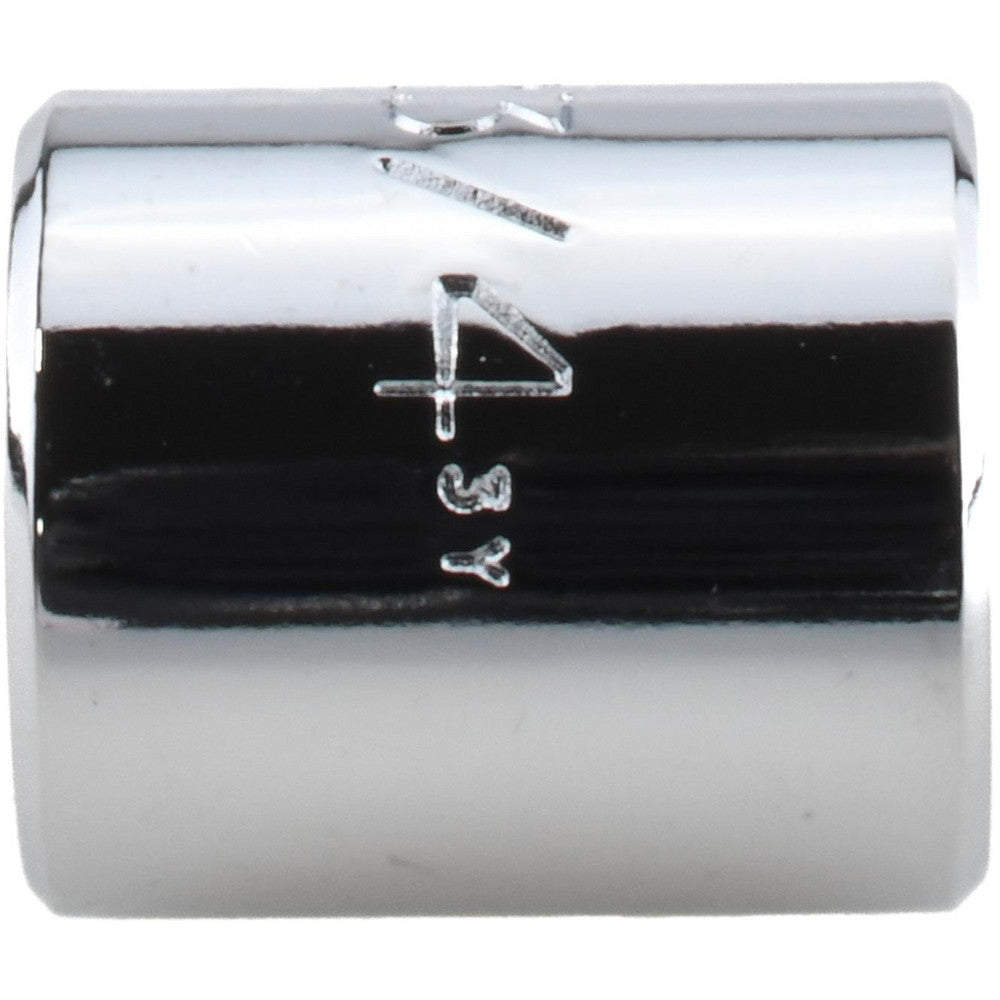

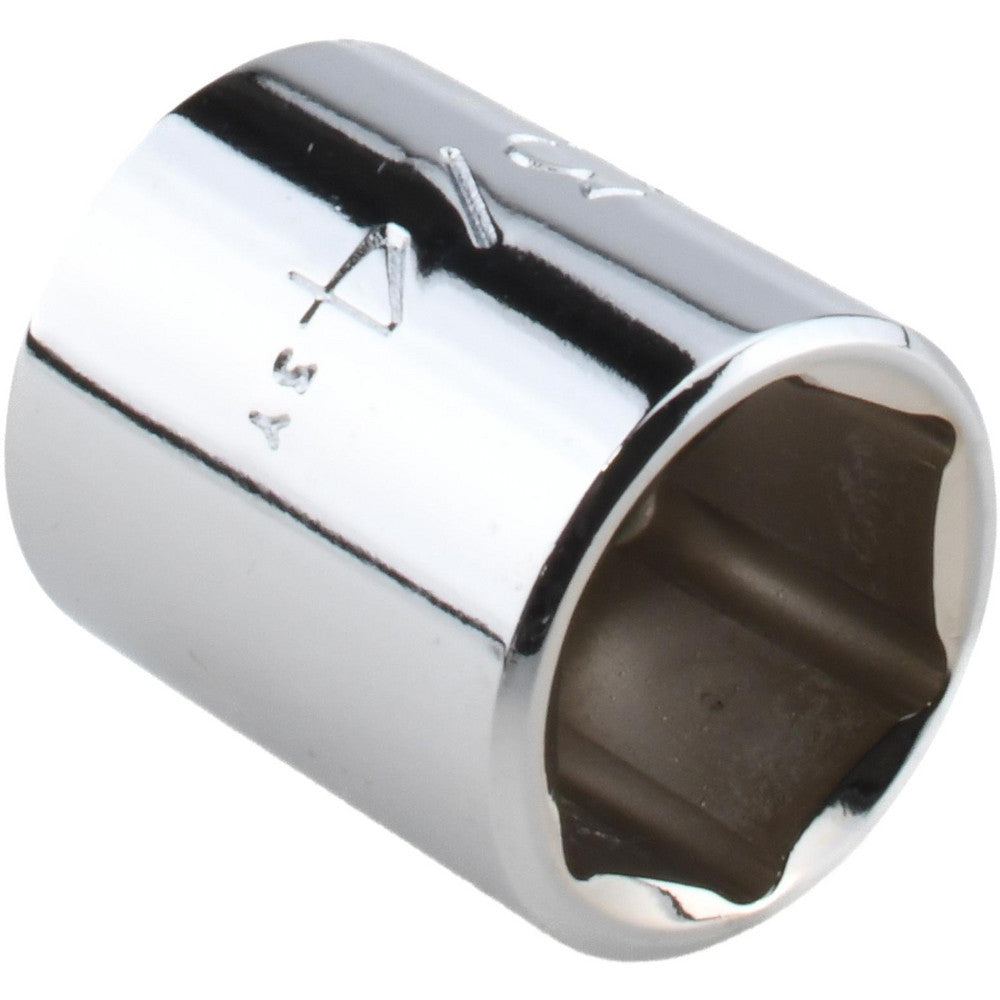

Proto J5224H 3/8 inches Drive Socket 3/4 inches - 6 Point

Product Description

The Proto J5224H 3/8" Drive Socket is a 3/4", 6-point hand socket ideal for use on stubborn or damaged fasteners, and fasteners made from soft materials. The TorquePlus design allows for quick and easy socket engagement to the fastener flats, not the corners. It minimizes fastener rounding and extends fastener life.

• Ideal for use on stubborn or damaged fasteners.
• TorquePlus design allows for quick and easy socket engagement.
• Minimizes fastener rounding and extends fastener life.

Product Highlights

This Proto socket features a TorquePlus design for improved grip and durability, suitable for various fastener types.

Product Information

Standard Information

• Brand: PROTO
• Manufacturer Part Number: J5224H
• Country of Origin: US

Technical Specifications

• Type: Hand Socket
• Brand: Proto
• Size: 3/4 in
• Length: 1-3/16 in
• Nut Depth: 39/64 in
• Impact Approved: No
• Drive Size: 3/8 in
• Measuring System: SAE (Fractional)
• Opening Size: 3/4 in
• Socket/Wrench Points: 6
• Socket Depth Style: Standard
• Manufacturers Part Number: J5224H
• Bolt Clearance Depth: 3/4 in
• Nut End Outside Diameter: 1-1/64 in
• Drive End Outside Diameter: 1-1/64 in
• Material: Forged Alloy Steel
• Finish: Nickel Chrome
• Head Width [Nom]: 1 1/64 in (opening side); 1 1/64 in (drive side)
• Locking Type: Ball
• Number of Points: 6
• Overall Length: 1-3/16 in
• Drive Type: Square
• Socket Shape: 6-Point
• Coating/Finish: Chrome
• Standards: AS4984A, ASME B107.110-2012
• Tether Ready: Not Tether Capable
• UNSPSC: 27111704
• Socket Type: Standard
• Units of Measurement: Standard (SAE)
• Country of Origin (subject to change): China
