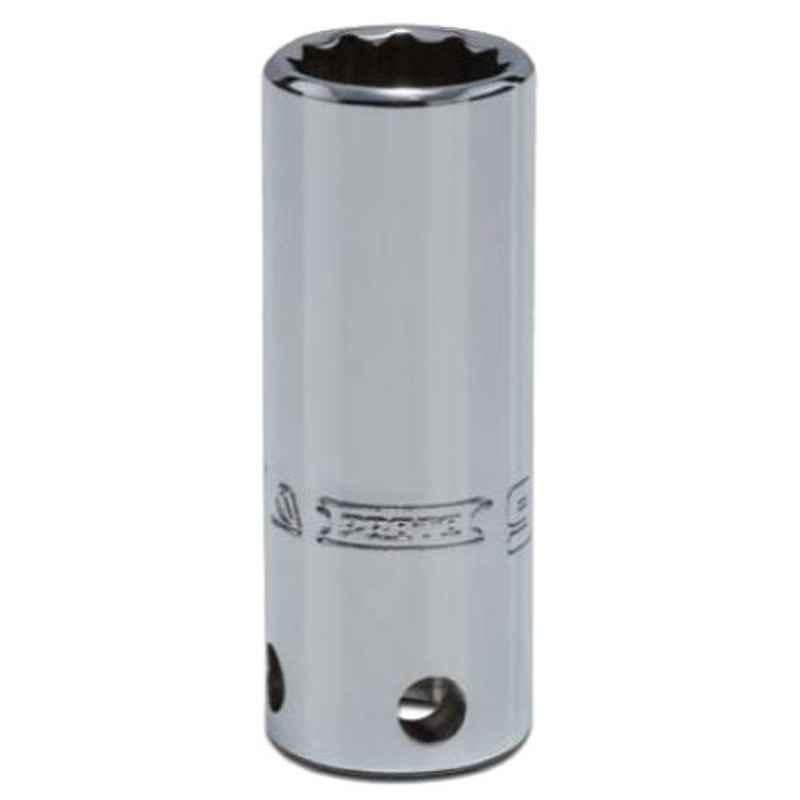

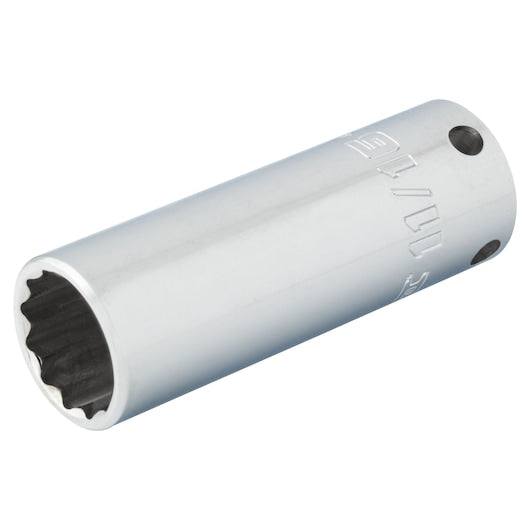

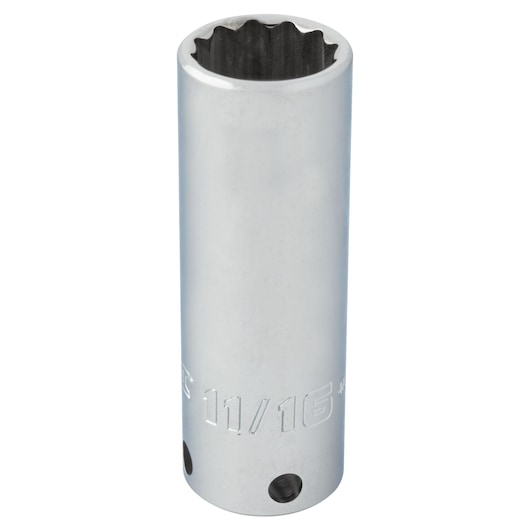

Proto J5022-TT Socket 3/8 in Drive 11/16 in

Product Description

The PROTO J5022-TT socket is designed for efficient use. This tether-ready deep socket has a 3/8 in drive and a 12 Point 11/16 in configuration. Proto 12 point sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.

• Manufactured with four detent holes so that the pin detent will engage correctly regardless of the direction the socket is placed on the square drive
• The Positive Control System requires a separate tool to attach or remove the socket, meaning it cannot be removed without specific intent
• Chrome finish is applied after the holes are bored for better corrosion resistance

Product Highlights

The TorquePlus design allows for quick and easy socket engagement. It minimizes fastener rounding and extends fastener life.

Product Information

Standard Information

• Brand: PROTO
• Manufacturer Part Number: J5022-TT
• Country of Origin: US

Technical Specifications

• Drive Size [Nom]: 3/8 in
• Drive Type: Square
• Finish: Full Polish
• Head Width [Nom]: 15/16 in
• Locking Type: Pin
• Measuring System: Inch
• No. of Points: 12
• Opening Size [Nom]: 11/16 in
• Overall Length [Nom]: 2 3/4 in
• Socket Length: 2 3/4 in
• Type: Drive Deep Socket
• Width [Nom]: 15/16 in
• Wt.: 0.3 lb
• Brand: Proto
• Case Quantity: 1 each
• Package Quantity: 1 each
• Opening Configuration: 12 Point
• Socket Size: 11/16 inch
• Square Drive Size: 3/8 inch
• Item Code: J5022-TT
• Drive Size: 3/8 in
