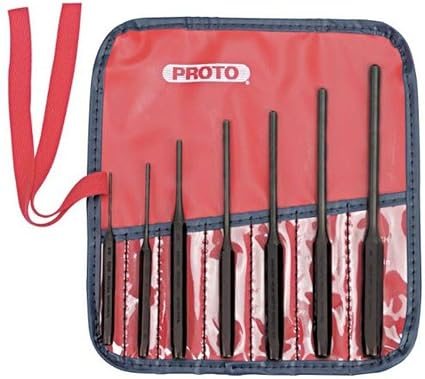

Proto J49007S2 7 Piece Roll Pin Punch Set (7 Pc Tool Roll)

Product Description

Proto J49007S2 is a seven-piece roll pin punch set constructed from S2 hardened tool steel and heat-treated for increased strength. The one-piece punches use a reverse taper and modified parabolic striking end to reduce binding and mushrooming when installing or removing roll pins. Tip sizes range from 1/16 in to 1/4 in with overall lengths from 3-3/4 in to 6-7/16 in; the set includes a 7-pocket tool roll pouch and is tether-capable.

• S2 hardened tool steel, heat-treated, one-piece design for strength and durability
• Tip sizes: 1/16 in to 1/4 in; overall lengths: 3-3/4 in to 6-7/16 in
• Black oxide finish, reverse taper and modified parabolic striking end; includes 7-pocket tool roll; tether-capable

Product Highlights

Seven S2 steel roll pin punches (1/16–1/4 in) with black oxide finish, reverse taper, modified parabolic striking end and 7-pocket tool roll.

Product Information

Standard Information

• Brand: PROTO
• Manufacturer Part Number: J49007S2
• Country of Origin: United States

Technical Specifications

• Brand: Proto
• MPN: J49007S2
• Number of Pieces: 7
• Material: S2 hardened tool steel (heat-treated)
• Finish: Black oxide
• Design: One-piece
• Tip Sizes: 1/16 in, 3/32 in, 1/8 in, 5/32 in, 3/16 in, 7/32 in, 1/4 in
• Overall Lengths: 3-3/4 in to 6-7/16 in
• Weight: 0.77 lb
• Includes: Seven roll pin punches (1/16 in to 1/4 in) and 7-pocket tool roll pouch (J25TR31C)
• Heat-Treated: Yes
• Tether Capable: Yes (accessory required for tethering)
• Striking End: Modified parabolic
• Taper: Reverse taper to help prevent binding
• Identification: Polished identification panel marked with tool number and size in black inlay
• Container Type: 7-pocket tool roll pouch
• Measurement Type: SAE
• Corrosion Resistance: Yes (black oxide finish)
• Punch Type: Roll punch
• Punch Piece Design: One-piece
• Country of Origin: United States
