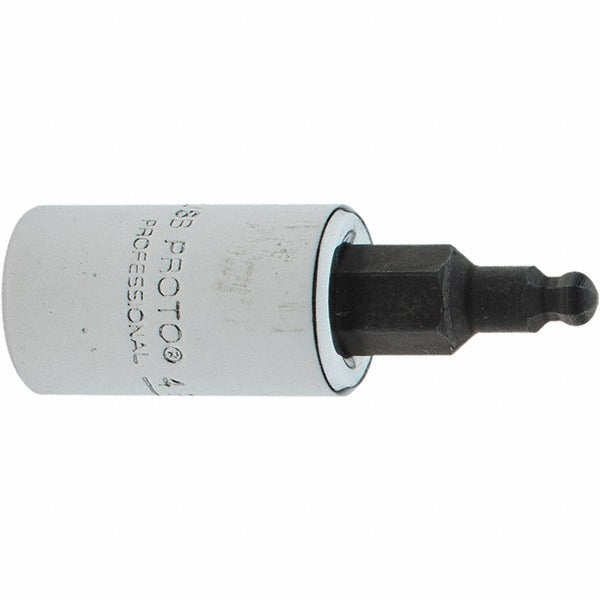

Proto J47701/8B Hand Hex Bit Socket 1/4 in Drive

Product Description

The PROTO J47701/8B is a ball end hand hex bit socket designed for use with 1/4 inch drive tools. It accepts a 1/8 inch hex fastener and features a ball end tip that allows engagement at up to a 25-degree offset from the fastener axis. Overall length is 1.5 inches with a bit length of 1.047 inches. This socket is used by maintenance technicians, electricians, HVAC techs, and plumbers when working in tight or angled access points where a straight-on approach is not possible.

This socket fits standard 1/4 inch drive ratchets, extensions, and T-handles. The ball end design is well suited for light-duty fastening and loosening in confined spaces, such as panel interiors, equipment enclosures, and mechanical assemblies. It is sized for 1/8 inch hex fasteners, which are common in instrumentation, small valves, and set screw applications encountered in trade and industrial maintenance work.

Key Features

• Ball end tip allows angled engagement for use in tight or obstructed spaces
• 1/4 inch drive fits standard ratchets, T-handles, and extensions
• 1/8 inch hex size for small fastener applications
• Compact overall length of 1.5 inches for use in confined areas
• Bit length of 1.047 inches provides adequate fastener engagement depth

Compatibility

Designed for use with any standard 1/4 inch drive hand tool including ratchets, extensions, and T-handles. Fits 1/8 inch hex socket head cap screws and set screws in residential and commercial maintenance applications.

Installation Notes

This socket is installed and removed by hand with a compatible 1/4 inch drive ratchet or T-handle. Ensure the fastener head is fully seated in the socket before applying torque to avoid rounding. Do not use impact tools with this hand socket. For set screw applications, confirm the hex size matches before engaging to prevent fastener damage.
