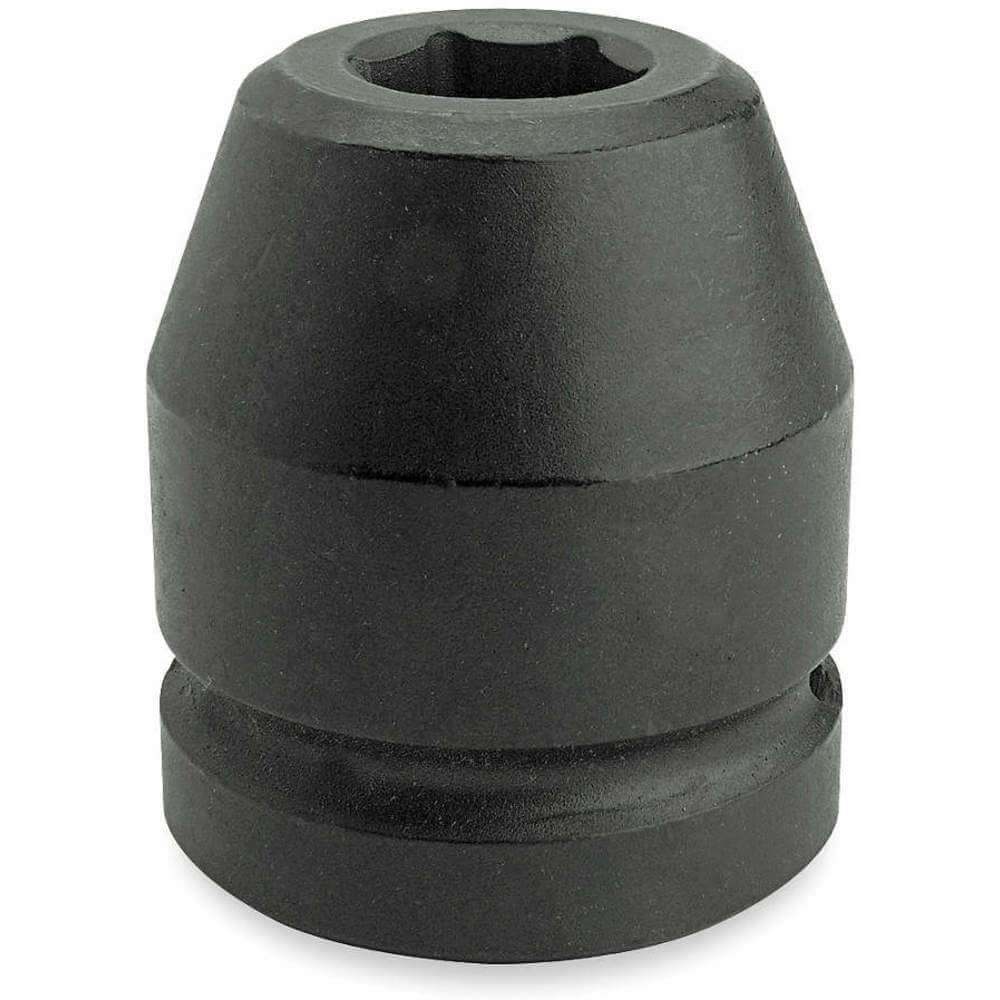

Proto J10014 Impact Socket 1 Inch Drive 7/8 Inch 6 Pt

Product Description

The Proto J10014 impact socket is designed for use with impact wrenches. It features a 1-inch drive and a 7/8-inch socket size with 6 points. The TorquePlus internal design minimizes fastener rounding and extends fastener life. Ideal for use on stubborn or damaged fasteners, and fasteners made from soft materials.

• Minimizes fastener rounding
• Extends fastener life
• High performance drive configuration

Product Highlights

The Proto impact socket is ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.

Product Information

Standard Information

• Brand: PROTO
• Manufacturer Part Number: J10014
• Country of Origin: US

Technical Specifications

• Finish: Black oxide
• Material: Forged Alloy Steel
• Drive System: Square
• Number of Points: 6
• Compatible Fastener Range: 1 inches
• Drive Size: 1 in
• Locking Type: Pin
• Measuring System: Inch
• Opening Size [Nom]: 7/8 in
• Overall Length [Nom]: 2 1/2 in
• Item: Impact Socket
• Category Type: Impact Socket
• Compatible Fastener Type: Bolts, Screws, Studs
• Drive Type: Impact
• Impact Rated: Yes
• Locking: Yes
• Measurement Type: SAE
• Non-magnetic: No
• Non-sparking: No
• Output Type: Hex
• Overall Length: 2 1/2"
• Sae Or Metric: SAE
• Socket Depth: Standard
• Socket Length: 2 1/2"
• Socket Shape: 6-Point
• Socket Size: 7/8 in
• Tether Capable: No
• Tether Ready: No
• standard: ASME B107.110-2012
• Head Width [Nom]: 1 17/32 in (opening side); 2 1/8 in (drive side)
• Bolt Clearance Depth: 1-3/8 in
• Drive End Width: 2-1/8 in
• Opening Depth: 21/32 in
• Socket End Width: 1-17/32 in
• Type: Standard Length
