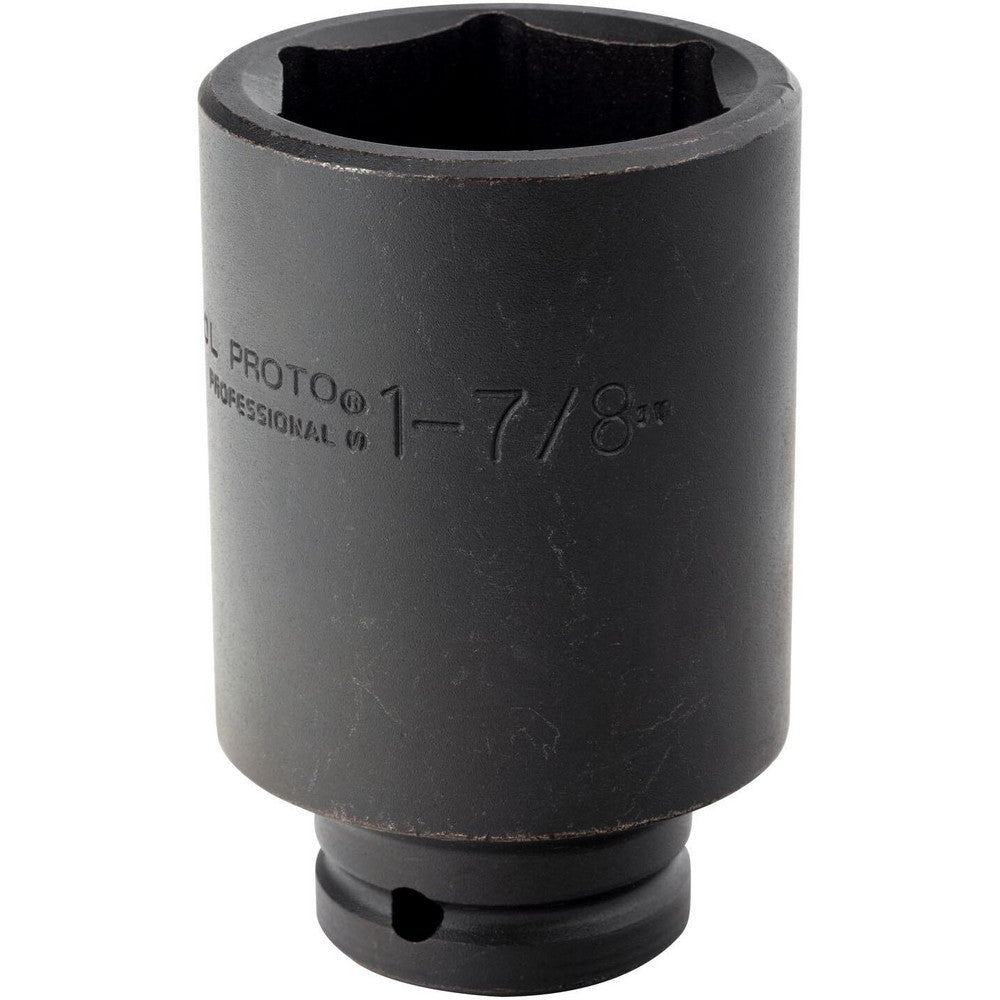

Proto J07530L 3/4 inches Drive Deep Impact Socket 1-7/8 inches 6 PT

Product Description

The PROTO J07530L is a 3/4" drive deep impact socket with a 1-7/8" opening and 6 points. The TorquePlus internal design minimizes fastener rounding and extends fastener life. Proto impact sockets are ideal for use on stubborn or damaged fasteners, and fasteners made from soft materials. The socket features a black oxide finish and is constructed from forged alloy steel.

• 3/4" Drive
• Deep Impact Socket
• 1-7/8" Size
• 6 PT (Point)

Product Highlights

This impact socket is designed for use with impact tools and is suitable for industrial applications. The TorquePlus design allows for quick and easy socket engagement.

Product Information

Standard Information

• Brand: PROTO
• Manufacturer Part Number: J07530L
• Country of Origin: US

Technical Specifications

• Drive System: Torque
• Number of Pieces: 1
• Batteries Required?: No
• Included Components: 3/4" Drive Deep Impact Socket 1-7/8" 6 PT
• Compatible Fastener Range: 0.75 inches
• Size: One Size
• Item Model Number: J07530L
• Part Number: 436-911
• Material: Blend
• Brand: PROTO
• MPN: J07530L
• Applications: Industrial
• Drive Size [Nom]: 3/4 in
• Drive Type: Square
• Finish: Black Oxide
• Head Width [Nom]: 1 3/4 in (drive side); 2 3/4 in (opening side)
• Language: English
• Locking Type: Pin
• Measuring System: Inch
• No. of Points: 6
• Opening Size [Nom]: 1 7/8 in
• Overall Length [Nom]: 4 1/16 in
• Socket Length: 4 1/16 in
• Tip Type: Box
• Type: Deep Impact Drive Socket
• Item: Impact Socket
• Locking: Yes
• Features: Ideal for Use on Stubborn or Damaged Fasteners, and on Fasteners Made from Soft Materials; TorquePlus(TM) Design Allows for Quick and Easy Socket Engagement to Fastener Flats (not corners); Radius-Corner Design Shifts Contact Area and Stress Away from Fastener Corners, Minimizing Slippage; Extended Fastener Life; Ease of Turning Worn Rounded or Rusted Fasteners; Size Stamped on Tool for Easy Identification; Side Locking Hole for Securing Socket to Tool
• Standards: ASME B107.110-2012
• Output Type: 6 pt
• Socket Size: 1 7/8 in
• Impact Rated: Yes
• Non-Magnetic: No
• Non-Sparking: No
• Socket Depth: 1.438 Inch
• Socket Shape: 6-Point
• Tether Ready: Not Tether Capable
• Category Type: Impact Socket
• SAE or Metric: SAE
• Measurement Type: SAE
• Compatible Fastener Type: Bolts, Screws, Studs
• Drive Size: 3/4 in
• Drive Style: Hex
• UNSPSC Code: 27110000
• Overall Length (Inch): 4-1/16
• Product Service Code: 5120
• UNSPSC: 27111704
• Applicable Standard: ASME B107.2-2002, US Federal Specification GGG-W-660A
• Socket Designation: Deep
• Body Style: Taper
• Drive End Shape: Square
• Drive End Size: 3/4 Inch
• Outside Diameter: 2.625 Inch
• Process: Heat Treated
• Socket End Size: 1-7/8 Inch
• Model: Sockets
