Proto J000BR 6 Blade Non-Magnetic Feeler Gauge Set, 1/2 inches x 3 inches Blades

Product Description

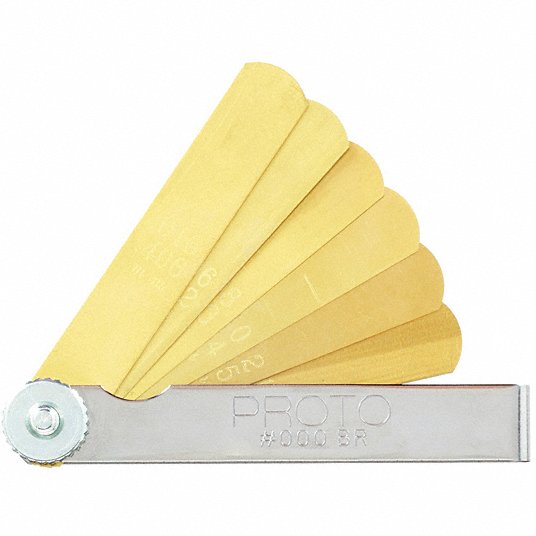

The Proto J000BR 6 Blade Non-Magnetic Feeler Gauge Set contains non-magnetic brass feeler blades for checking air gaps in electronic ignition systems in all weather conditions. The set includes blades etched with both decimal size and metric equivalents and comes in a steel holder.

• Contains non-magnetic brass feeler blades
• For checking the air gap in electronic ignition systems for all weather conditions

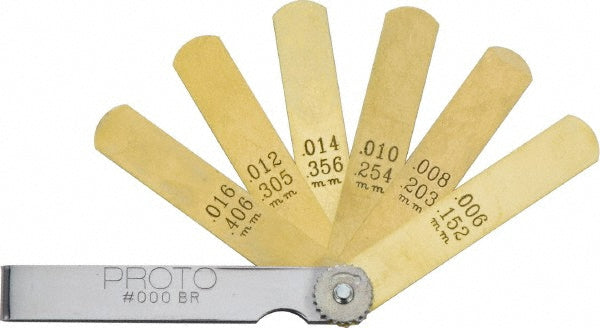

• Blades etched with both decimal size and metric equivalent

Product Highlights

This Proto feeler gauge set includes six blades and is suitable for automotive, woodworking, and light and heavy production applications.

Product Information

Standard Information

• Brand: PROTO
• Manufacturer Part Number: J000BR
• Country of Origin: US

Technical Specifications

• Type: Feeler Gage Set
• Brand: Proto
• Style: Fan Open Straight
• Digital: No
• Material: Brass
• Number of Pieces: 6
• Leaf Width: 0.5 in
• Leaf Length: 3 in
• Max Measurement: 0.016 in
• Min Measurement: 0.006 in
• Mechanical Or Digital: Mechanical
• Manufacturers Part Number: J000BR
• Blade Thickness [Nom]: 0.0060 in; 0.0080 in; 0.0100 in; 0.0120 in; 0.0140 in; 0.0160 in
• Measuring System: Inch/Metric
• Application: For Checking the Air Gap in Electronic Ignition Systems for All Weather Conditions
• Blade Style: Short
• Dimension Type: Inch
• Finish: Unfinished
• Locking Device: Yes
• Markings: Inch with Metric Equivalent
• Non-Magnetic: Yes
• Non-Marring: No
• Holder Material: Steel
• Included Blades: 0.006 in, 0.008 in, 0.01 in, 0.012 in, 0.014 in, 0.016 in
• Thickness Range: 0.006 in to 0.016 in
• Maximum Thickness - Inch: 0.016 in
• Minimum Thickness - Inch: 0.006 in
• Country of Origin (subject to change): United States
• Leaf Style: Parallel
• Number Of Leaves: 6
• Thicknesses Included (Decimal Inch): 0.0080; 0.0100; 0.0120; 0.0140; 0.0160; 0.0060
• Tapered or Parallel: Parallel
• UNSPSC Code: 41111617
• Product Type: Feeler Gauge Set
• Series: Non-Magnetic
• Package Quantity: 1
• Case Quantity: 1
