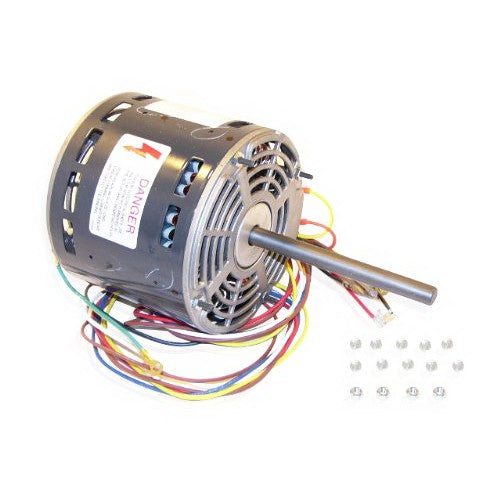

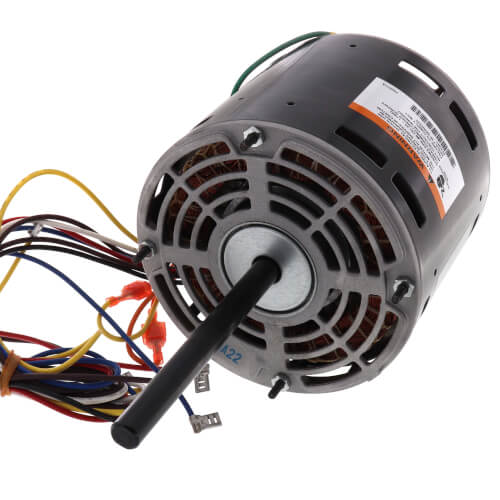

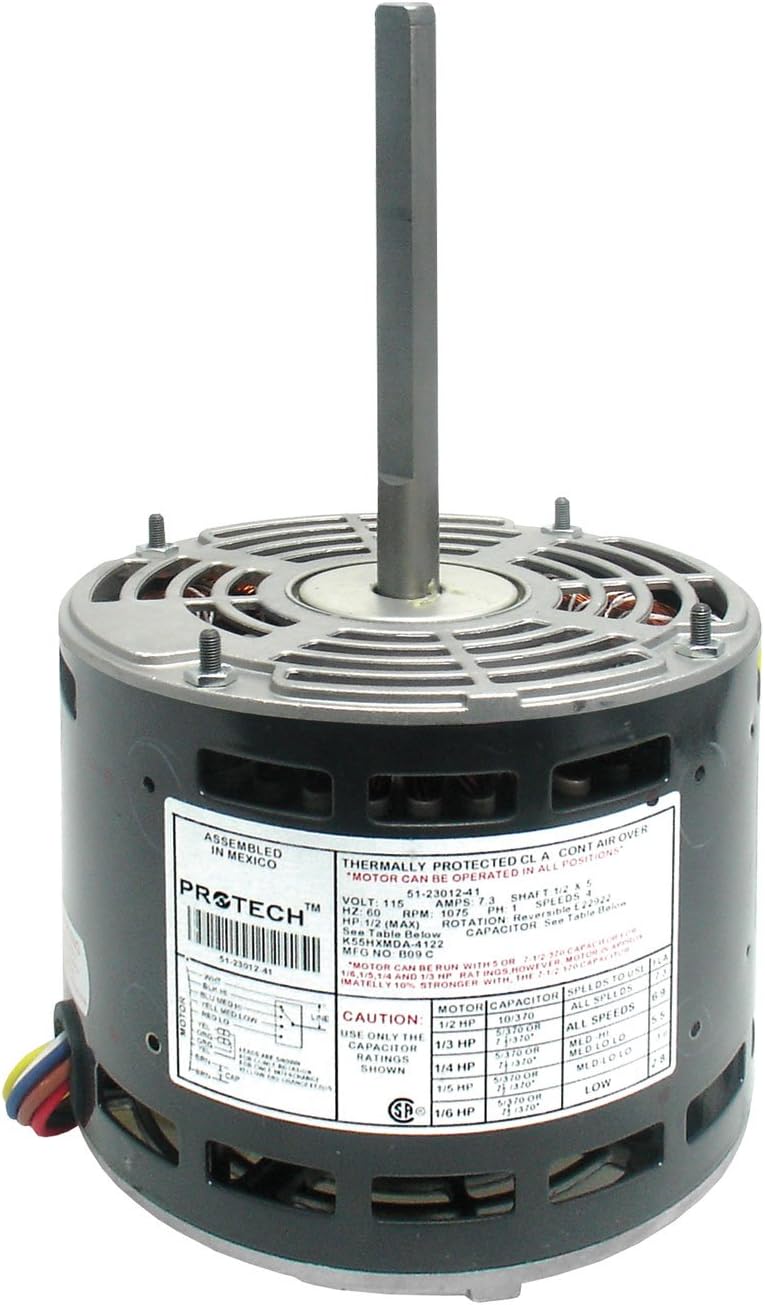

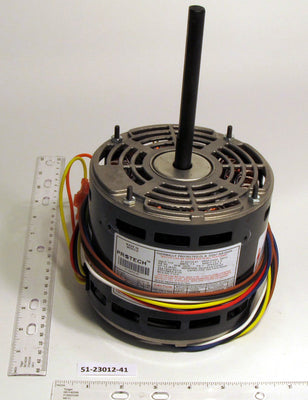

Rheem 51-23012-41 Protech Tripsaver Furnace Motor 1/6-1/2 HP 1075 RPM 120V 4 Speed

Product Description

The Rheem 51-23012-41 Protech Tripsaver Furnace Motor is essential for maintaining efficient heating in residential systems. Designed by Rheem, a trusted name in HVAC, this motor ensures reliable performance and durability. This 1/6 to 1/2 hp motor operates at 1075 RPM and runs on 120 volts.

• Replaces most residential furnace motors
• Operates in all positions
• 2-speed taps and reversible rotation

Product Highlights

This versatile motor features a robust construction and high-quality components, making it suitable for a range of heating systems. It includes 36-inch leads with quick-connect flag terminals to facilitate easy installation.

Product Information

Standard Information

• Brand: Rheem
• MPN: 51-23012-41

Technical Specifications

• Power: 1/6 to 1/2 hp
• Speed: 1075 RPM
• Voltage: 120 V
• Speeds: 4
• Phase: 1
• Bearing Type: Sleeve
• Shaft Diameter: 0.5 inches
• Shaft Length: 5 inches
• Overall Length: 9-11/16 inches
• Mounting: Shell-Band, Shell-Screw, Thru-Bolt
• Rotation Direction: Reversible
