Honeywell T991A1194 Temperature Control Proportional 55-175F 20 Foot Capillary

Product Description

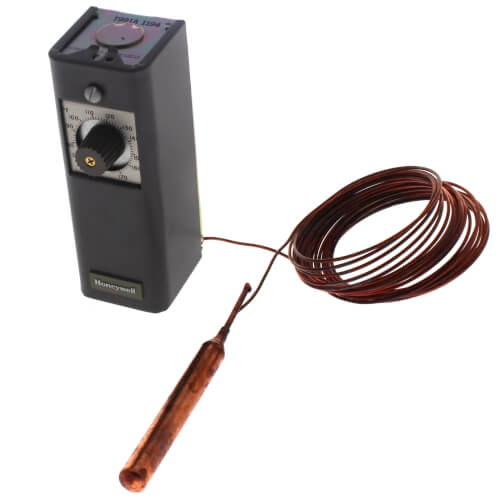

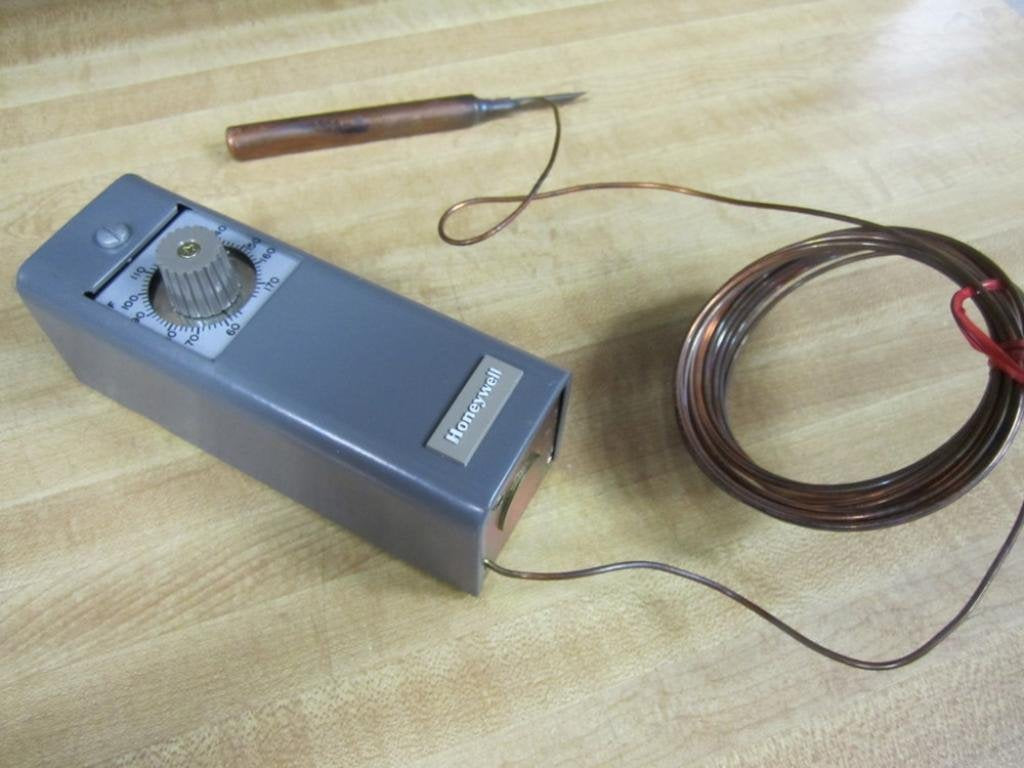

Honeywell T991A1194 is a modulating temperature controller designed for precise control of water or air temperature within ducts, tanks, and other applications. The device features a liquid-filled copper capillary that spans 20 feet, providing remote sensing capabilities.

• Fast response with at least four times quicker reaction due to coiled sensing element.
• Adjustable throttling range between 3 degrees Fahrenheit to 30 degrees Fahrenheit.
• Ambient temperature compensation ensures accurate operation despite external temperature changes.

Product Highlights

This Honeywell temperature controller is suitable for HVAC professionals, ensuring reliable and efficient temperature management in various settings.

Product Information

Standard Information

• Brand: Honeywell
• MPN: T991A1194
• Application: Suitable for controlling temperature in ducts or tanks
• Capillary Length: 20 feet
• Operating Temperature Range: 55°F to 175°F

Technical Specifications

• Sensor Type: Copper bulb
• Output: Analog, One 135 Ohm Potentiometer
• Voltage: 24 VAC to 30 VAC
• Weight: 2.4 lbs
• Dimensions: 5-5/8 inches high x 2 inches wide x 2-1/4 inches deep
