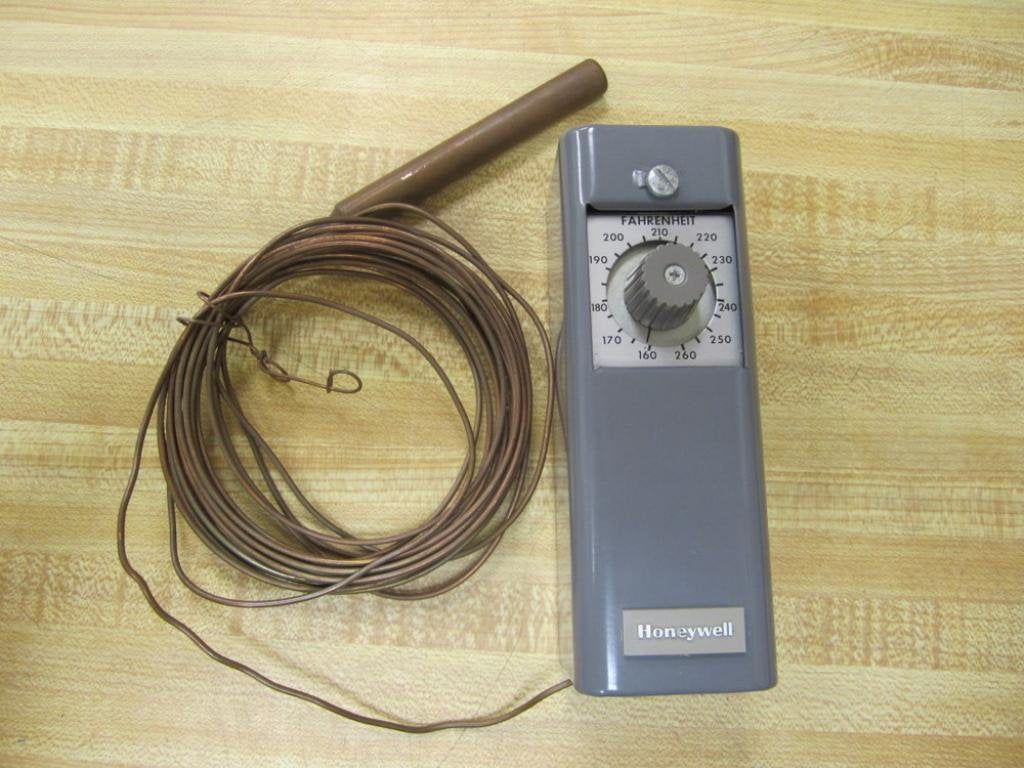

Honeywell T991A1079 Temperature Control Proportional 160-260F 20Ft

Product Description

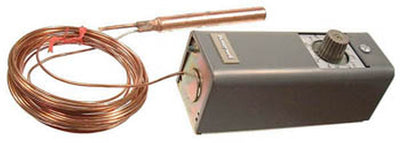

The Honeywell T991A1079 is a high-performance temperature control unit designed for modulating control of water or air temperature within industrial settings. This device functions effectively in ducts, tanks, and similar environments featuring a robust copper bulb and a 20-foot length capillary tube.

• Accurate temperature modulation from 160 to 260 degrees Fahrenheit
• Robust copper remote bulb with a diameter of 1/2 inch and a length of 4-3/16 inches
• Enhanced operational reliability with a maximum temperature rating of 280 degrees Fahrenheit

Product Highlights

Equipped with a 135 Ohm potentiometer and compatibility for various voltage operations ranging from 24 to 30 Vac at 50/60 Hertz, this temperature controller is designed for optimal flexibility and accuracy. Its construction allows for at least four times faster response than standard models, thanks to its coiled sensing element.

Technical Specifications

• Brand: Honeywell
• Type: Modulating Remote Bulb
• Dimensions: 5-5/8 inches high, 2 inches wide, 2-1/4 inches deep
• Capillary Length: 20 feet
• Bulb Size: 1/2 inch diameter x 4-3/16 inch length
• Setpoint Temperature Range: 160 to 260 degrees Fahrenheit
• Maximum Operating Temperature: 280 degrees Fahrenheit
• Throttling Range: 3 to 30 degrees Fahrenheit
