Johnson Controls A350PS-1C A350P Series Proportional Plus Integral Temperature Control

Product Description

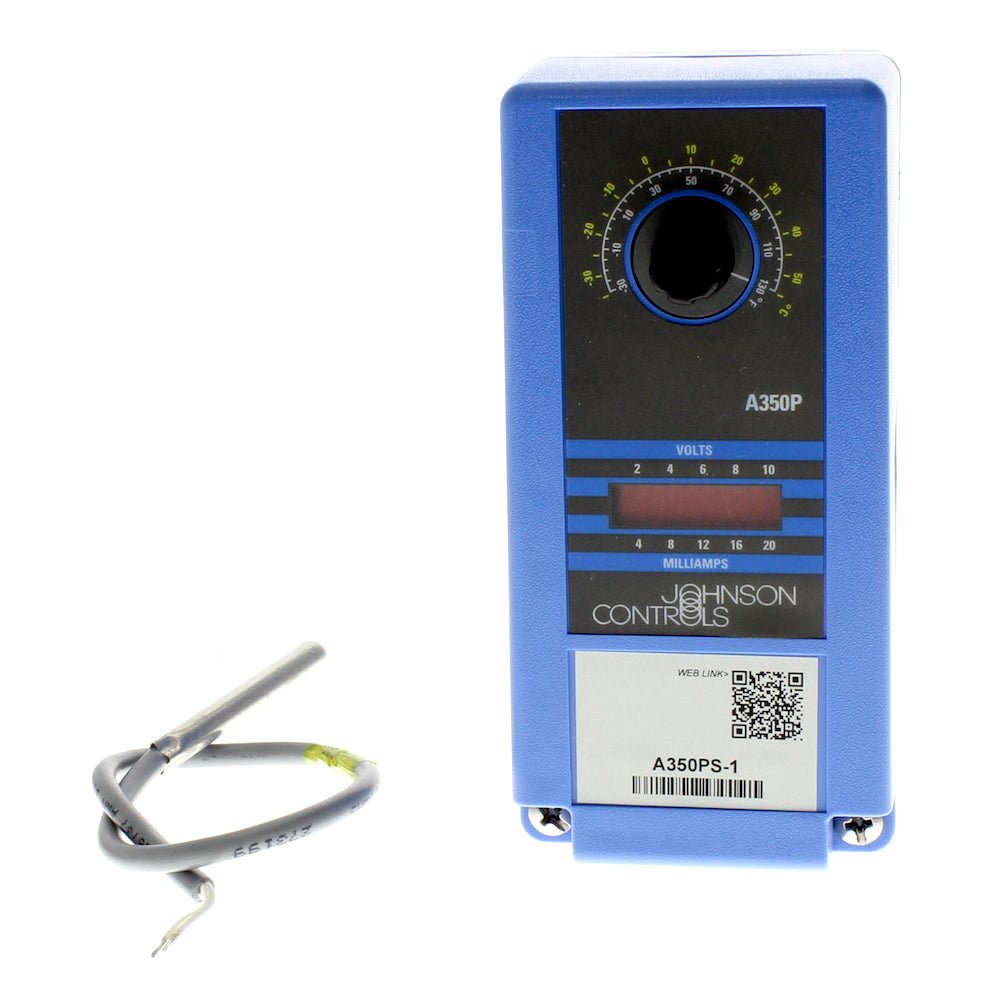

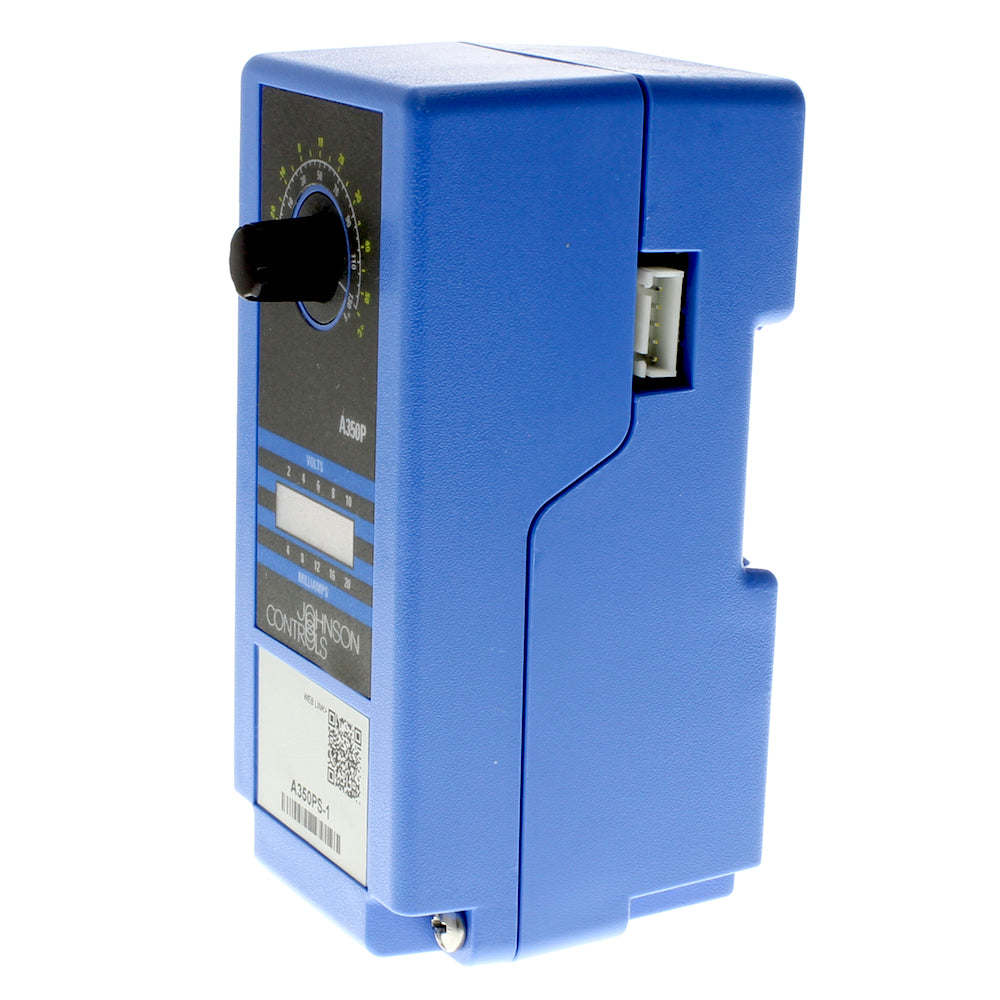

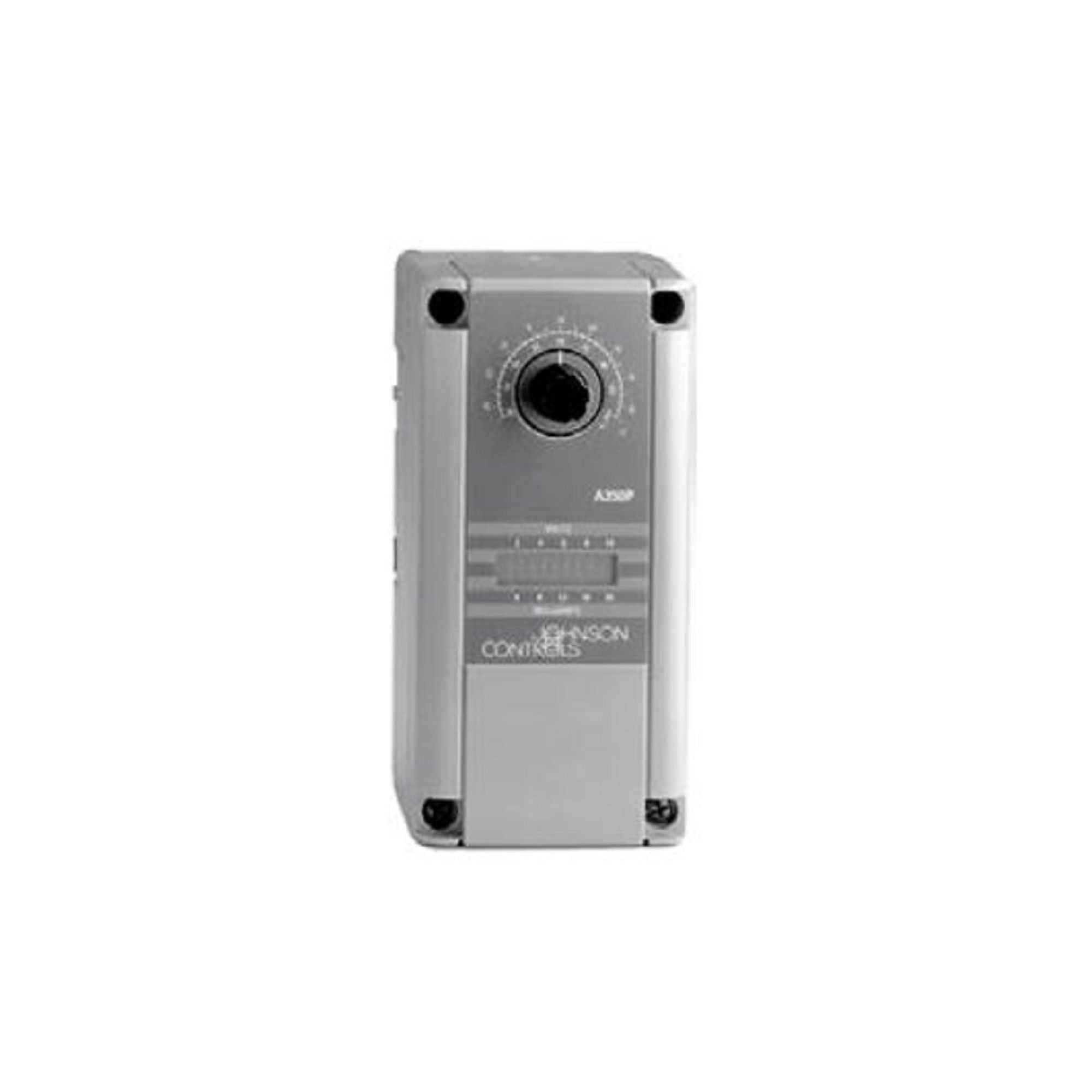

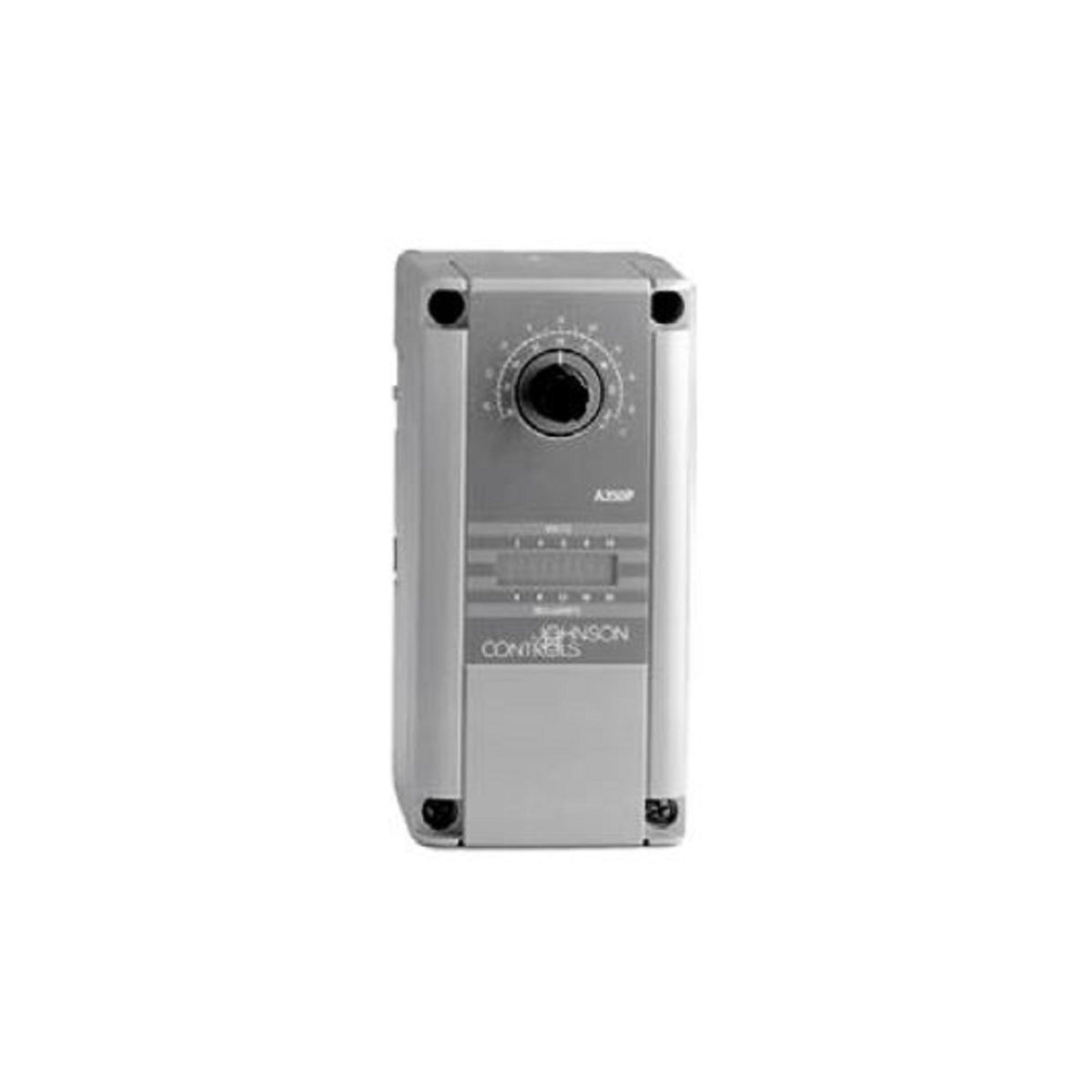

The Johnson Controls A350PS-1C is an A350P Series proportional plus integral temperature control. This electronic control features an integration feature that forces the control point to match the setpoint. Housed in a NEMA 1, high-impact plastic enclosure, it offers plug-together connections for quick installation and future expandability. It can be used for modulating heating and cooling valves and maintaining mixed air duct temperature via damper modulation.

• Field-selectable proportional only or proportional plus integral control

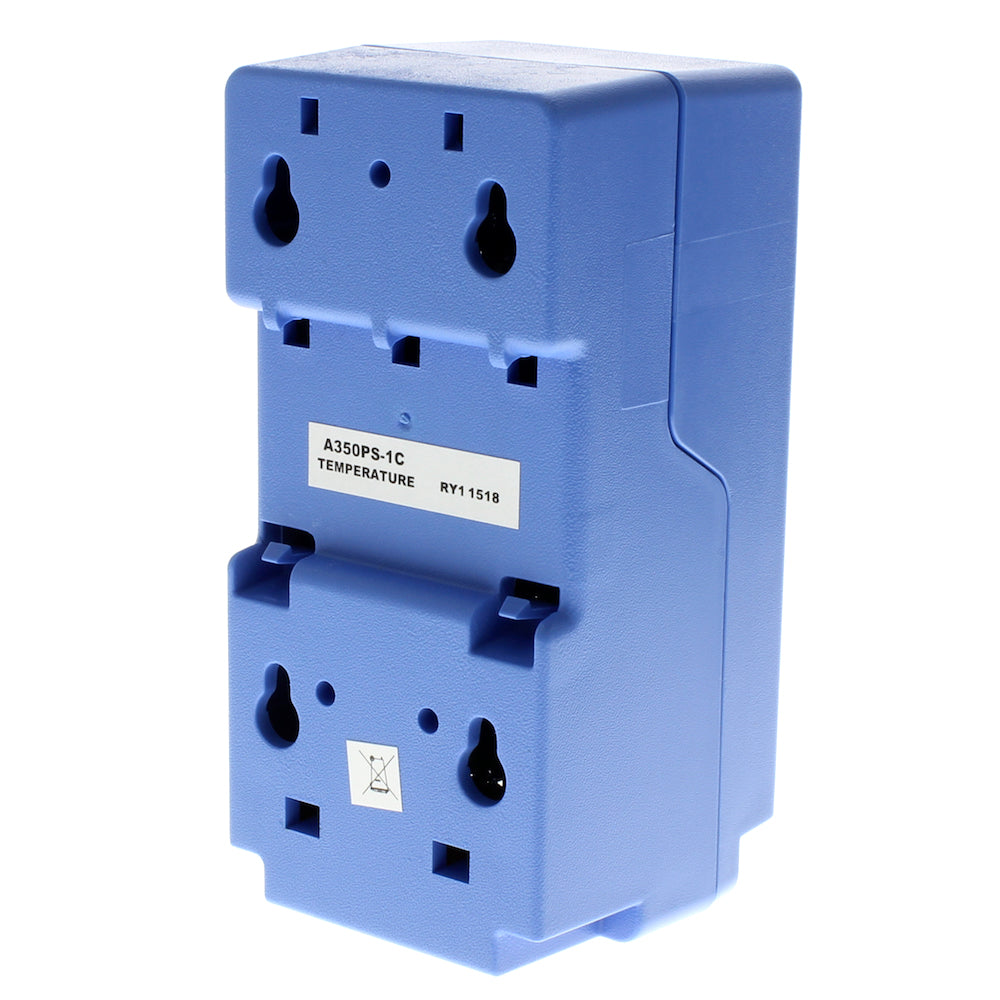

• Plug-together connectors and 35 mm DIN rail mounting eliminate wiring between models and reduce installation costs
• Ten segment LED displays percent of output signal

Product Highlights

The A350PS-1C temperature control features field-selectable control, easy installation, and LED output display.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: A350PS-1C
• Country of Origin: United States

Technical Specifications

• Item Model Number: A350PS-1C
• National Stock Number: 6685-01-570-7282
• Item Dimensions LxWxH: 5.5 x 4.1 x 3.7 inches
• Cycle/Hertz: 50/60 Hz
• Height: 3.7 in
• Length: 5.5 in
• Phase: Single
• Prop 65: Yes
• Voltage: 120/240 VAC
• Width: 4.1 in
• Country of Origin: MEX
• Series: System 350
• Control Type: ON/OFF Temperature Control Module
• Differential: 2-30F
• Range: -30-130F
• Type: Proportional
• Manufacturer: Johnson Controls
• Brand: Johnson Controls
• Product Group: BISS
• Model / MPN: A350PS-1C
• Product Type: CONTROLLER
• Nema Rating: NEMA 1
• Sensor Inputs: 1
• Control Signal: Proportional
• Controller Type: Temperature
• Sensor Included: A99BC-25C
• Analog Output Spec: 0-10 Vdc, 0-20 mA
• Accessories: D350AA-1C
• Replacement Parts: A99BC-25C
• Temperature Range (F): -30°F to 130°F
• Switch Action: Open/Close on Rise
• Enclosure Type: NEMA 1
• Standards: UL, C-UL listed
• Temperature: -30 to 212DEG F
• Approvals: UL,C-UL
• Set Point Range: -30 to 130 °F
• Controls Outputs: 0-10 V
• Supply Voltage (Nominal): 24 VAC
