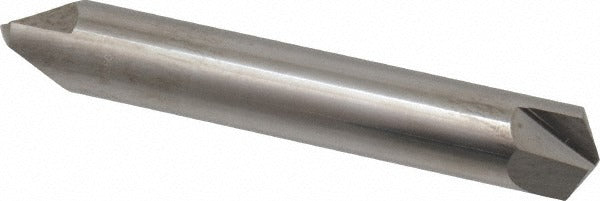

Promax 130-02410 Chamfer Mill Solid Carbide 3/8 Inch Shank

Product Description

The PROMAX 130-02410 is a 2-flute solid carbide chamfer mill designed for chamfering, countersinking, and spotting operations on a wide range of workpiece materials. It features a 3/8 inch cutter head diameter, a 3/8 inch shank diameter, and a 2.5 inch overall length. The bright/uncoated finish makes it well-suited for applications where coating interaction with the workpiece or coolant is a concern. Right-hand cutting geometry delivers consistent chip evacuation and clean edge breaks. Machinists and CNC operators in production and job-shop environments rely on solid carbide construction for rigidity, wear resistance, and dimensional consistency across high-volume runs.

This chamfer mill is intended for use in milling machines and CNC machining centers where chamfering, countersinking, and spotting are performed on metal, composite, or plastic workpieces. The 3/8 inch shank fits standard ER collet chucks and end mill holders common in both vertical and horizontal machining centers. It is appropriate for light to moderate material removal on ferrous and non-ferrous metals where an uncoated carbide tool is preferred. The compact 2.5 inch OAL suits low-clearance setups and shorter tool-length offsets.

Key Features

• Solid carbide construction for rigidity and extended tool life in demanding applications
• 2-flute geometry supports chamfering, countersinking, and spotting in a single tool
• Right-hand cutting direction for compatibility with standard spindle rotation
• Bright/uncoated finish suitable where coating-free tooling is specified
• 3/8 inch shank diameter fits widely available collet chucks and end mill holders
• 2.5 inch OAL supports use in low-clearance and short-reach setups

Compatibility

Designed as an OEM-style replacement or direct-application chamfer mill for use in milling machines and CNC machining centers accepting a 3/8 inch straight shank toolholder.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Seat the shank fully in the collet or holder and torque the retention hardware to the toolholder manufacturer's specification. Verify tool length offset and runout with a dial indicator before beginning the cut.
