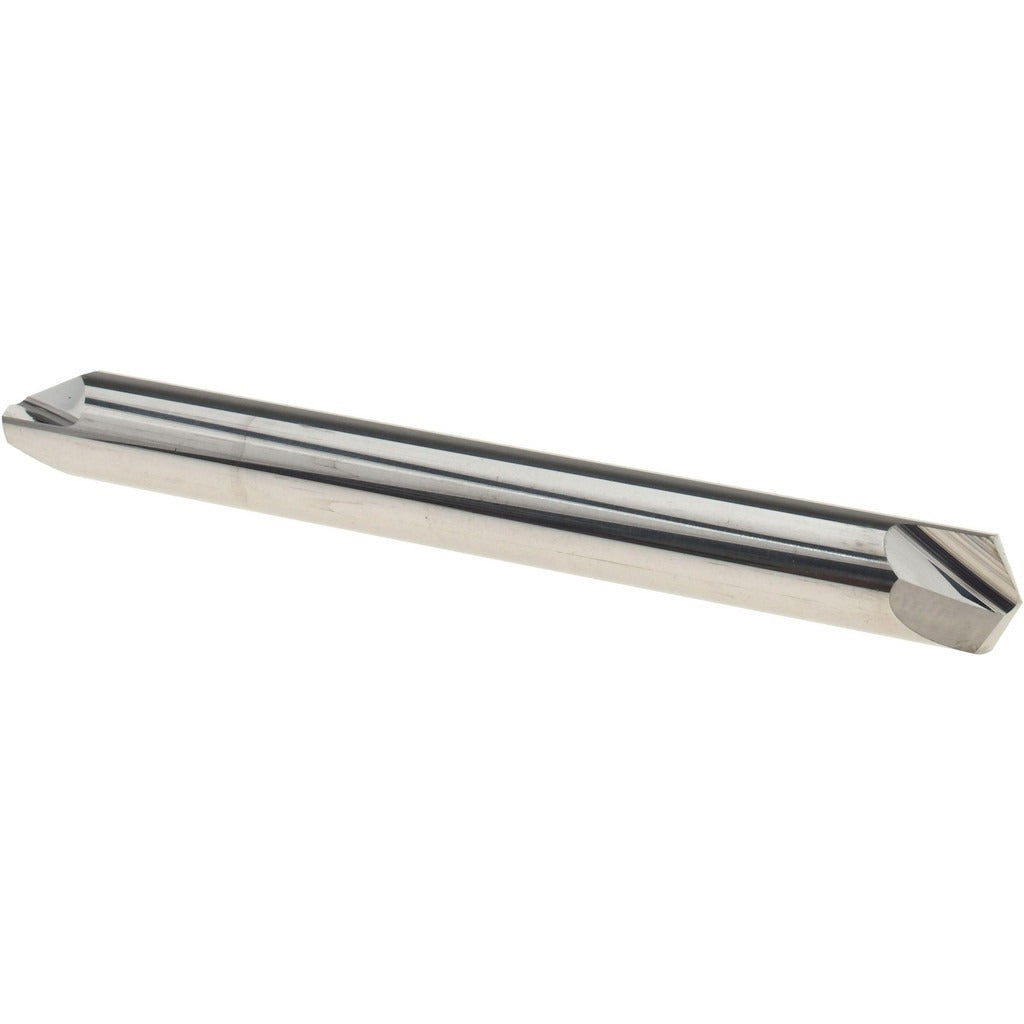

Promax 130-01510 Chamfer Mill 1/4 in 2 Flute Solid Carbide

Product Description

The PROMAX 130-01510 is a solid carbide chamfer mill designed for chamfering, countersinking, and spotting operations on a wide range of workpiece materials. Built to Series 130 specifications, this double-end tool features a 1/4 inch cutter head diameter, a 120-degree included angle, and a bright/uncoated finish that suits general-purpose machining environments. With 2 flutes and right-hand cutting direction, it delivers clean, consistent edge breaks and chamfer profiles. Machinists and tool-and-die professionals reach for this style of cutter when tight geometry and repeatable results are required on mill or CNC machining centers.

This chamfer mill is suited for light-duty to medium-duty applications in job shops, production machining cells, and maintenance environments. Its compact 1/4 inch shank diameter makes it compatible with standard collet systems and tool holders commonly found on benchtop mills, knee mills, and CNC vertical machining centers. The double-end geometry provides two usable cutting ends, extending tool life between changes. Typical work includes edge preparation, deburring, and spot-drilling on ferrous and non-ferrous materials.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cuts
• 120-degree included angle for standard chamfer and countersink profiles
• Double-end design provides two cutting ends per tool
• Bright/uncoated finish suitable for general-purpose and non-ferrous machining
• Right-hand cutting direction compatible with conventional spindle rotation
• 2-flute geometry supports chip evacuation in tight entry conditions

Compatibility

Designed as an OEM-style replacement or direct-use chamfer mill for machining centers and manual mills accepting a 1/4 inch shank collet or tool holder.

Installation Notes

Installation is performed by qualified machinists following standard tooling change procedures. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before inserting or removing cutting tools. Seat the 1/4 inch shank fully into a clean, undamaged collet or end mill holder and torque the retention mechanism per the tool holder manufacturer's specifications. Verify runout with a dial indicator before beginning a production cut.
