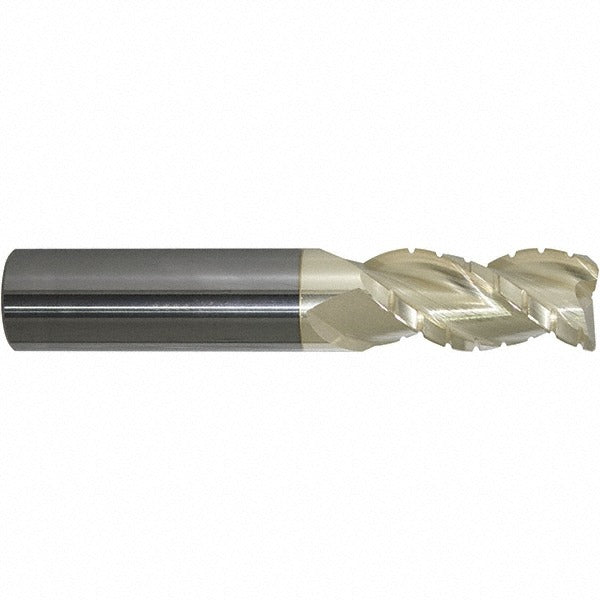

Promax 119-02016 Corner Radius End Mill 5/16 in Carbide

Product Description

The PROMAX 119-02016 is a single-end, corner radius end mill designed for roughing and finishing operations in one pass. Built from micrograin solid carbide and coated with zirconium nitride (ZrN), it delivers hardness and thermal resistance suited to demanding milling applications. The 5/16 inch diameter cutter runs a 3-flute, right-hand flute geometry with a 40-degree helix angle, promoting efficient chip evacuation and reduced cutting forces. A 0.02 inch corner radius blends floor and wall transitions, reducing stress concentrations in the workpiece and extending edge life. This tool is center-cutting and accepts standard straight-cylindrical tool holders.

This end mill is suited for machining ferrous and non-ferrous metals, hardened steels, and wear-resistant alloys where a combined roughing and finishing pass reduces cycle time. The ZrN coating provides oxidation resistance and low friction, making it appropriate for dry or minimal-lubrication cutting environments. Typical applications include contoured pocket milling, slotting, and profile work on CNC machining centers. The regular-length geometry keeps deflection low in standard-depth cuts.

Key Features

• Micrograin solid carbide construction for rigidity and edge retention
• ZrN coating for thermal resistance and reduced friction in high-speed cuts
• 3-flute, 40-degree right-hand helix for aggressive chip evacuation
• 0.02 inch corner radius reduces edge chipping and workpiece stress risers
• Center-cutting design allows direct plunge entry
• Single-end, straight-cylindrical shank fits standard collets and end mill holders

Compatibility

Designed for use in CNC machining centers and manual mills equipped with standard straight-cylindrical collet or end mill holder systems accepting a 5/16 inch shank diameter.

Installation Notes

Installation and tool changes must be performed with the spindle powered down and locked out per shop safety procedures. Ensure the shank is fully seated and the collet or set-screw holder is torqued to the tool holder manufacturer's specification. Verify runout at the cutting edge before production use, as micrograin carbide is sensitive to impact loading from excessive runout. Follow the cutting tool manufacturer's recommended speeds and feeds for the workpiece material and coating type.
