Promax 109-01644 Square End Mill 1/4 in 3-flute Solid Carbide

Product Description

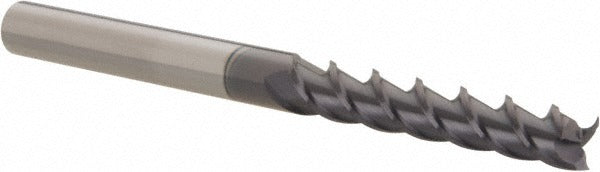

The PROMAX 109-01644 is a solid carbide square end mill designed for precision milling in ferrous and non-ferrous metals. It features a 0.25 inch diameter cutting head, a 1.5 inch length of cut, and a 3.5 inch overall length with a 0.25 inch shank. The three-flute, spiral-flute geometry with a 40-degree helix angle promotes efficient chip evacuation and smooth surface finish. An AlTiN coating improves heat resistance and extends tool life in high-temperature cutting conditions. This end mill is center-cutting, allowing direct plunge entry into material. It is suited for CNC machining centers and manual mills operated by machinists and tooling professionals.

This end mill is well suited for slotting, profiling, and peripheral milling operations on steel, stainless steel, cast iron, and high-temperature alloys. The right-hand cut and right-hand flute configuration is standard for conventional CNC spindle rotation. The micrograin carbide grade supports higher feed rates and longer tool life compared to standard carbide grades. Typical applications include die and mold work, aerospace component machining, and general production milling where tight tolerances and surface finish are required.

Key Features

• Solid micrograin carbide construction for rigidity and wear resistance
• AlTiN coating for elevated heat and oxidation resistance in hard-material cutting
• Three-flute spiral geometry with 40-degree helix for efficient chip removal
• Center-cutting design allows direct plunge milling without pre-drilled entry
• Right-hand cut and right-hand flute for standard CNC spindle compatibility
• Square shank with tight diameter tolerances: +0.000/-0.002 inch mill dia, -0.0001/-0.0004 inch shank dia

Compatibility

Designed as a direct-fit replacement or standard tooling selection for CNC machining centers and manual milling machines accepting a 0.25 inch shank collet or end mill holder.

Installation Notes

Installation is performed by qualified machinists or CNC tooling setters. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the shank fully in the collet or end mill holder and torque the retention mechanism to the machine manufacturer specification. Verify runout with a dial indicator before beginning a cut to confirm proper seating and avoid premature tool wear.
