Promax 102-01616 Corner Radius End Mill 1/4 in 3 Flute Carbide

Product Description

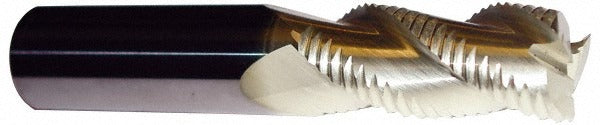

The PROMAX 102-01616 is a solid carbide corner radius end mill designed for precision milling operations in ferrous and non-ferrous materials. It features a 1/4 inch diameter cutting edge with a 3/4 inch length of cut and a corner radius ranging from 0.04 to 0.05 inches, which helps reduce stress concentrations at part corners and extend tool life. The 3-flute geometry paired with a 40-degree high helix angle promotes efficient chip evacuation and smooth surface finishes. A ZrN (zirconium nitride) coating adds hardness and heat resistance at the cutting edge. This end mill is centercutting, allowing direct plunge entry into workpiece material without a pre-drilled hole.

This end mill is suited for CNC machining centers and manual mills in job shop, production, and toolroom environments. It is commonly used for finishing passes, profile milling, and contouring operations where a controlled corner radius is required on part geometry. The regular-length body and 1/4 inch shank diameter make it compatible with standard collet chucks and end mill holders used in light to medium-duty milling applications. Right-hand cut and right-hand flute direction are standard for conventional and climb milling setups.

Key Features

• Solid carbide construction for rigidity and wear resistance
• ZrN coating improves surface hardness and reduces built-up edge
• Corner radius of 0.04 to 0.05 inches reduces stress at milled corners
• 40-degree high helix angle promotes chip evacuation and smooth finishes
• Centercutting design allows direct plunge milling
• 3-flute geometry balances chip load and cutting speed

Compatibility

Designed as a standard Series 102 replacement or direct-use corner radius end mill for 1/4 inch collet chucks and end mill holders in CNC and manual milling applications.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the shank fully into the collet or holder and torque the retention nut per the toolholder manufacturer's specification. Verify runout with a dial indicator before beginning a cut to protect both the tool and the workpiece.
