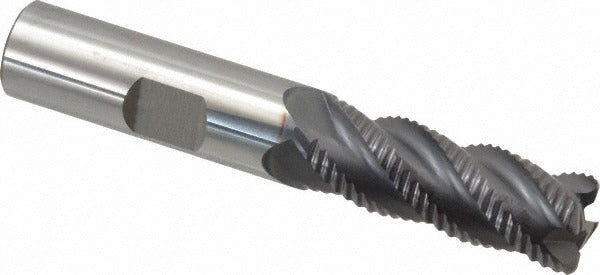

Promax 101-03214 Roughing End Mill 1/2 in 4 Flute Altin

Product Description

The PROMAX 101-03214 is a single-end roughing end mill designed for aggressive material removal in milling applications. Built from solid carbide micrograin substrate and coated with AlTiN (aluminum titanium nitride), it delivers high hardness and heat resistance suited for cutting ferrous and hardened materials. The 1/2 inch diameter tool features 4 flutes with a fine pitch and a high helix angle of 40 degrees, which promotes efficient chip evacuation and reduces cutting forces during roughing passes. The center-cutting geometry allows for plunge entry. Licensed machinists and CNC operators rely on this geometry for high-efficiency roughing in production environments.

This end mill is suited for use on CNC machining centers, knee mills, and other milling equipment capable of handling solid carbide tooling. With a 1-1/4 inch length of cut and 3 inch overall length, it fits standard toolholders and collet chucks using a 1/2 inch shank. It is well-matched for roughing operations in steel, stainless steel, cast iron, and other hard materials where heat generation at the cutting edge is a primary concern. Right-hand cutting and right-hand flute direction are standard for conventional and climb milling setups.

Key Features

• Solid carbide micrograin construction for rigidity and wear resistance
• AlTiN coating provides high-temperature hardness and oxidation resistance
• 40-degree high helix angle promotes efficient chip evacuation during heavy cuts
• Fine pitch, 4-flute design balances material removal rate with surface finish control
• Center-cutting capable - allows direct plunge entry into workpiece
• Shank diameter tolerance of -0.0001 to -0.0004 inches for consistent toolholder fit

Compatibility

Designed as an OEM-style replacement and standard production roughing end mill for 1/2 inch collet chucks and toolholders used on CNC machining centers and manual knee mills.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and locked out before changing tooling. Secure the shank to the full recommended engagement depth in the collet or toolholder, and verify runout with a dial indicator before beginning a cut. Carbide tooling is brittle - avoid dropping or impacting the cutting end against hard surfaces during handling.
