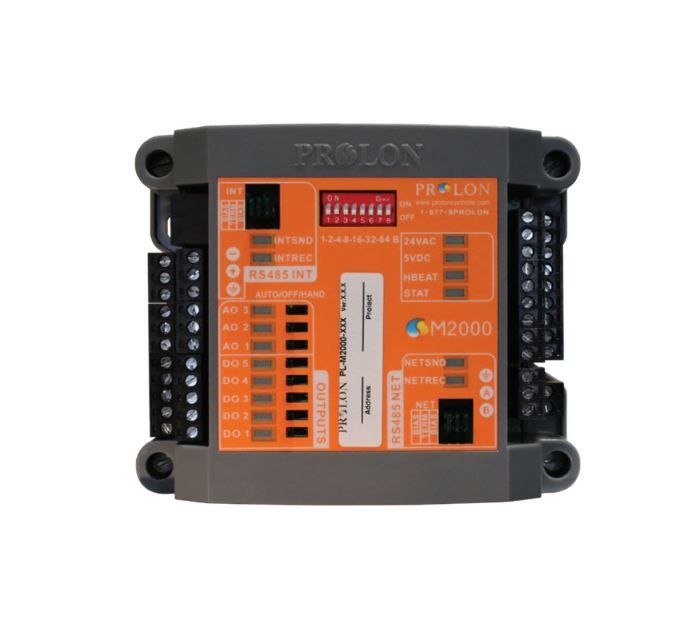

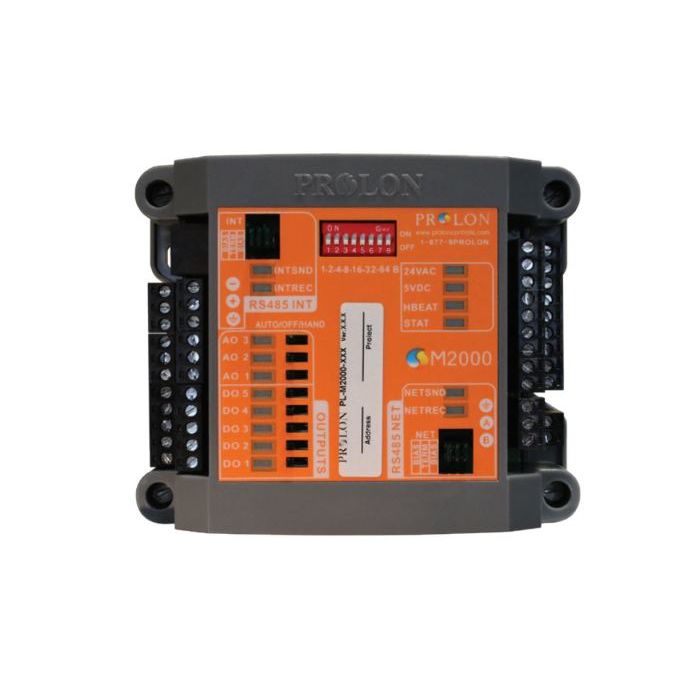

Prolon PL-M2000-RTUS Single Zone Rooftop Controller, 17 IO

Product Description

The Prolon PL-M2000-RTUS is a single zone rooftop controller designed for efficient climate control. It features seventeen input/output points that allow for flexible configuration. This controller is suitable for unitary systems that utilize a single space temperature sensor.

• Supports Modbus RTU communication for integration with existing systems
• Includes a real-time clock with scheduling capabilities
• Offers configurable unoccupied mode sequences for energy savings

Product Highlights

This model maximizes performance through proportional-integral control loops, making it suitable for both heating and cooling applications.

Product Information

Standard Information

• Brand: Prolon
• Part Number: PL-M2000-RTUS

Technical Specifications

• IO: 17
• Type: Configurable
• Ports: RS-485, Removable Screw-Type Terminal Blocks
• Power: 24 VAC, 5 VA Consumption
• Mounting: Panel Mount
• Application: Rooftop
• Operating Conditions: 32 F To 122 F (0 C To 50 C)
• Communication Network: Modbus RTU
