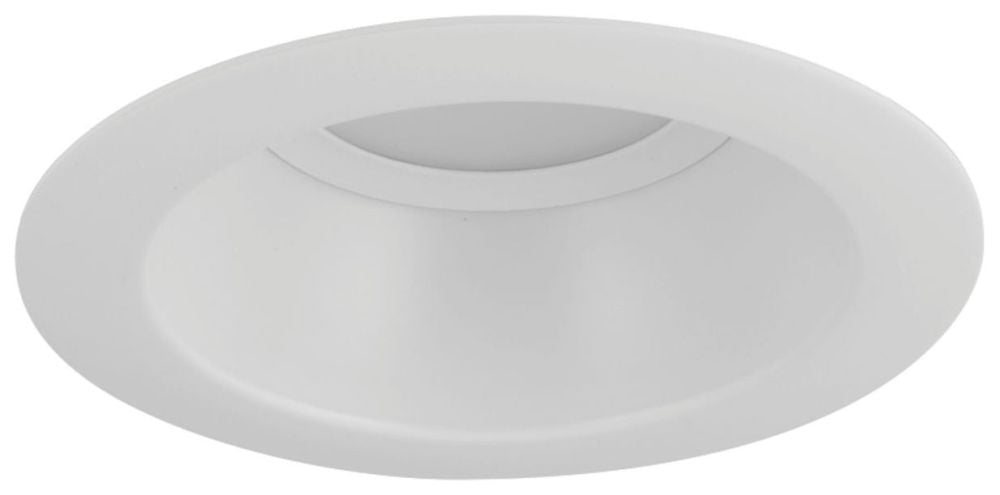

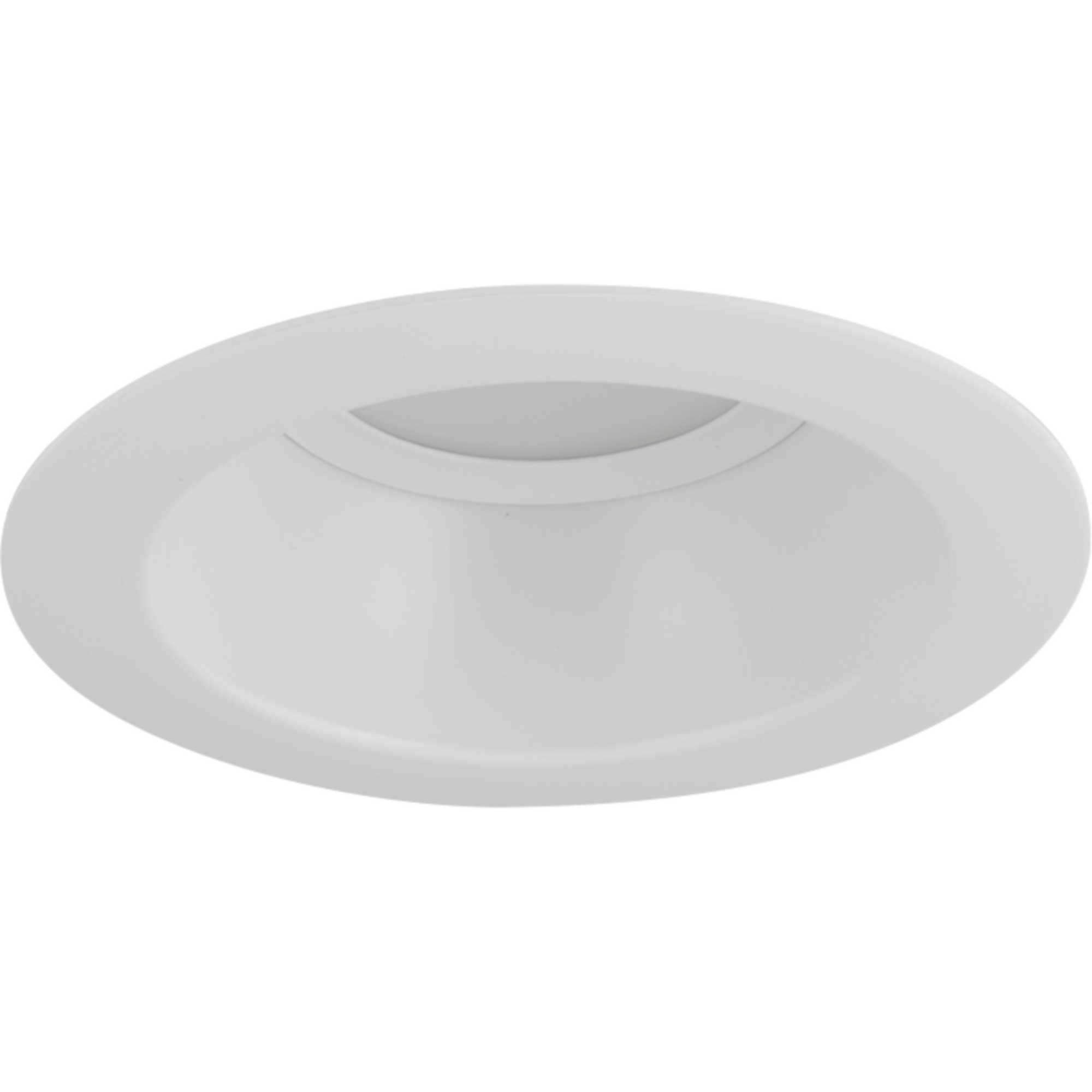

Progress Lighting P8061-28-30K is a 10W integrated 1-light LED recessed ceiling light that installs in most standard 5-inch housings. The trim uses a diffused polycarbonate lens to reduce direct glare and includes a quick link with E26 Edison base adapter for retrofit installs. It is dimmable to 10% with compatible Triac/forward phase dimmers and is suitable for IC or non-IC applications, meeting California Title 24 JA8 requirements.
10W integrated LED delivering 713 initial lumens at 3000K with CRI 90
Diffused polycarbonate lens; push-and-twist installation with three friction spring clips and E26 quick link adapter
Dimmable to 10% with many Triac/forward phase dimmers; wet location and IC/non-IC rated; Title 24 JA8 and cCSAus/Energy Star listed
Product Highlights
10W retrofit 5-inch LED trim, 713 lumens, 3000K, CRI 90, push-and-twist installation with E26 adapter, dimmable to 10%, wet location and Title 24 JA8 compliant.
Product Information
Standard Information
Brand: PROGRESS LIGHTING
Manufacturer Part Number: P8061-28-30K
Country of Origin: China
Technical Specifications
Brand
Progress Lighting
Manufacturer Part Number
P8061-28-30K
Model
P8061 Series
Wattage
10 W
Light Count
1
Lumens
713 delivered lumens
Color Temperature
3000 K
Color Rendering Index (CRI)
90
Input Voltage
120 V
Lens Material
Diffused polycarbonate
Dimmable
Yes
Dimming Protocol
Triac / forward phase (dimmable to 10%)
Compliance / Certifications
California Title 24 - JA8, cCSAus, Energy Star
Application
Suitable for IC or non-IC installations; retrofit and new construction
Installation
Push and twist installation with three friction spring clips
Adapter
Quick link provided for use with E26 Edison base adapter
Fits Housing Size
Fits most competitors' 5-inch recessed housings
Average Rated Life
50,000 hours
Material
Steel
Location Rating
Wet location rated
Dimensions
6.25 in x 6.25 in x 4 in (trim OD x trim OD x height); nominal 5-inch aperture
