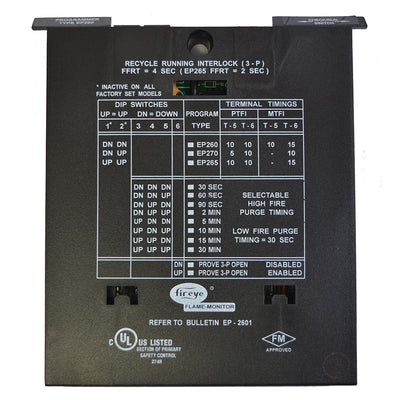

Fireye EP260 Programmer Module 30 Second Purge 10 15 Second TFI Recycle

Product Description

The Fireye EP260 Programmer Module is designed for use with E100 and E110 Flame-Monitor controls. This module offers reliable start-up programming, safe-start-check, and flame monitoring supervision, making it a dependable choice for managing burner operations.

• Compatible with E100 and E110 controls
• 30-second purge time
• 10 and 15-second TFI recycle periods

Product Highlights

The Fireye EP260 Programmer Module provides high-fire purge interlock, low-fire start position, and fuel valve end-switch safety checks. It de-energizes all fuel valve circuits within 4 seconds following a flame failure or at the end of the pilot-trial-for-ignition period. The module also features a modulator motor circuit and a variety of programmable options.

Product Information

Standard Information

• Product Type: Module
• Brand: Fireye

Technical Specifications

• MPN: EP260
• Inter-Purge Time: 30 Seconds
• Shipping Weight: 0.58 pounds
• Dimensions: 12 inches x 12 inches x 6 inches
• Weight: 0.8 pounds
• Country of Origin: United States
