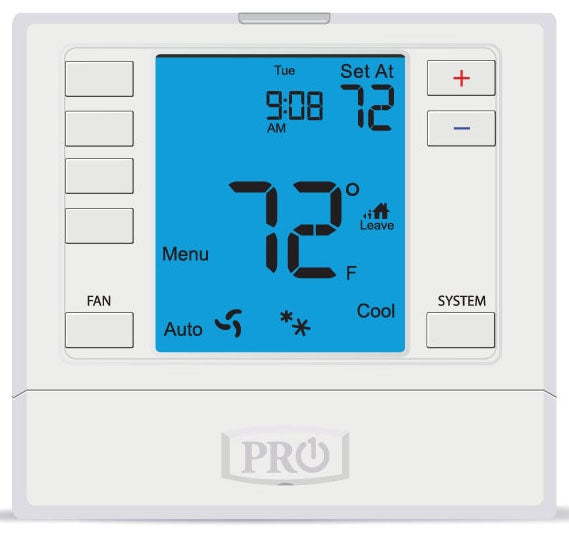

Pro1 IAQ T755S 18 to 30 VAC 50/60 Hz Thermostat 1.5 A 7 or 5/1/1 Day Programmable Non-Programmable

Product Description

The Pro1 IAQ T755S is a versatile thermostat designed for HVAC systems, offering programmable and non-programmable settings. This unit operates at a voltage range of 18 to 30 VAC at 50/60 Hz and can handle a current rating of 1.5 Amps. It supports 2-Heat/2-Cool conventional systems and 3-Heat/2-Cool heat pumps. The thermostat is available with a programmable schedule for up to 7 days, making it suitable for both residential and commercial use.

• Temperature control range from 32 to 105 degrees Fahrenheit
• 6-square-inch display with blue backlight and easy-access battery compartment
• Compatible with indoor and outdoor remote sensors for enhanced control

Product Highlights

This thermostat ensures precise temperature regulation through its advanced features. It allows users to set dual-fuel balance points and is designed for compatibility with various HVAC systems.

Product Information

Standard Information

• Manufacturer: Pro1 IAQ
• Model Number: T755S

Technical Specifications

• Voltage Rating: 18 to 30 VAC at 50/60 Hz
• Current Rating: 1.5 Amp Load Terminal
• Temperature Rating: 32 to 105 degrees Fahrenheit
• Size: 4.7 inches Width x 1.1 inches Depth x 4.4 inches Height
• Display Type: 6 Square Inch
• Humidity Control: 90% Non-Condensing
