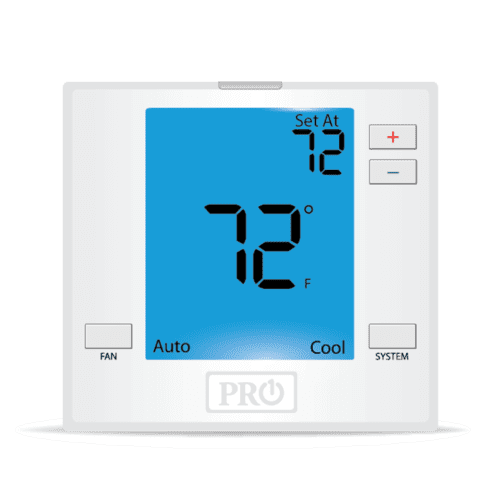

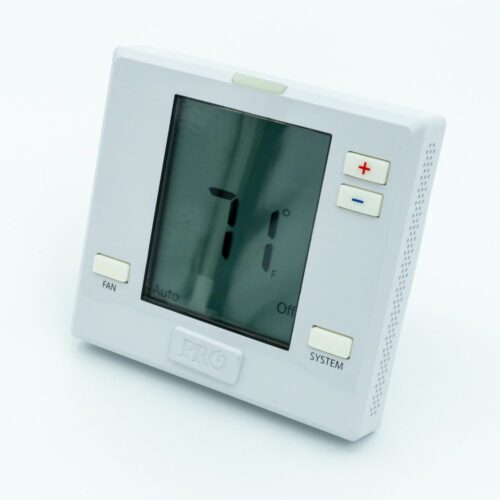

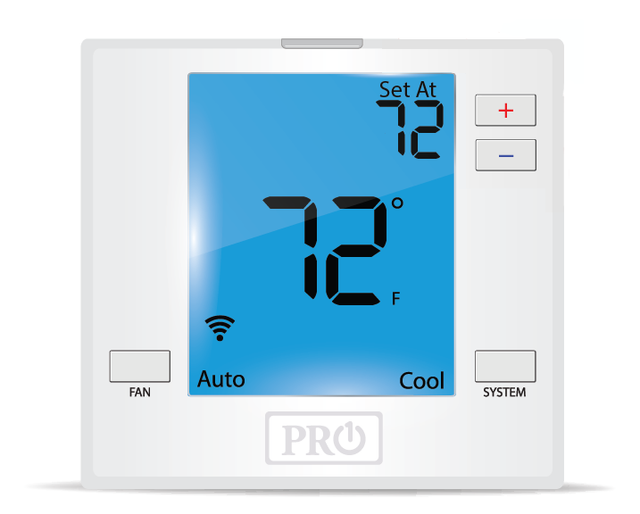

PRO1 IAQ T751I Universal Thermostat

Product Description

The PRO1 IAQ T751I is a universal thermostat built for both conventional and heat pump systems. It includes a digital display with a blue backlight, allowing for easy readability. The thermostat features adjustable heating and cooling swing settings to optimize temperature control.

• Supports up to 4 Heat/2 Cool stages for versatile system compatibility.
• Room temperature calibration for precise control.
• Can be powered by either batteries or hardwired connections.

Product Highlights

This thermostat is user-friendly and comes equipped with color-coded terminal blocks for simple installation. It can be conveniently mounted on walls or junction boxes. The T751I also features selectable compressor delay protection.

Product Information

Standard Information

• Manufacturer Part Number: T751I
• System Type: Heat Pump Systems

Technical Specifications

• Programmability: Programmable
• Input Voltage: 18 to 30 VAC
• Power Source: Hardwired or Battery
• Efficiency Standby Power: 0.44 W
• Temperature Display Range: 41°F to 95°F (5°C to 35°C)
• Temperature Control Range: 44°F to 90°F (7°C to 32°C)
• Display Accuracy: ±1°F
• Operating Temperature: 32°F to +105°F (0°C to +41°C)
• Dimensions: 4.7W x 4.4H x 1.1D
