Pro1 T705 Programmable Thermostat 0.2 to 2 deg F Differential 5-1-1 Days Programs per Week

Product Description

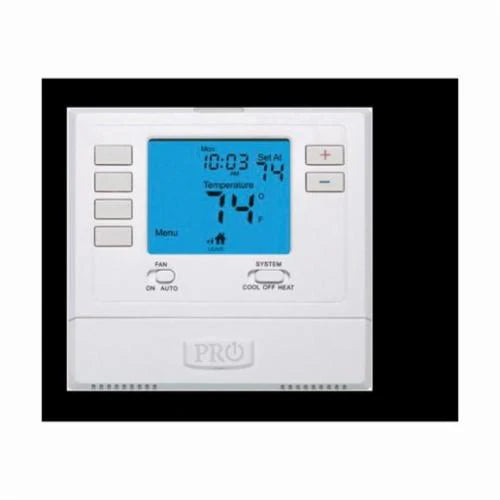

The Pro1 T705 is a programmable thermostat designed for residential applications. This thermostat offers a differential range of zero point two to two degrees Fahrenheit, allowing for precise temperature control. It provides four temperature settings per day and supports five-one-one day programs each week. The T705 features terminals for RH, RC, C, Y, W, G, B, and O, making it versatile for different heating and cooling systems.

• Easy menu-driven programming
• Four square-inch LCD display with blue backlight
• Battery or hardwired power source option

Product Highlights

This thermostat accommodates both electric and gas systems. It includes adjustable heating and cooling swing settings as well as room temperature calibration adjustments. A five-minute compressor delay protection is selectable for optimized operation.

Product Information

Standard Information

• Brand: Pro1
• MPN: T705

Technical Specifications

• Display Type: 4 square-inch LCD
• Voltage Rating: 24 VAC
• Power Source: Battery/Hardwired
• Ambient Temperature Range: 32 to 105 deg F
• Control Range: 44 to 90 deg F
• Humidity Range: 90% non-condensing maximum
• Temperature Settings: 4 per day
• Programs per Week: 5-1-1 Days
