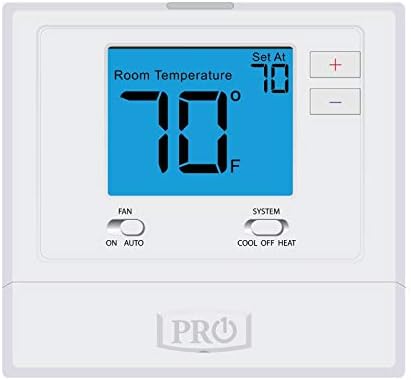

Pro1 Iaq T701 Thermostat 24 Volts (4-inch) MLT701

Product Description

The Pro1 IAQ T701 is a non-programmable wall thermostat that provides basic single-stage temperature control for heating and cooling systems. The T701 operates on 24 volts with battery backup (2 AA) and features a 4-inch LCD display with blue backlight, separated heating and cooling swing adjustments, room temperature calibration, and wired BACnet MS/TP connectivity for integration with building controls.

• 4-inch LCD display with blue backlight; push-button control and easy-access battery compartment
• Operates on 24 volts with battery backup (2 AA); tolerates up to 90% non-condensing humidity
• Wired connectivity (BACnet MS/TP), color-coded terminal block (Rc, Rh, C, W, Y, G, B, O), and mounts to wall or junction box

Product Highlights

Non-programmable single-stage thermostat with 4-inch LCD, battery backup, BACnet MS/TP connectivity, and separate heat/cool adjustments

Product Information

Standard Information

• Brand: PRO1 IAQ
• Manufacturer Part Number: T701/ PROT701

Technical Specifications

• Brand: PRO1 IAQ
• Model Name: T701
• Manufacturer Part Number: T701
• Part Number: T701
• Input Voltage: 24 Volts
• Power Source: 24V hardwired or battery backup (2 x AA)
• Battery Backup: 2 AA batteries (included)
• Display Type: LCD
• Screen Size: 4 inches
• Backlight: Blue
• Control Type: Non-Programmable
• Controller Type: Push Button
• Mounting Type: Wall mount (mounts on wall or junction box)
• Connectivity Technology: Wired
• Connectivity Protocol: BACnet MS/TP
• Terminals: Rc, Rh, C, W, Y, G, B, O
• Stages (Conventional): 1H/1C
• Stages (Heat Pump): 1H/1C
• Humidity Tolerance: 90% non-condensing
• Dimensions: 4"L x 4"W x 1"H
• Material: Plastic
• Finish Type: Glossy
• Special Features: Separate heating and cooling swing adjustments; Room temperature calibration adjustments; Separate B and O terminals; Easy color-coded terminal blocks
• System Switches: Cool-Heat-Off
• Fan Switch: On-Auto
• Millivolt Heating: Yes
• Programming: None
• Wall Plate: PD411073
• Replaces/Equivalent Parts: 411060, 411074, MLT701, PD411060
