Pro1 Iaq PROT701i T701i Wifi Thermostat

Product Description

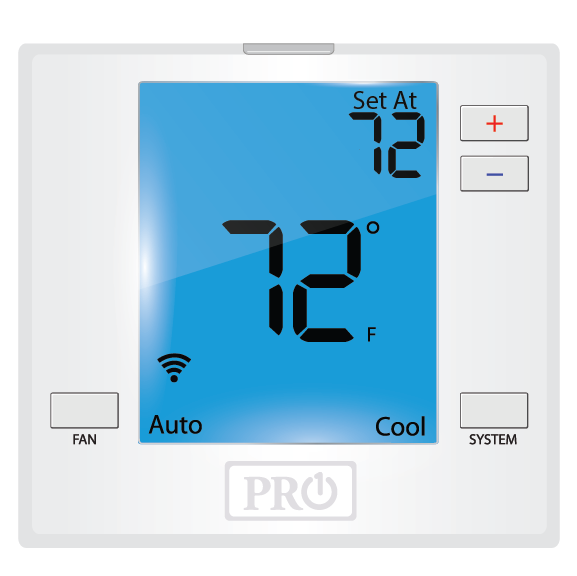

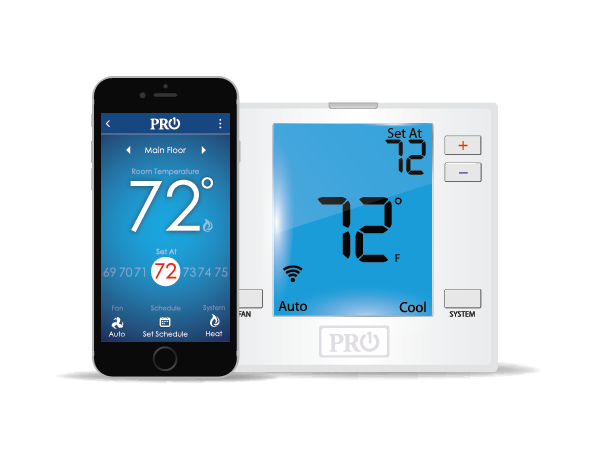

The PRO1 IAQ PROT701i WIFI Thermostat features a 4 sq. inch display and blue backlight. Configurable for electric or gas systems, it offers separate heating and cooling swing (cycle rate) adjustments. Ideal for HVAC control, this thermostat provides smart/remote temperature management via Wi-Fi connectivity.

• 4 sq. inch display
• Blue backlight
• Glow in the dark light button

Product Highlights

Offers configurable electric or gas systems and separate heating and cooling swing adjustments.

Product Information

Standard Information

• Brand: PRO1 IAQ
• Manufacturer Part Number: PROT701i

Technical Specifications

• Brand: PRO1 IAQ
• Model Name: PRO1 IAQ T701i
• Controller Type: Application
• Special Feature: Auto Changeover
• Specific Uses For Product: HVAC Control
• Temperature Control Type: smart/remote
• Connectivity Technology: Wi-Fi
• Power Source: Electric
• Voltage: 24 Volts
• Display Type: Digital
• Screen Size: 4 Inches
• Control Type: Button Control
• Control Method: App
• Connectivity Protocol: Wi-Fi
• Mounting Type: Surface Mount
• Backlight: Yes
• Material Type: Plastic
• Model Number: T701i
• Item Type Name: WIFI Thermostat
• Unit Count: 1.0 Count
• Configuration: Electric or Gas configurable
• Swing Adjustments: Seperate heating and cooling swing (cycle rate) adjustments
• Room Temperature Calibration: Room temperature calibration adjustments
• Compressor Delay: 5 minute compressor delay protection (selectable on or off)
• Label System: Simple private label badge system
• Wiring: Easy wire color coded terminal blocks
• Sub-Base: Universal sub-base
• Mounting: Mounts on wall or junction box
• Power: 24v power
• The display range of temperature: 41°F to 95°F (5°C to 35°C)
• The control temperature range: 44°F to 90°F (7°C to 32°C)
• Load rating: 1 amp per terminal, 1.5 amp maximum all terminals combined
• Display accuracy: ± 1 °F
• Swing (cycle rate or differential): Heating is adjustable from 0.2°F to 2.0°F - Cooling is adjustable from 0.2°F to 2.0°F
• Operating ambient: 32° to +105° (0° to + 41°C)
• Operating humidity: 90% non-condensing maximum
