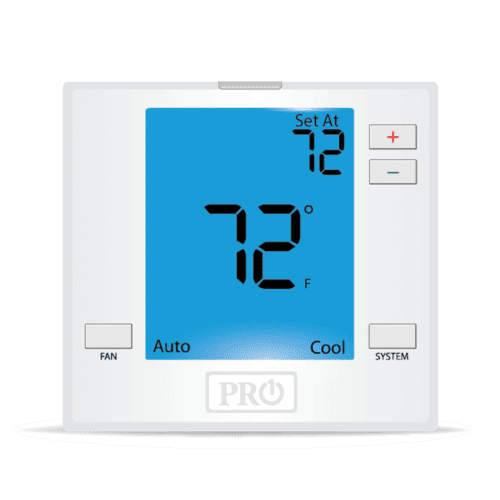

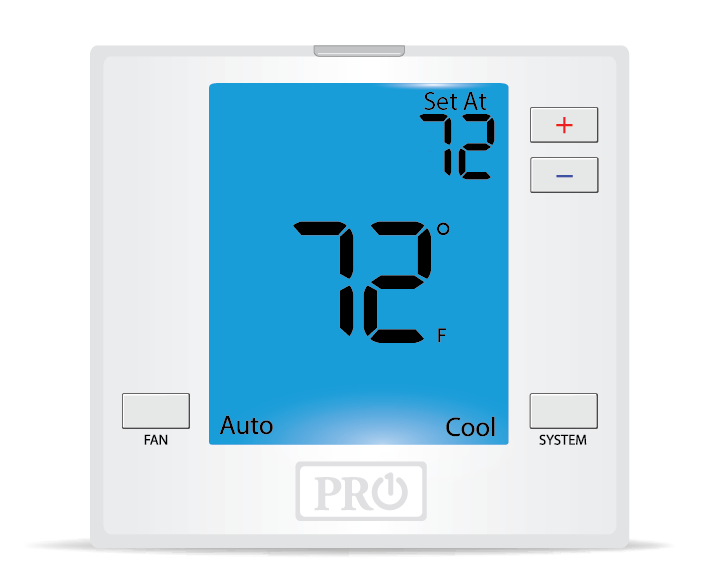

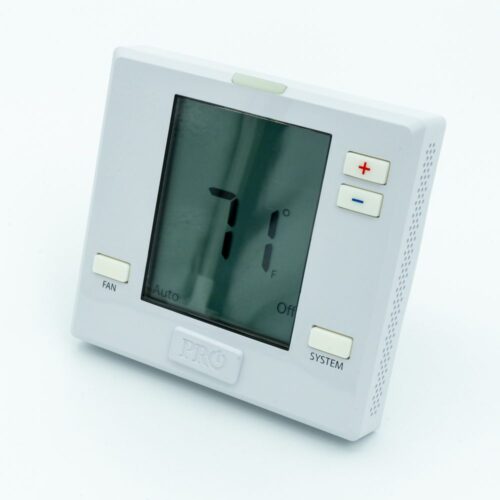

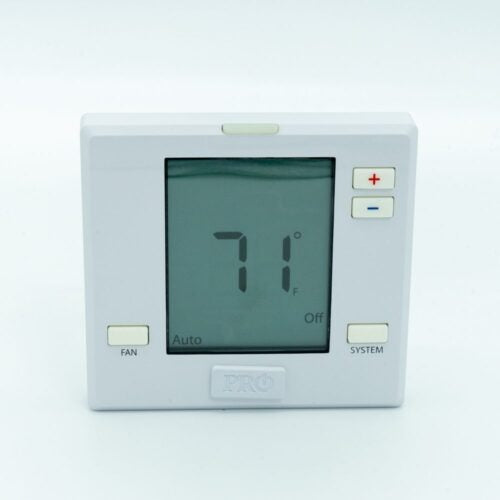

PRO1 IAQ PRO1-T751 Universal Thermostat

Product Description

The PRO1 IAQ PRO1-T751 is a universal thermostat designed for compatibility with electric and gas systems. It supports up to two heating and two cooling stages for conventional setups and three heating stages along with two cooling stages for heat pump configurations. The device features a seven square inch display that is easy to read, featuring a blue backlight and a glow-in-the-dark button for nighttime visibility.

• Supports multiple system types for flexibility.
• Includes a delay feature to protect the compressor.
• Simplified wiring with color-coded terminal blocks.

Product Highlights

This thermostat allows for 7-day programming or non-programmable operation with adjustable swing settings for heating and cooling, ensuring customized comfort throughout any space.

Product Information

Standard Information

• Brand: PRO1 IAQ
• MPN: PRO1-T751

Technical Specifications

• Display Temperature Range: 41°F to 95°F (5°C to 35°C)
• Control Temperature Range: 44°F to 90°F (7°C to 32°C)
• Load Rating: 1 amp per terminal, 1.5 amp maximum
• Display Accuracy: ± 1°F
• Swing Adjustments: Heating adjustable from 0.2°F to 2.0°F, Cooling adjustable from 0.2°F to 2.0°F
• Power Source: 18 to 30 VAC, NEC Class II, 50/60 Hz
• Operating Ambient: 32°F to 105°F (0°C to 41°C)
• Operating Humidity: 90% non-condensing maximum
• Dimensions: 4.7 inches wide x 4.4 inches high x 1.1 inches deep
• Power Type: Battery or 24V power
• Warranty: 5 years
• Mounting: Wall or junction box
• Stages Supported: 3 Heat/2 Cool
• Terminal Designations: C, G, O, Rh, W1, Y1
