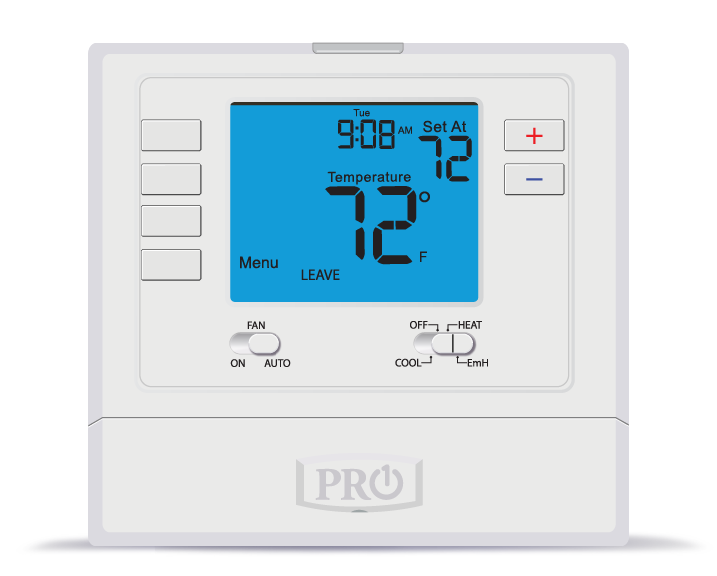

PRO1 IAQ PRO1-T725 Programmable Thermostat - 2H/1C, 7-Day/5-1-1

Product Description

The PRO1 IAQ T725 is a programmable thermostat suitable for 2 Heat/1 Cool systems. It supports seven-day programming or five-one-one day programming with simple menu-driven options. The easy-to-read display, which measures four square inches, has a blue backlight and a glow-in-the-dark light button to enhance visibility. This thermostat operates effectively with electric and gas configurations while allowing adjustments for heating and cooling swing.

• Temperature display ranges from 41°F to 95°F (5°C to 35°C).
• Includes a filter change indicator and room temperature calibration.
• Powered by battery or 24V, with easy installation considerations.

Product Highlights

This thermostat offers flexible control and programming to enhance energy efficiency.

Product Information

Standard Information

• Brand: PRO1 IAQ
• MPN: PRO1-T725

Technical Specifications

• Temperature Display Range: 41°F to 95°F (5°C to 35°C)
• Control Range: 44°F to 90°F (7°C to 32°C)
• Load Rating: 1 amp per terminal, 1.5 amp maximum combined
• Display Accuracy: ± 1 °F
• Swing Adjustable: Heating and cooling from 0.2°F to 2.0°F
• Power Source: 18 to 30 VAC, also works with 2 AA batteries
• Operating Ambient: 32°F to +105°F (0°C to +41°C)
• Humidity Limit: 90% non-condensing
• Dimensions: 4.7 inches wide x 4.4 inches high x 1.1 inches deep
• Warranty: 5 years
• Programmability: 5-1-1 Day
• Mounting Type: Junction Box
