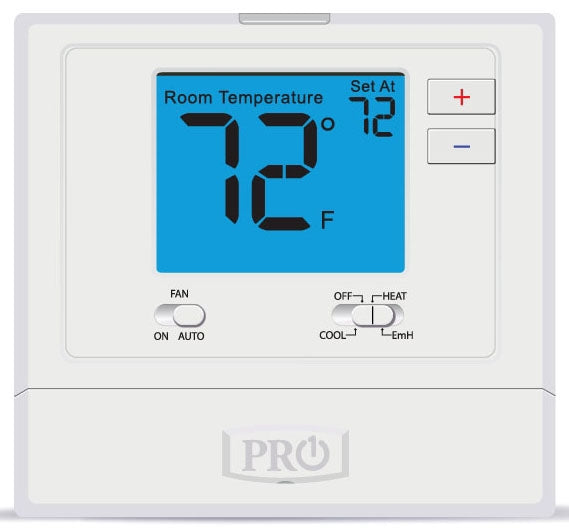

Pro1 T721 Non-Programmable Thermostat 18 to 30 VAC 50/60 Hz 2-Heat/1-Cool Heat Pump

Product Description

The Pro1 T721 is a non-programmable thermostat designed for heat pump systems. It operates at a voltage range of 18 to 30 volts AC and handles 2 heat and 1 cool configurations. This thermostat supports a maximum current rating of 1.5 amps, making it ideal for efficient climate control.

• Compatible with 2 heat and 1 cool configuration
• Easy installation with color-coded terminal wiring
• Indoor temperature range of thirty-two to one hundred five degrees Fahrenheit

Product Highlights

This thermostat features a simple backlit display for easy reading. It uses battery or hardwired power methods and has a compartment for two AA batteries. Its compact dimensions allow for easy mounting on walls or junction boxes.

Product Information

Standard Information

• Brand: Pro1 IAQ
• MPN: T721

Technical Specifications

• Voltage Rating: 18 to 30 VAC
• Current Rating: 1.5 Amp Load Terminal
• Temperature Rating: 32 to 105 Deg F
• Size: 4.7 Inch Width x 1.1 Inch Depth x 4.4 Inch Height
• Battery Type: (2) AA Alkaline
• Display Type: 4 Square Inch
• Accuracy: +/-1 Deg F
• Operating Humidity: 90 Percent RH (Non-Condensing)
