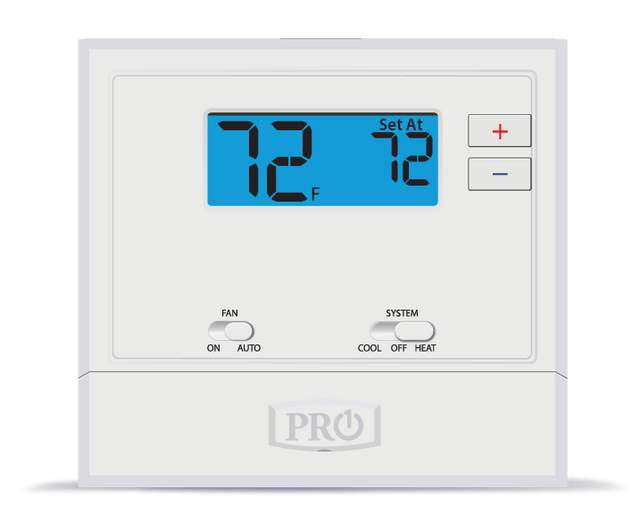

PRO1 IAQ PRO1-T601-2 Single-Stage Non-Programmable Thermostat

Product Description

The PRO1 IAQ PRO1-T601-2 is designed for single-stage heating and cooling systems. It features a two-square-inch blue backlit display for easy viewing of settings. The thermostat can operate using two AA batteries or a twenty-four-volt hardwired connection. Users can adjust heating and cooling cycle rates, which range from zero point two degrees Fahrenheit to two degrees Fahrenheit.

• Easy-to-read blue backlit display.
• Adjustable cycle rates for heating and cooling.
• Compatible with battery or hardwired power sources.

Product Highlights

Product Information

Standard Information

• Control Type: Digital
• Stages of Heat: One

Technical Specifications

• Display Range: Forty-one degrees Fahrenheit to ninety-five degrees Fahrenheit (five degrees Celsius to thirty-five degrees Celsius)
• Control Range: Forty-four degrees Fahrenheit to ninety degrees Fahrenheit (seven degrees Celsius to thirty-two degrees Celsius)
• Display Accuracy: Plus or minus one degree Fahrenheit
• Operating Humidity: Maximum ninety percent non-condensing
• Power Source: Eighteen to thirty VAC, battery power from two AA alkaline batteries
• Mount: Wall or junction box
• Dimensions: Width four point seven inches, height four point four inches, depth one point one inches
• Warranty: Five years
