Product Description

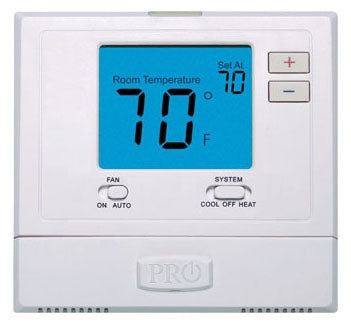

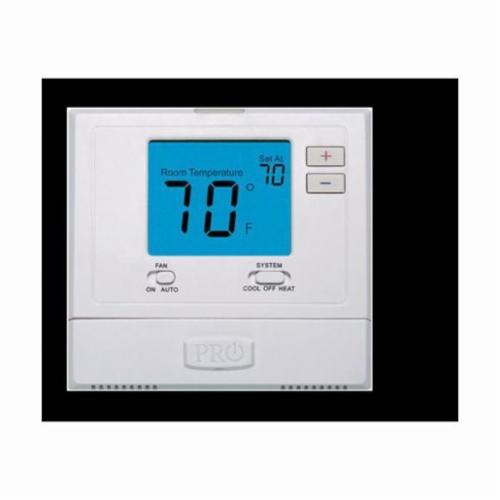

The Pro1 T701 thermostat is a non-programmable device designed to control one heat and one cool system. It operates with a voltage rating of eighteen to thirty volts alternating current at fifty to sixty hertz. The unit is equipped with a clear four-square inch display, making it easy to read and adjust temperature settings. The installation is straightforward, fitting standard junction boxes and walls.
- Non-Programmable, 1 Heat/1 Cool
- Voltage Rating: 18 to 30 VAC
- Current Rating: 1.5 Amp Load Terminal
Product Highlights
The Pro1 T701 offers reliable performance and is suitable for residential applications, keeping your environment comfortable effectively.
Product Information
Standard Information
-
Manufacturer: Pro1 IAQ
-
MPN: T701
Technical Specifications
-
Temperature Rating: 32 to 105 Deg F
-
Battery Type: (2) AA Alkaline
-
Operating Humidity: 90 Percent RH (Non-Condensing)
-
Display Type: 4 Square Inch
-
Accuracy: +/-1 Deg F
-
Power Method: Battery/Hardwired
-
Terminal Designation: RH, RC, C, Y, W, G, B, O
