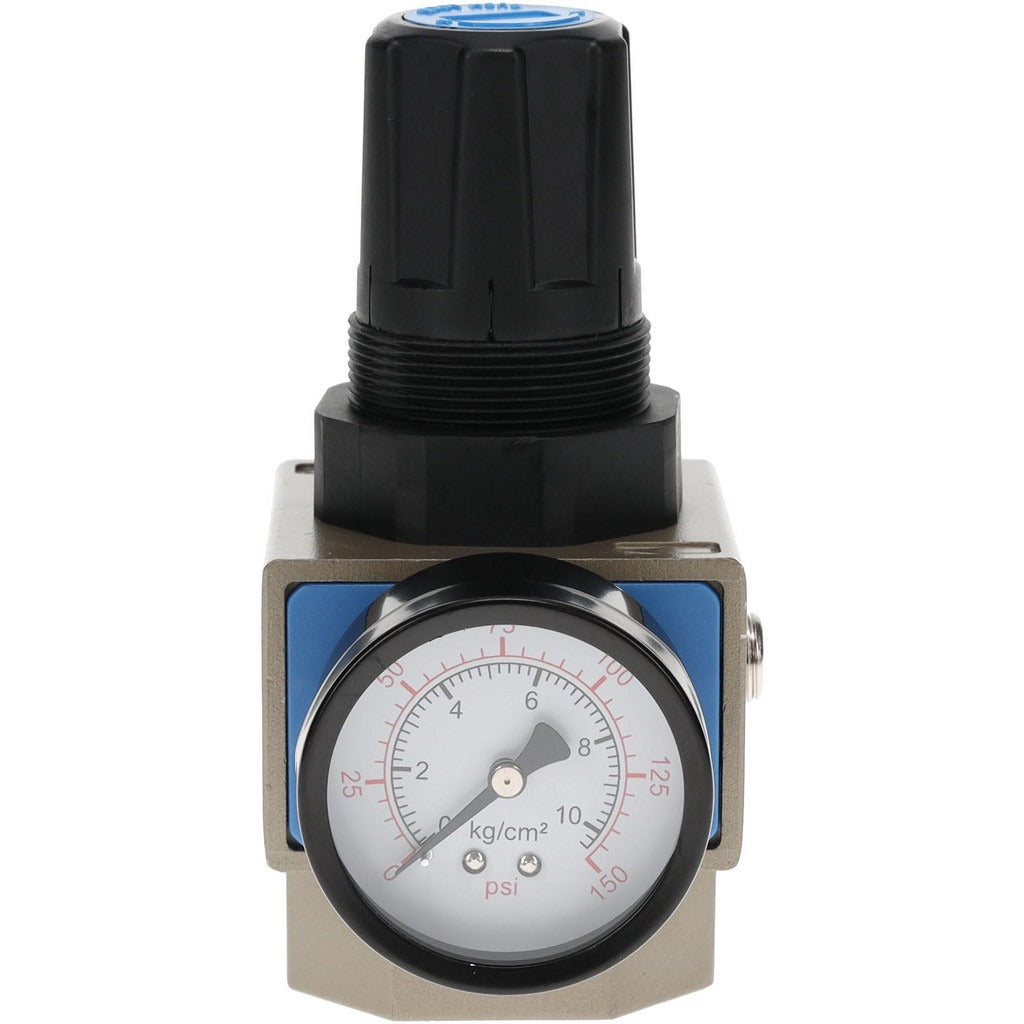

Pro-source UR-02N Air Regulator 1/4 Npt 213 Psi 74.2 Cfm

Product Description

The PRO-SOURCE UR-02N is an intermediate compressed air regulator designed to maintain consistent downstream pressure in pneumatic systems. Built from aluminum, it accepts a 1/4 inch NPT port and handles a maximum supply pressure of 213 psi, with an adjustable output range of 0 to 140 psi. The UR-02N includes a relief function to vent excess pressure and supports a flow rate of 74.2 CFM, making it well-suited for moderate to high-demand compressed air applications. It features a modular connection design, allowing integration into modular filter-regulator-lubricator (FRL) assemblies. Licensed pneumatic technicians, industrial maintenance mechanics, and HVAC service professionals typically install this type of regulator in compressed air distribution systems.

The UR-02N intermediate regulator is intended for use in shop air lines, pneumatic tool supply systems, and compressed air distribution setups where precise pressure regulation is required. Its modular connection capability makes it practical for inline installation within multi-stage air preparation assemblies. At 74.2 CFM, it supports applications with substantial air demand. The aluminum body keeps weight low at 1.63 pounds while providing adequate durability for typical shop and light industrial environments. No pressure gauge is included with this unit, though a 1/4 inch gauge port is available if a gauge is needed downstream.

Key Features

• Intermediate regulator type with adjustable output range of 0 to 140 psi
• Maximum supply pressure rating of 213 psi
• 74.2 CFM air flow capacity for moderate to high-demand pneumatic systems
• Built-in relief function vents excess downstream pressure automatically
• Modular connection design for integration into FRL assemblies
• Aluminum body construction — lightweight at 1.63 pounds
• 1/4 inch gauge port included for optional downstream gauge installation

Compatibility

Designed as an intermediate-style compressed air regulator with modular connection support, compatible with standard 1/4 inch NPT compressed air distribution systems and modular FRL assembly configurations.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician. Before servicing or installing, depressurize the entire upstream air supply line and verify the line is fully isolated. Apply appropriate thread sealant to NPT connections per manufacturer and facility guidelines, and verify all fittings are leak-free before returning the system to full operating pressure. If integrating into a modular FRL stack, confirm port alignment and modular interface compatibility before assembly.
