Pro-source UFRL-06N Frl Combination Unit 3/4 Npt 280 Scfm

Product Description

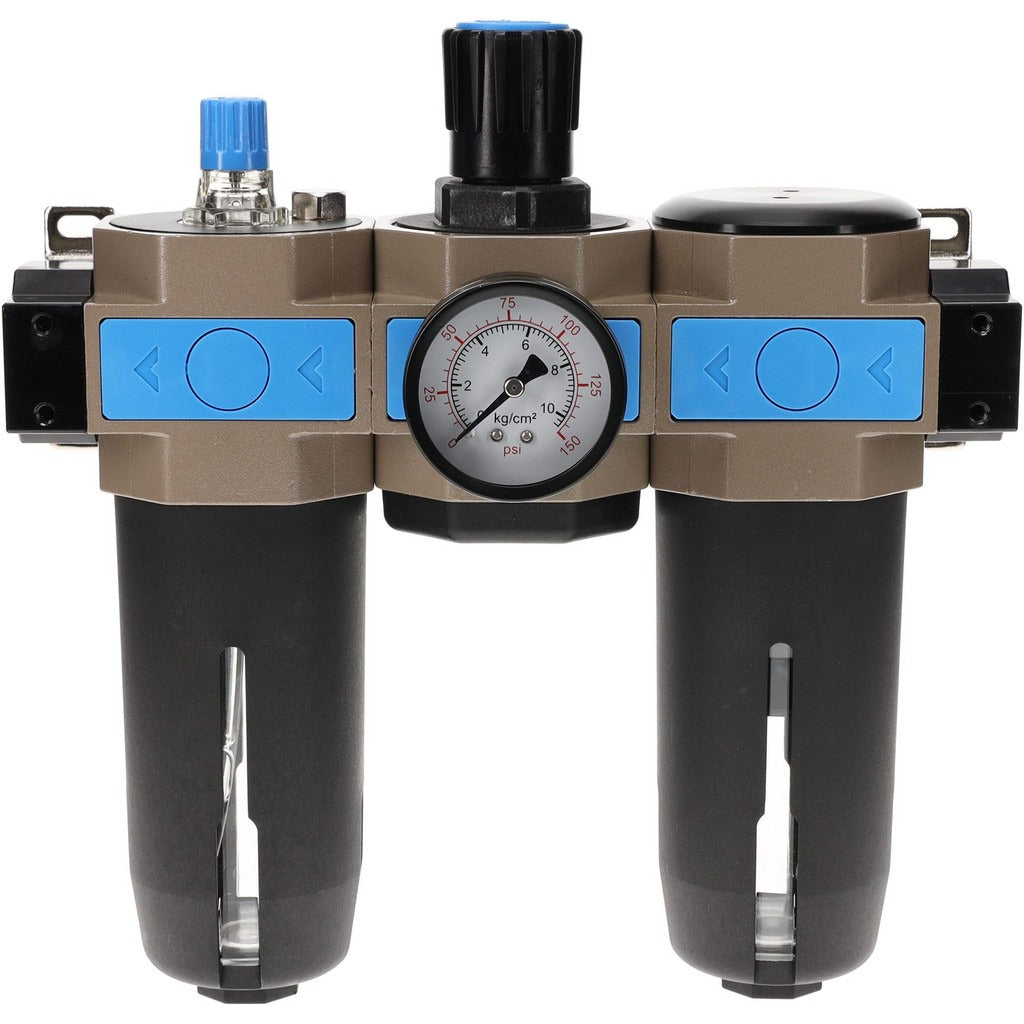

The PRO-SOURCE UFRL-06N is a heavy-duty FRL combination unit that integrates a filter, regulator, and lubricator into a single inline assembly for compressed-air systems. It handles up to 280.37 SCFM with a maximum supply pressure of 145 psi, making it well-suited for high-demand industrial and commercial pneumatic applications. The unit ships with a pressure gauge, sight glass, bowl guard, and mounting brackets included. A 0.5-micron filter rating removes particulate and moisture upstream of downstream tooling and controls. A semi-automatic drain reduces maintenance intervals on the filter bowl. Licensed pneumatic technicians and industrial maintenance mechanics are the primary installers.

This FRL unit is designed for inline installation on compressed-air distribution lines with 3/4 NPT ported connections. It fits industrial facilities, manufacturing cells, automotive shops, and commercial maintenance environments where air quality and regulated pressure are required upstream of pneumatic tools, actuators, valves, or control equipment. The modular connection design allows it to be paired with additional FRL components or expansion modules where system requirements change. The aluminum filter bowl and separate lubricator bowl provide accessible servicing without removing the unit from the line.

Key Features

• 280.37 SCFM flow capacity supports high-demand pneumatic circuits
• 145 psi maximum supply pressure rating for standard industrial compressed-air systems
• 0.5-micron filter element removes fine particulate from the air supply
• Semi-automatic drain on the filter bowl reduces manual maintenance frequency
• Pressure gauge, sight glass, bowl guard, and mounting brackets all included
• Modular connection design allows inline expansion with additional FRL components
• Separate filter bowl capacity of 7.1 oz and lubricator bowl capacity of 8.0 oz

Compatibility

Designed as an OEM-style replacement or new-installation FRL combination unit for compressed-air systems using 3/4 NPT ported connections in industrial and commercial environments.

Installation Notes

Installation is typically performed by a qualified pneumatic or industrial maintenance technician. Depressurize and lock out the compressed-air supply before installation or service per applicable OSHA lockout/tagout procedures. Install with airflow direction matching the directional arrow marked on the body, and orient the bowls downward for proper drainage and lubricator function. Verify downstream pressure requirements before setting the regulator, and confirm the 1/4 NPT gauge port is plugged or fitted if the included gauge is not used.
