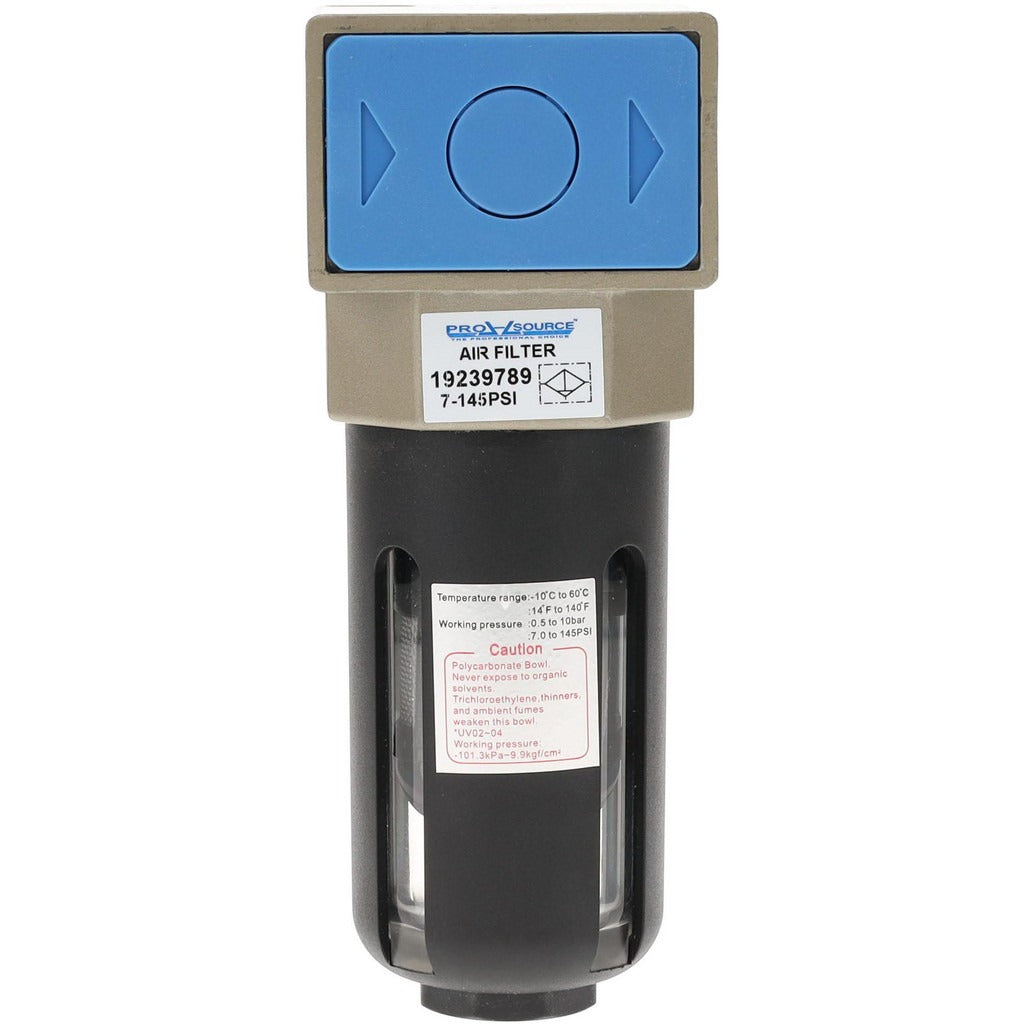

Pro-source UF-02ND Intermediate Compressed Air Filter

Product Description

The PRO-SOURCE UF-02ND is an intermediate compressed air filter designed to remove particulate contamination from compressed air lines in industrial and commercial pneumatic systems. With a 5 micron polyethylene filter media, it captures fine particles before they reach downstream tools, valves, and equipment. The unit flows up to 86.16 SCFM through a 1/4 in NPT port, making it well suited for moderate-flow pneumatic circuits. The polycarbonate bowl with integrated sight glass allows quick visual checks of bowl level and contamination without removing the assembly. An automatic drain eliminates manual draining of collected moisture and debris. Licensed HVAC, plumbing, and mechanical contractors as well as industrial maintenance technicians are the typical installers.

The UF-02ND fits into modular filter-regulator-lubricator (FRL) lineups thanks to its modular connection design. It is appropriate for use in light to medium industrial environments, production lines, maintenance shops, and equipment rooms where clean, dry compressed air is required by downstream tools or control systems. The bowl guard provides added protection to the polycarbonate bowl in applications where the unit may be exposed to impact. The unit is rated down to 14 degrees F minimum operating temperature, keeping it viable in unheated spaces during cold-weather operation.

Key Features

• 5 micron polyethylene filter media removes fine particulate from compressed air supply lines
• Automatic drain continuously evacuates collected liquid without manual intervention
• Polycarbonate bowl with sight glass allows visual inspection of bowl condition at a glance
• Bowl guard shields the polycarbonate bowl from accidental impact damage
• Modular connection supports integration into FRL station assemblies
• Aluminum body construction for durability in industrial service environments

Compatibility

Designed as an OEM-style replacement or new-installation intermediate compressed air filter for 1/4 in NPT compressed air systems requiring 5 micron filtration with automatic drain and modular FRL compatibility.

Installation Notes

Installation is performed by qualified industrial mechanics or pneumatic system technicians. Depressurize and lock out the compressed air supply before removing any existing filter or installing this unit. Confirm downstream tools and valves are rated for the supply pressure before returning the system to service. Follow applicable OSHA and facility safety standards for compressed air work.
