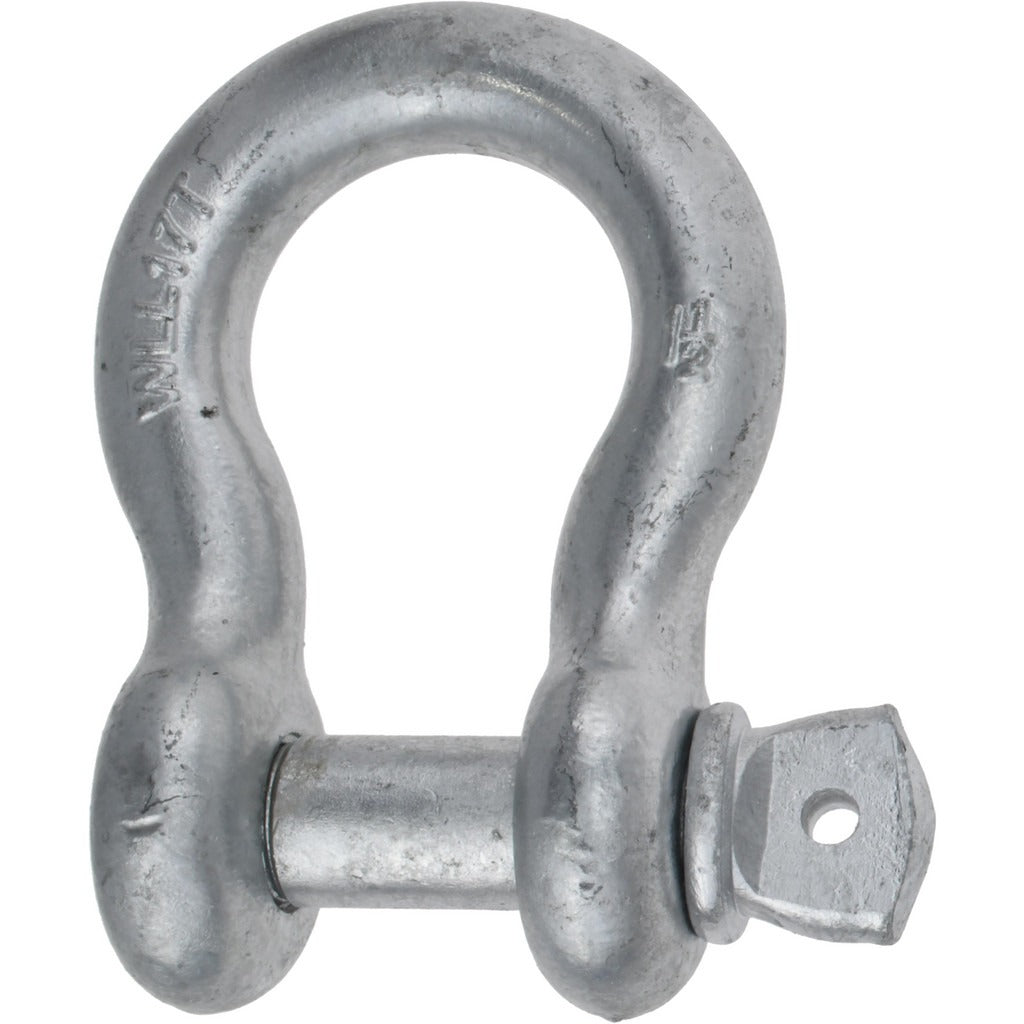

Pro-source PSXK020 Anchor Shackle Screw Pin 34000 Lb

Product Description

The PRO-SOURCE PSXK020 is a heavy-duty screw pin anchor shackle rated for a 34,000-pound load capacity. Constructed from carbon steel with a galvanized finish, this shackle provides corrosion resistance in demanding outdoor and industrial environments. The screw pin design allows for quick connection and removal without specialized tools. With a 1.625-inch pin diameter and a jaw inside height of 5.75 inches, this shackle is built to handle large-diameter chain and rigging hardware. Riggers, millwrights, and construction crews use this shackle in lifting, pulling, and securing applications where a reliable, high-capacity connector is required.

This anchor shackle is suited for use in heavy rigging, marine, construction, and industrial lifting operations. The anchor-style bow provides multi-directional load capability, making it appropriate for slings, chains, and wire rope rigging where the load direction may shift. It accommodates chain sizes up to 1.5 inches. At 17.2 pounds, this is a full-size industrial shackle intended for permanent or semi-permanent rigging installations rather than light-duty work. Licensed riggers and qualified personnel should evaluate load ratings and inspection intervals per applicable standards before putting the shackle into service.

Key Features

• 34,000-pound load capacity for heavy industrial and rigging applications
• Carbon steel construction with galvanized finish for corrosion resistance
• Screw pin design allows tool-free connection and removal
• 1.625-inch pin diameter handles large chain and rigging hardware
• Anchor-style bow supports multi-directional loading
• Compatible with 1.5-inch chain size

Compatibility

Designed as an OEM-style replacement anchor shackle for heavy rigging, lifting, and tie-down applications requiring a 1.5-inch chain size and screw pin configuration.

Installation Notes

Installation and inspection of heavy rigging hardware should be performed by a qualified rigger in accordance with ASME B30.26 and applicable OSHA rigging standards. Before attaching, visually inspect the shackle body, pin, and threads for cracks, deformation, or corrosion. Thread the screw pin fully and back it off one quarter turn to seat correctly, then secure the pin against rotation using a cotter pin or wire mouse if required by the application. Never side-load a screw pin shackle beyond its rated capacity or use it in a configuration not supported by the published load rating.
