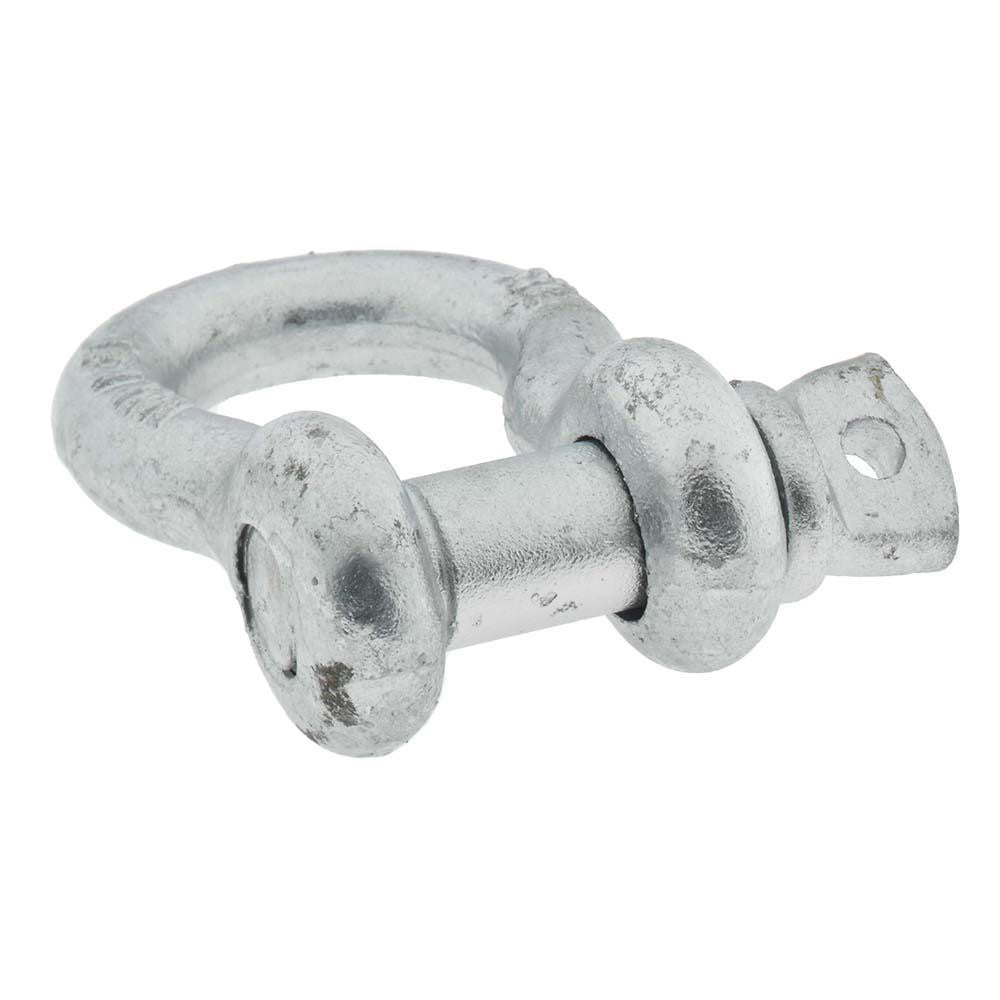

Pro-source PSXK012 Anchor Shackle Screw Pin Galvanized

Product Description

The PRO-SOURCE PSXK012 is a screw pin anchor shackle manufactured from alloy steel with a galvanized finish. Anchor shackles provide a wide bow section that accepts loads from multiple directions, making them a standard rigging and lifting component across trade, industrial, and field service applications. The screw pin design allows the connector to be manually inserted and removed without tooling, supporting temporary or frequently changed rigging setups. The galvanized finish provides corrosion resistance suited for outdoor and moderate marine exposure. At 0.63 pounds, this is a compact, single-unit shackle appropriate for light-duty to medium-duty connections.

This shackle is used wherever a secure, removable loop or link connection is needed: rigging slings to lifting points, securing tie-down chains, connecting wire rope assemblies, or anchoring safety lanyards and load lines on job sites. Common installers include riggers, maintenance mechanics, electrical and utility linemen, and general contractors. The single-unit package suits spot replacement or tool-crib restocking.

Key Features

• Anchor-style bow accepts multi-directional loading
• Screw pin closure allows tool-free installation and removal
• Alloy steel construction for strength-to-weight performance
• Galvanized finish resists corrosion in outdoor environments
• Compact form factor at 0.63 pounds for easy handling and transport

Compatibility

Designed as a standard-style screw pin anchor shackle for use with wire rope, chain, slings, and rigging hardware that accepts an anchor bow shackle connection.

Installation Notes

Installation is performed by qualified riggers or mechanics following applicable lifting and rigging safety standards. Inspect the shackle body, pin threads, and galvanized coating for damage before each use. Thread the screw pin fully until the shoulder seats against the bow, then back off no more than one quarter turn to align the pin hole if mousing is required. Never side-load a screw pin shackle beyond the rated working load limit marked on the body.
