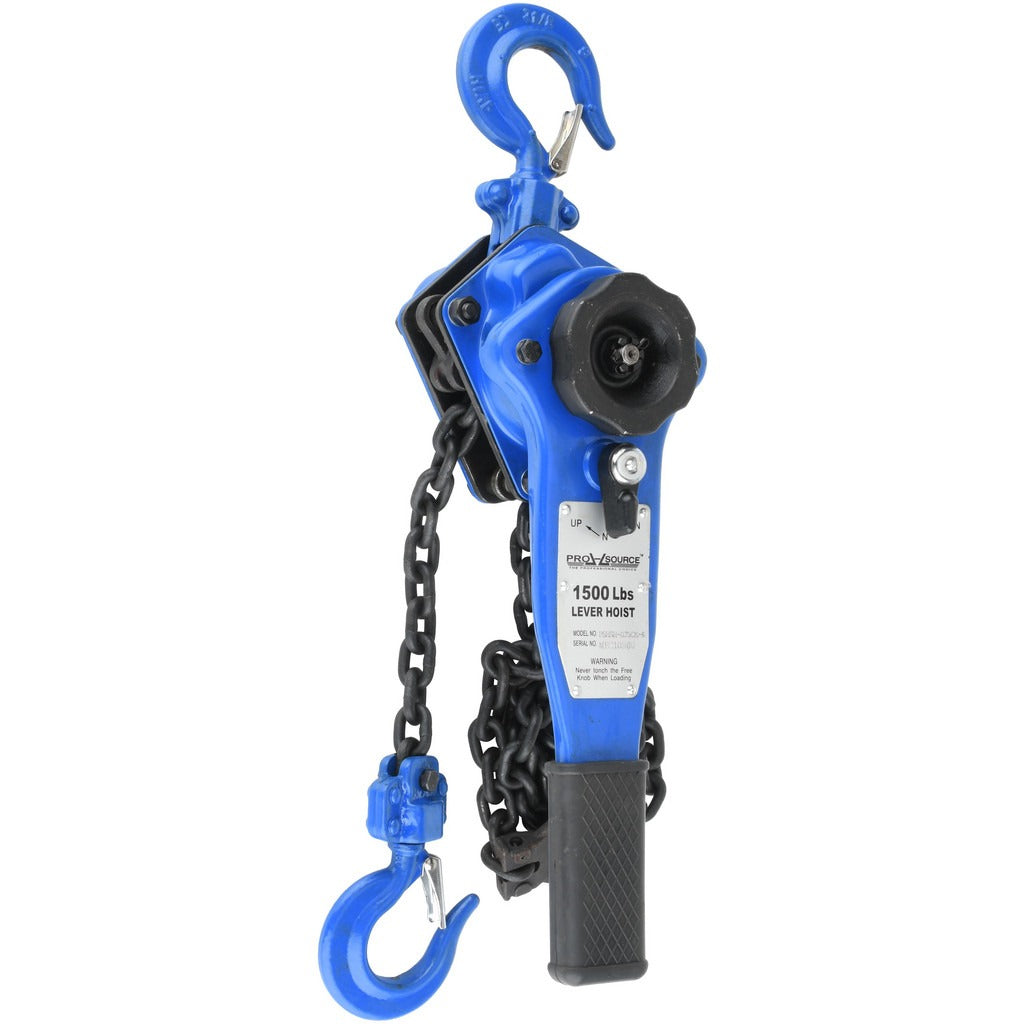

Pro-source PSHSH-0.75CK-5 Manual Lever Hoist 1500 Lb

Product Description

The PRO-SOURCE PSHSH-0.75CK-5 is a manual lever hoist rated for 1500 pounds of lifting capacity with a 5-foot lift height. It operates via a hand lever requiring 33 pounds of lever force to move the load, making it suitable for controlled lifting, pulling, and positioning tasks in industrial, construction, and maintenance environments. The unit ships as a single-chain configuration and weighs 15.4 pounds. Maintenance technicians, millwrights, riggers, and general contractors rely on lever hoists like this one for precise load control without the need for electrical power or compressed air.

This lever hoist is designed for applications where portable, manual lifting is required in tight or remote spaces. Typical uses include machinery positioning, equipment installation, pipe and structural steel alignment, and load tensioning in facilities maintenance, manufacturing, and field service work. The 12.4-inch minimum headroom requirement makes it practical for installations where overhead clearance is limited. With a compact footprint measuring 5.8 inches in length, 4.9 inches in width, and 3.4 inches in height, it stores and transports easily between job sites.

Key Features

• 1500 lb rated lifting capacity suitable for medium-duty rigging and positioning tasks
• 5-foot lift height on a single chain for versatile vertical reach
• 33 lb lever operating force for controlled, low-effort load management
• Minimum headroom of 12.4 inches allows use in confined overhead spaces
• Compact dimensions and 15.4 lb unit weight for portable field use
• Single-chain configuration for straightforward setup and operation

Compatibility

Designed as an OEM-style replacement or direct-use manual lever hoist for general rigging, lifting, and load-positioning applications across industrial and construction trades.

Installation Notes

Lever hoists must be installed and operated by qualified riggers or maintenance professionals familiar with applicable ASME B30.21 standards for lever hoists. Always verify that the overhead anchor point, beam, or trolley is rated for the intended load before attaching the hoist. Inspect the hook latch, chain, and brake mechanism before each use and remove the hoist from service if any wear, deformation, or damage is found. Never exceed the rated working load limit marked on the hoist body.
